Axiom Supply SPECIAL FLANGE (8x6.5 conversion) Wheel Bearing Assembly - 2005+ Ford F-Series

Axiom Supply GM Pattern Hybrid Wheel Bearing & Hub Assembly – Ford Dana 60 (2005+)

Finally—a true solution for running 8x6.5” (8x165.1) wheels on a Ford Dana 60 without cutting corners.

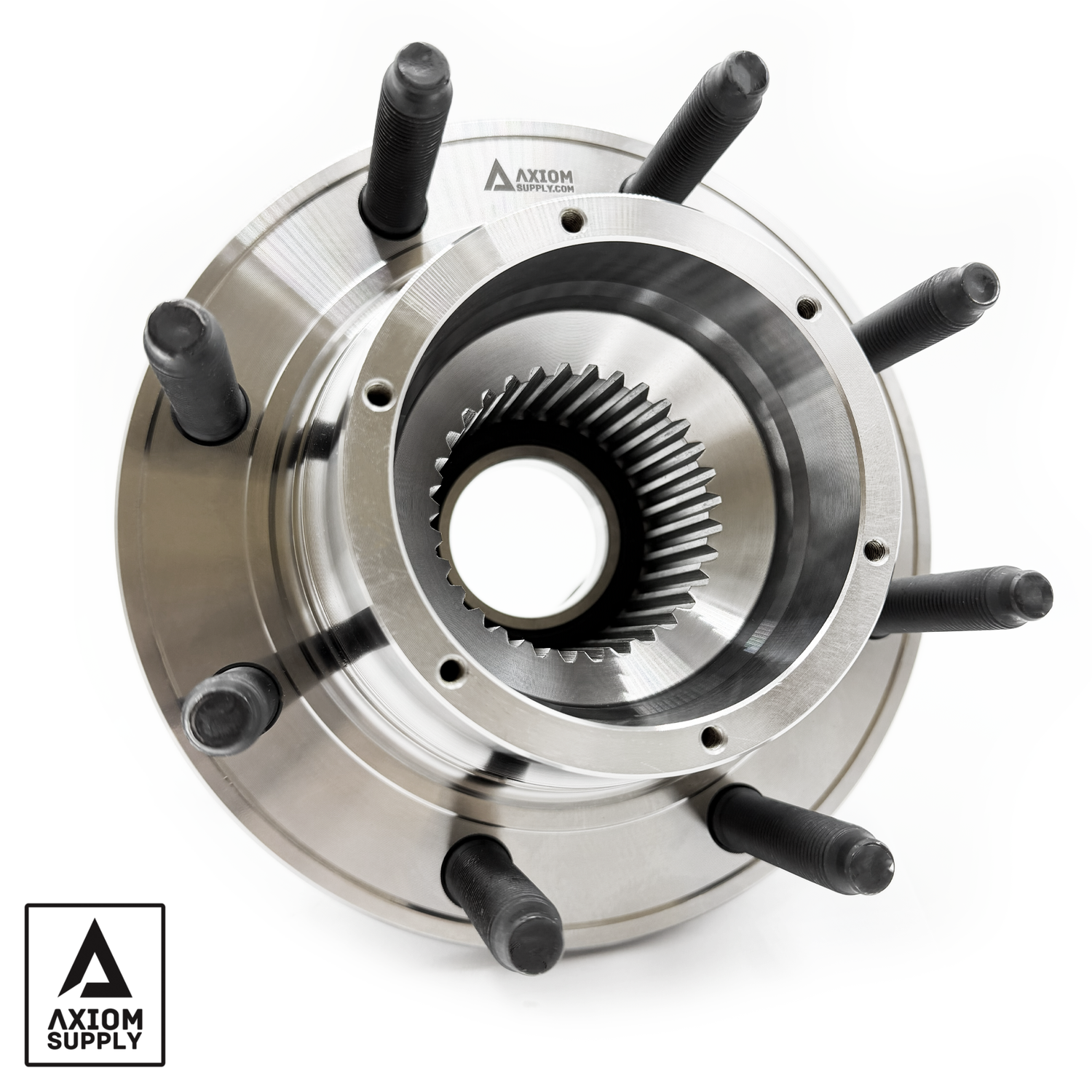

This Axiom Supply Hybrid Hub Assembly features a genuine 8x6.5-style hub flange integrated into a Ford Dana 60 unit bearing housing, giving you a true bolt-on 8x6.5 lug pattern—no redrilling, no machining, no compromises.

Built specifically for serious builders, this is the cleanest and strongest way to run 8x6.5 -pattern wheels on a Super Duty axle.

🔥 Key Features

• Lug Pattern – 8x6.5” (8x165.1)
  No drilling. No machining. No adapters.

• M14-1.5 Fine Thread Studs

• Hybrid Hub Design
  Ford flange integrated into a Ford Dana 60 unit bearing housing

• Fits 2005+ Ford Dana 60 Front Axles

• Precision Tapered Roller Bearings
  High-performance grease for smooth, maintenance-free operation

• Heavy-Duty Hub Construction
  Reduces hub-face deflection under load

• Premium Grade 10.9 Studs
  Cold-formed and zinc-plated for maximum strength and corrosion resistance

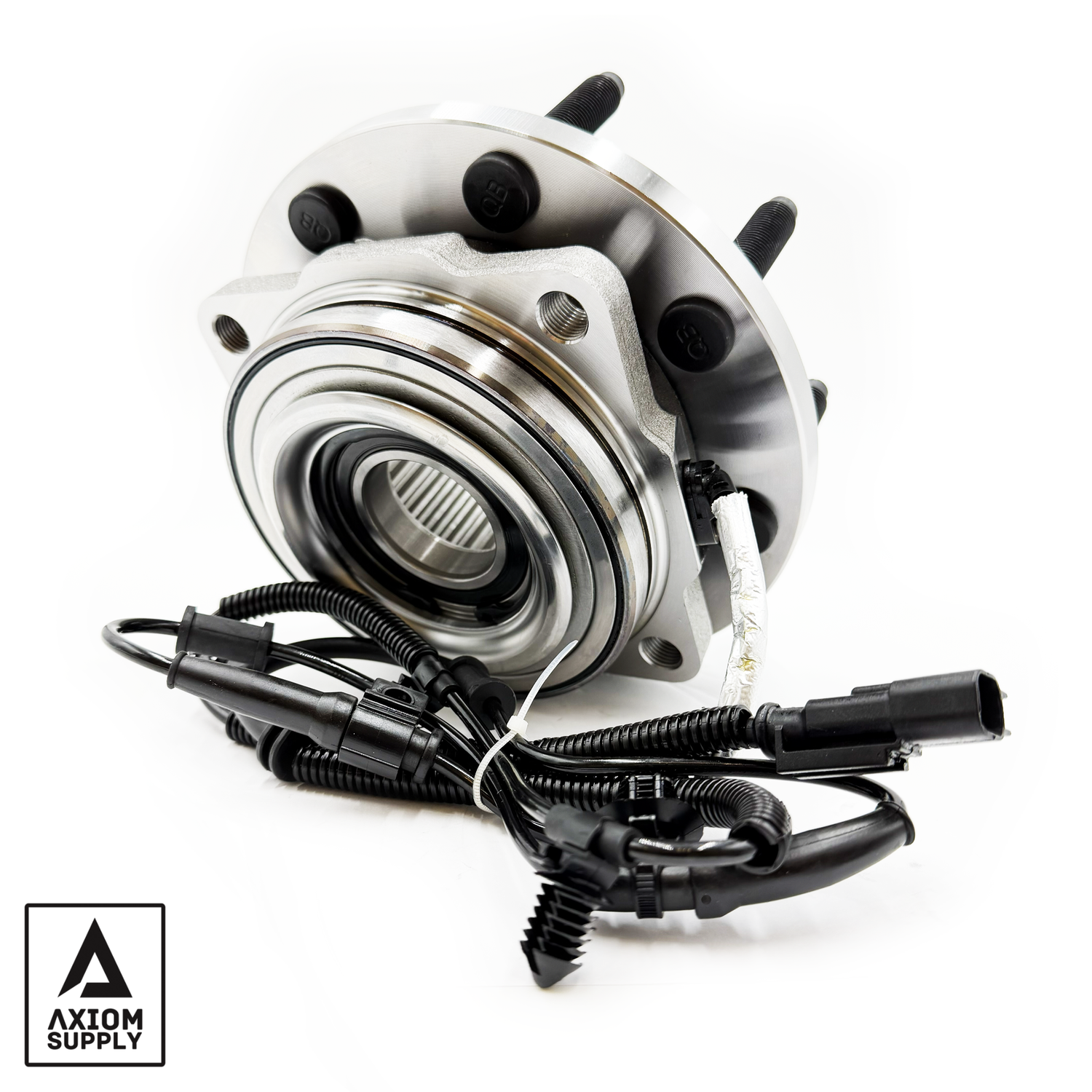

• Integrated ABS Sensor
  Maintains accurate signal in harsh conditions

• Complete Bolt-In Assembly
  Fits left or right side with no modifications required

🛠️ Why This Hub Matters

Most 8x6.5 pattern conversions involve:

• Redrilling factory hubs

• Machining existing components

• Running wheel adapters

All of which introduce potential weak points.

This assembly eliminates those issues with a purpose-built design that delivers:

• Stronger hub integrity

• Cleaner installation

• True bolt-on compatibility

• Long-term reliability under load

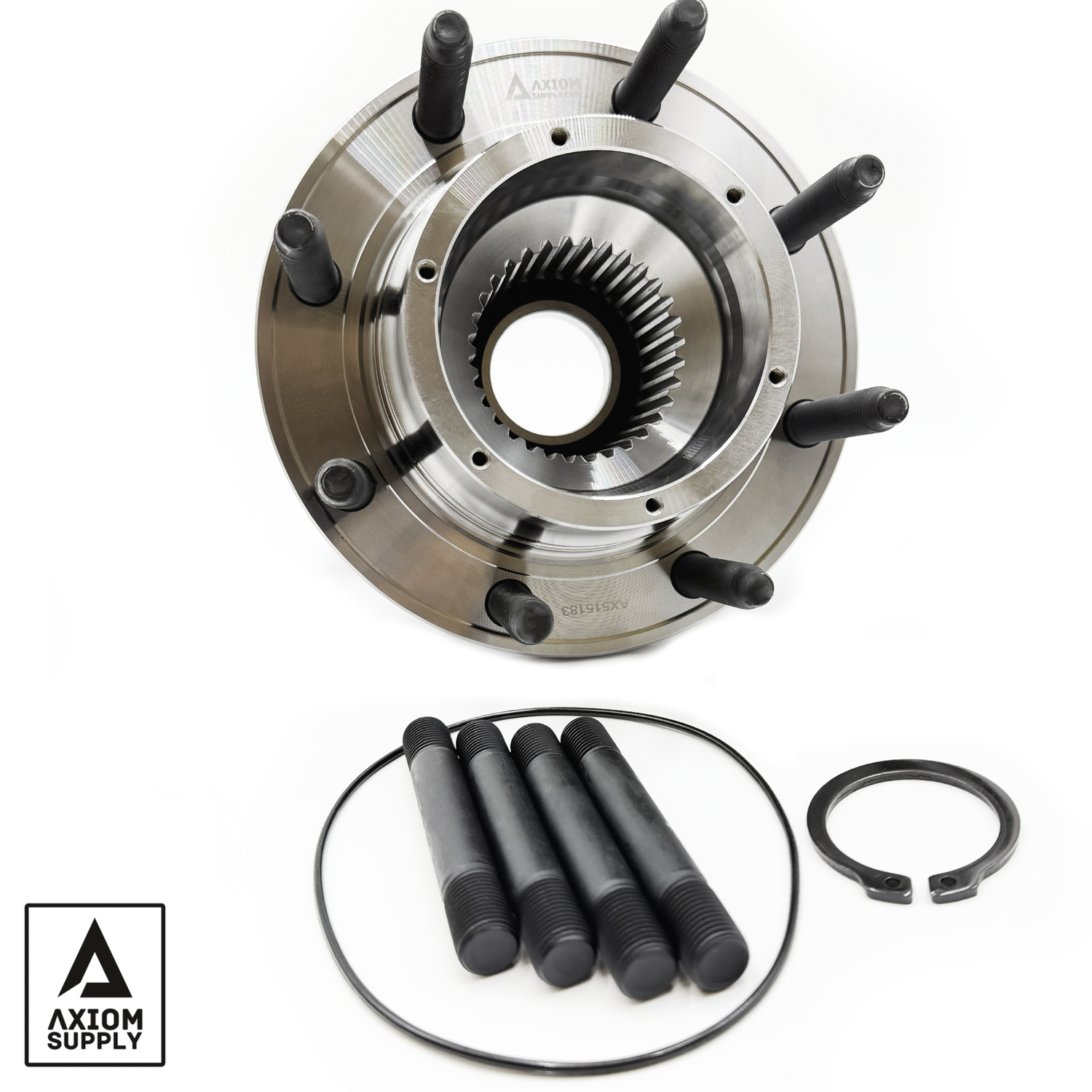

📦 What’s Included

• (1) Wheel Bearing & Hub Assembly with integrated ABS wire

• (4) Mounting bolts

• (1) O-ring

• (1) Retainer ring

⏱️ Installation

• Direct bolt-in replacement

• Fits left or right side

• Typical install time: ~2 hours

• No special modifications required

🔧 Torque Specifications

Hub Nut Procedure:

1. While rotating hub, tighten to 30 ft-lbs (40 Nm)

2. Loosen 2 full turns

3. Retighten while rotating to 17–24 ft-lbs (22–34 Nm)

4. Back off 175°

5. Final torque to 17 ft-lbs

• Spindle Bolts (4): 133 lb-ft

• Caliper Bolts (2): 166 lb-ft

🛡️ Axiom No-Nonsense Lifetime Warranty

Backed by a lifetime warranty to the original purchaser against:

• Manufacturer defects

• Premature wear

• Breakage

Push it to the limit—if it fails, they’ll make it right.

If you’re building a serious truck or axle swap and want a true 8x6.5 bolt pattern without compromise, this Axiom Supply Hybrid Hub Assembly is the cleanest, strongest solution available.
