Axiom Supply Lifetime Warranty Wheel Bearing Assembly - Fine Thread - 1999-2005 Ford F-Series

Axiom Supply Front Wheel Bearing & Hub Assembly – 1999–2004 Ford Super Duty & 2000–2005 Excursion (Fine Thread)

When your front hub starts to fail, you’ll feel it—loose steering, noise, vibration, and reduced braking stability. The Axiom Supply Wheel Bearing & Hub Assembly is built to restore confidence with a stronger, more precise design made for real-world truck use.

Engineered specifically for 1999–2004 Super Duty and 2000–2005 Excursion models with fine thread studs, this complete bolt-in assembly improves durability, reduces deflection under load, and keeps your front end tight—even with towing, oversized tires, or lifted setups.

🔥 Key Features

• Fits 1999–2004 Ford F250/F350 4WD (Fine Thread Studs Only)

• Fits 2000–2005 Ford Excursion 4WD

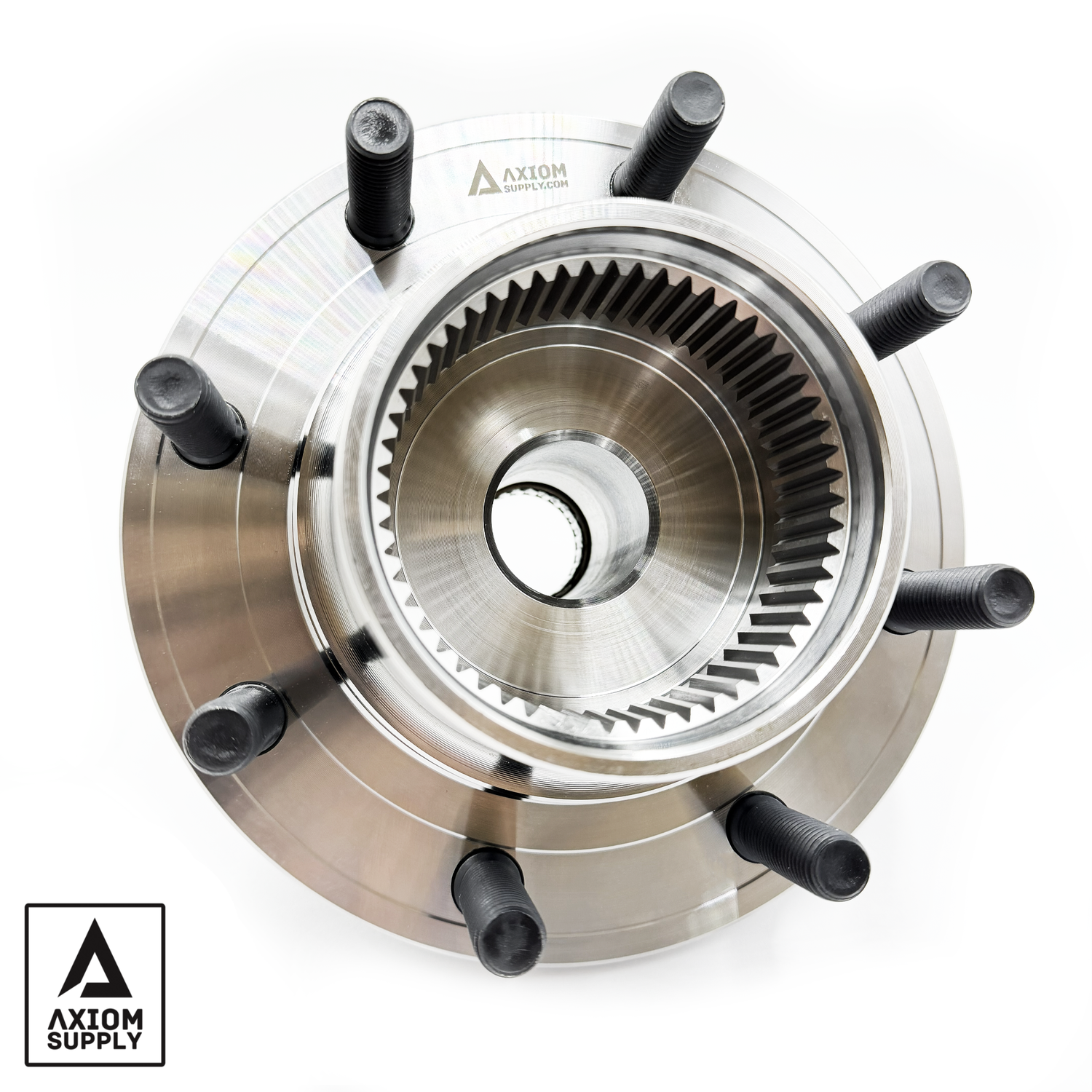

• 8x M14-1.5 Fine Thread Stud Configuration

• Precision Tapered Roller Bearings
  Pre-loaded with high-performance grease for smooth, maintenance-free operation

• Heavy-Duty Hub Design
  Reduces hub-face deflection under load for tighter steering response

• Premium Grade 10.9 Wheel Studs
  Cold-formed and zinc-plated for maximum strength and corrosion resistance

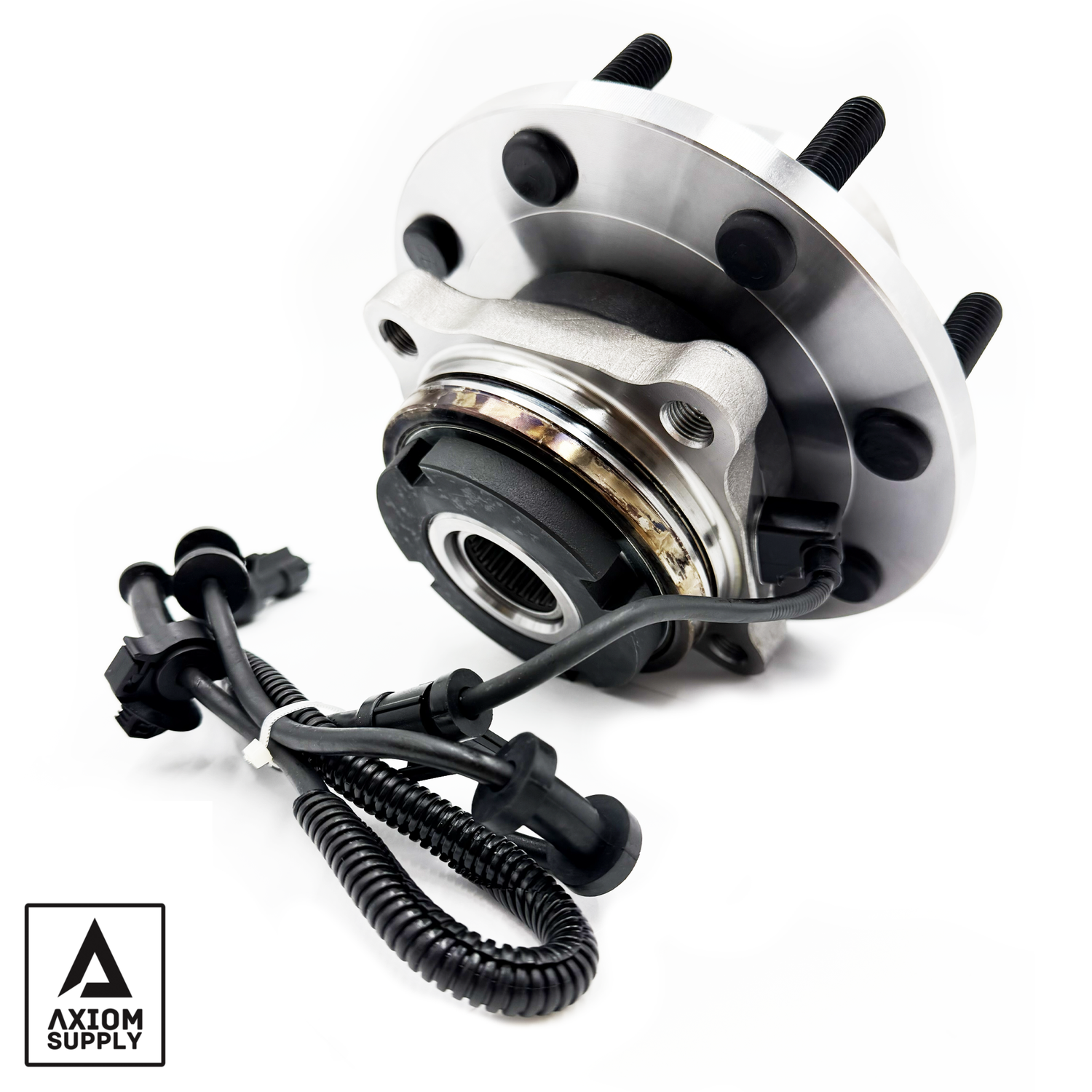

• Integrated ABS Sensor
  Maintains accurate signal in heat, mud, and moisture

• Complete Bolt-In Assembly
  Fits left or right side with no modifications required

🛠️ Why Upgrade Your Hub Assembly?

Worn hubs can cause:

• Steering wander or looseness

• Wheel noise or vibration

• Reduced braking performance

• Premature wear with larger tires

This upgraded assembly is designed to handle:

• Heavy towing

• Lifted trucks

• Oversized wheel and tire setups

📦 What’s Included

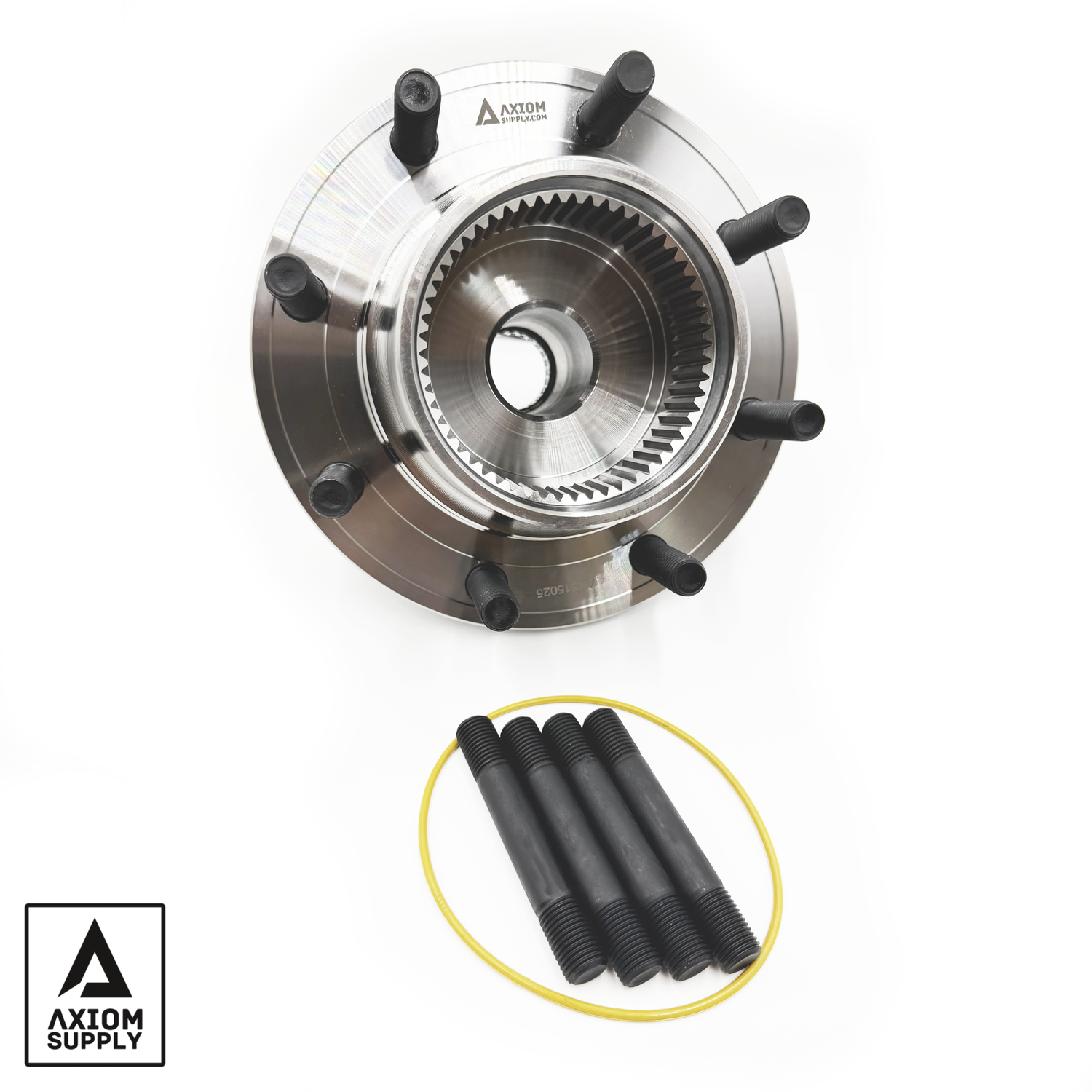

• (1) Wheel Bearing & Hub Assembly with integrated ABS wire

• (4) Mounting bolts

• (1) O-ring

⏱️ Installation

• Direct bolt-in replacement

• Typical install time: ~2 hours

• No special modifications required

🔧 Torque Specifications

Hub Nut Procedure:

1. While rotating the hub, tighten to 30 ft-lbs (40 Nm)

2. Loosen 2 full turns

3. Retighten while rotating to 17–24 ft-lbs (22–34 Nm)

4. Back off 175°

5. Final tighten to 17 ft-lbs

• Spindle Bolts (4): 133 lb-ft

• Caliper Bolts (2): 166 lb-ft

🔁 Interchange Cross Reference

Compatible with:

Timken SP580205
Motorcraft 3C3Z-1104-A / HUB111 / HUB223
Moog 515056
SKF BR930438
FAG 102188
Dorman 951-826
NAPA PBR930438
GMB 725-0166
Mevotech H515056
Carquest 94-248391
Centric 40265002
Durago 29515056
Autopart International 1411-248391
GSP 116056
Axiom AX515056

⚠️ Fitment Notes

• Fine thread studs ONLY (M14-1.5)

• Verify your truck’s stud type before ordering

🛡️ Axiom No-Nonsense Lifetime Warranty

Backed by a lifetime warranty to the original purchaser against:

• Manufacturer defects

• Premature wear

• Breakage

Use it hard—if it fails, they’ll make it right.

If you want a hub assembly that holds up under heavy use and keeps your Super Duty or Excursion driving tight and predictable, the Axiom Supply Bearing Assembly delivers the durability and performance your truck demands.
