Axle Swap Bottom Mount Coil Leveling Spacer Ford Super Duty F250-F350 4WD 2005-2026

Fitment

This heavy-duty bottom mount coil spacer kit is designed to fit a wide range of trucks, including 2005–2026 Ford Super Duty F250–F350 4WD.

Also a great option for OBS and earlier trucks running 2005+ axle swaps, where precise ride height and proper suspension geometry are critical.

• Provides an exact 1.5" increase in ride height by raising the coil spring base vertically off the axle housing
• SOLD AS A PAIR — Bottom-Mount Coil Spacer Kit Only
• This is not a full leveling kit

Features

• Premium Grade 10.9 hardware for maximum strength
• Hard-anodized black finish for superior corrosion resistance
• Precision billet-machined for exact fitment and long-term durability
• Direct bolt-on installation — no cutting, welding, or modifications required
• Ideal for fine-tuning height on leveled trucks and axle swap builds

Description

The Axiom Supply Bottom Mount Coil Spacer Kit is the cleanest and most precise way to dial in front ride height on your 2005–2026 Super Duty—or any properly set up 2005+ axle swap truck. This system allows you to add lift without compromising factory ride quality, load capacity, or suspension performance.

Unlike top spacers that can preload the spring and alter ride characteristics, these billet spacers mount directly beneath the OEM lower coil seat on the axle. This keeps the coil operating exactly as intended while increasing ride height in a true vertical plane—maintaining proper geometry and consistent performance.

This makes them especially valuable in axle swap applications, where achieving the correct stance and balance often requires fine adjustments beyond standard lift kits.

Whether you're correcting driver-side lean, matching rear lift, clearing larger tires, or compensating for added front-end weight (bumpers, winches, etc.), this kit delivers a simple, effective, and durable solution.

Built from high-quality billet material and finished with a hard-anodized coating, these spacers are made to withstand real-world abuse—daily driving, towing, and off-road use included.

Why Axiom Supply Chooses This Spacer System

At Axiom Supply, we prioritize parts that perform as well as they look. This system stands out because:

• Maintains OEM spring performance — no added harshness, no spring fatigue, no compromise
• Delivers exact height control — perfect for dialing in stance on custom or swapped setups
• Preserves proper suspension geometry — no overloading or misalignment of components
• Handles real use — built for work trucks, tow rigs, and off-road abuse
• Installs cleanly and reversibly — no permanent modifications required

This isn’t just a lift spacer—it’s a precision tool for dialing in your suspension the right way.

Includes

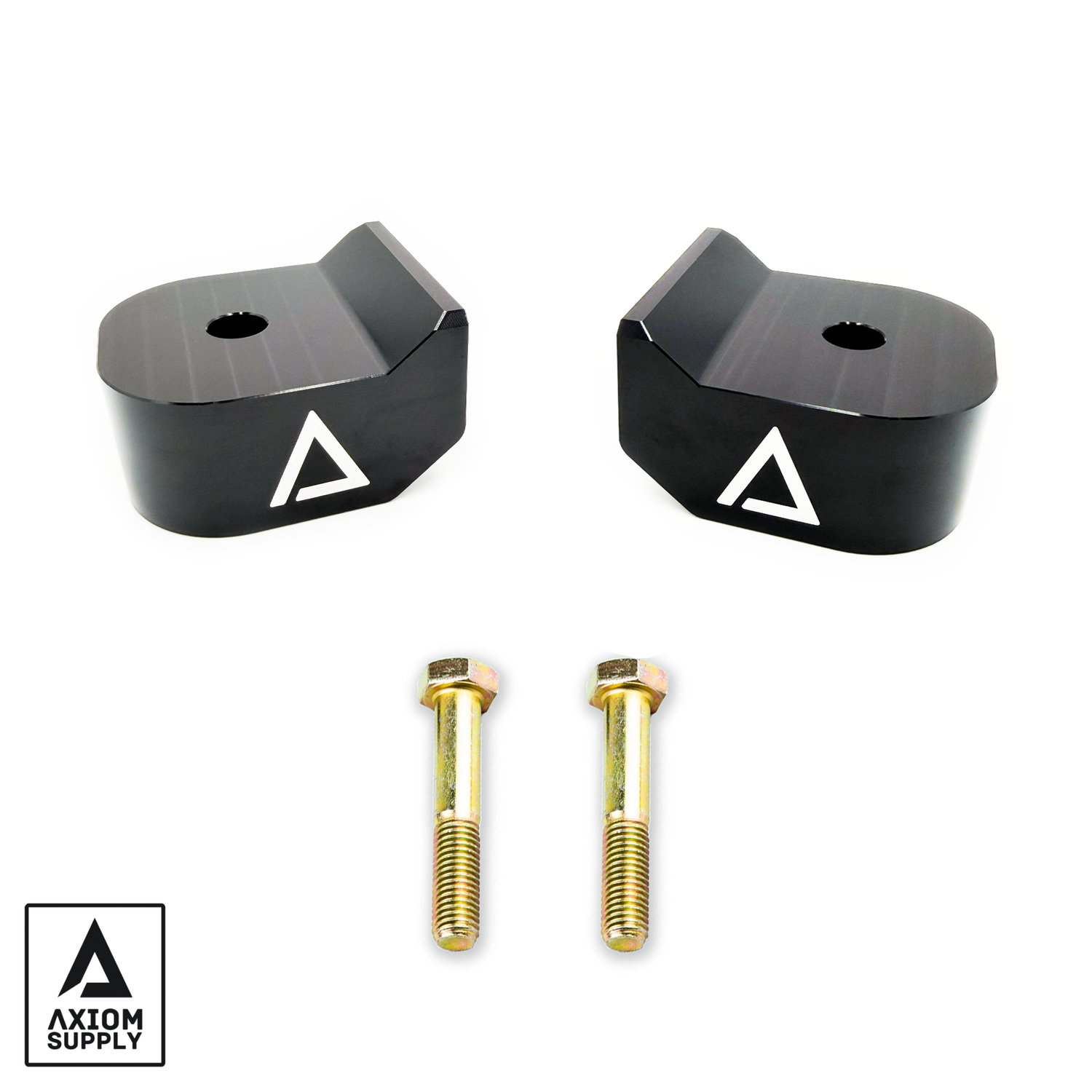

• (2) 1.5" Coil Spacers (Left & Right)
• (2) Mounting Bolts

Torque Specifications

• Mounting Bolts: 117 lb-ft

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we’ll make it right.
