AudioControl PNW-1 | 1" 100W RMS Tweeters 3-Ohm (Pair)
AudioControl PNW-1 | 1" 100W RMS Tweeters 3-Ohm (Pair) is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

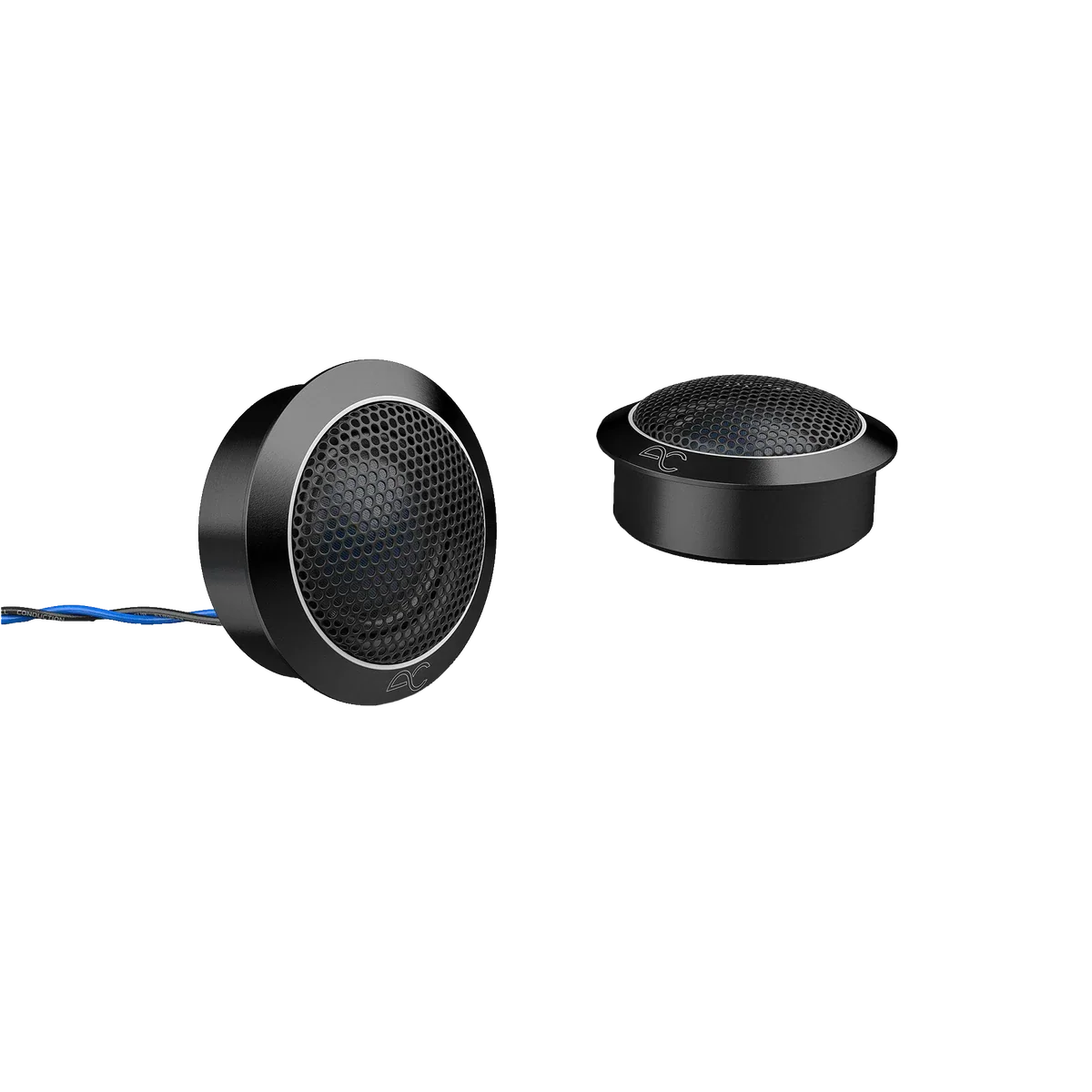

Take your audio experience to the next level with the PNW-1 high-fidelity tweeters from AudioControl! The PNW-1 features a hybrid silk dome tweeter, silk dome diaphragm and aluminum housing so you can experience accurate sound reproduction without distortion.

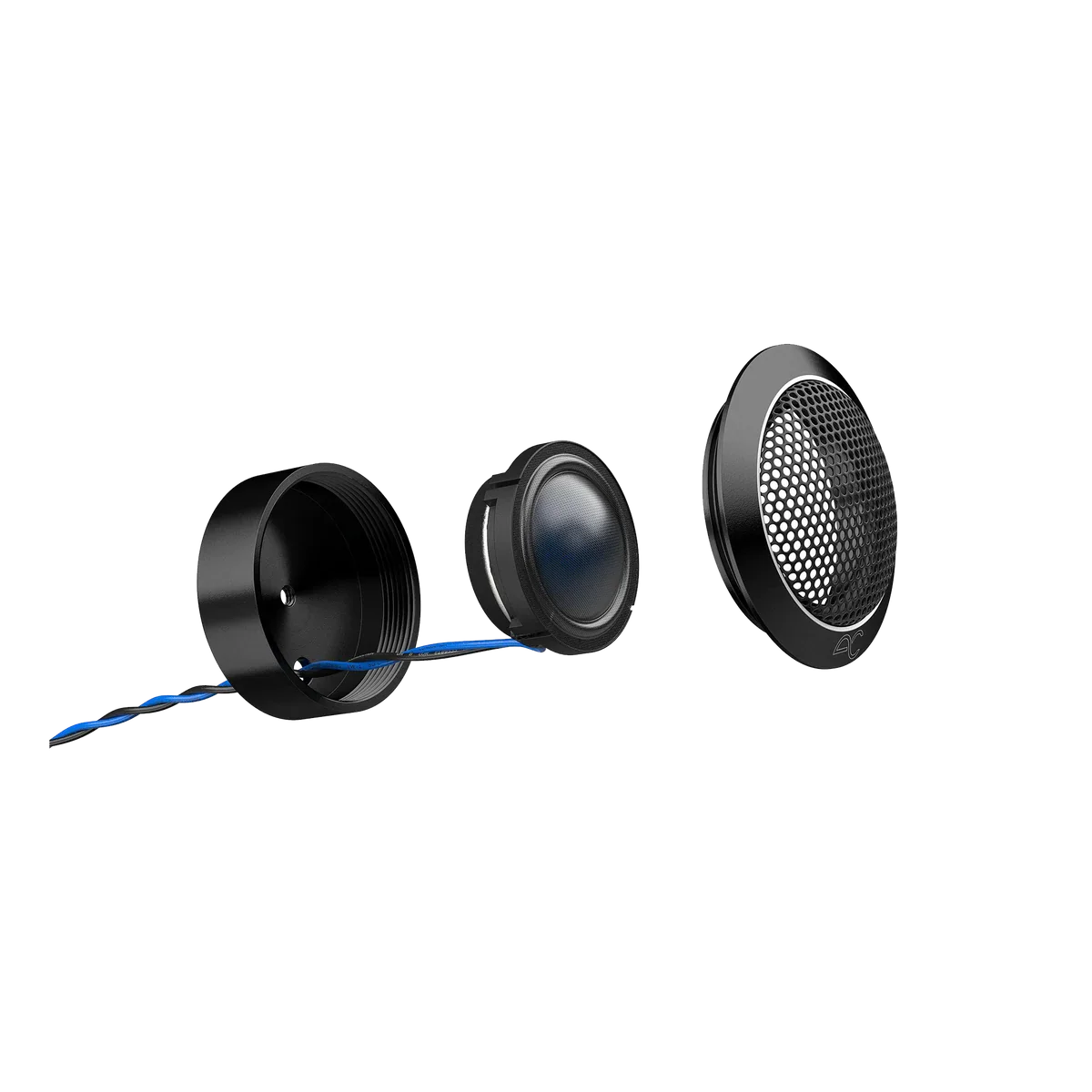

The detachable housing and versatile mounting accessories simplify installation, accommodating various applications seamlessly. The included in-line high-pass filters ensure only the desired frequencies reach the tweeter to maximize your sound and minimize distortion.
Pair PNW-1 tweeters with any of the AudioControl PNW speaker line-up for a truly immersive audio experience!
- The tweeters are designed to provide an immersive audio experience with accurate sound reproduction and minimal distortion.
- Easy installation is facilitated by the detachable housing assembly and multiple mounting accessories, making them suitable for various applications.
- In-line high-pass filters are included to optimize sound by allowing only the desired frequencies to reach the tweeter.
- Compatibility: The tweeters can be paired with any of the AudioControl PNW speaker lineup for a comprehensive audio setup.
FEATURES
- Diaphragm: High-Fidelity silk dome diaphragm for accurate sound reproduction.
- Housing: Precision Machined Aluminum Housing for durability and quality.
- Sonic Damping: Embedded Sonic Damping Pad for improved audio performance.
- Magnet: Neodymium Magnet for enhanced efficiency and compact design.
- Assembly: Detachable assembly for OE (Original Equipment) applications.
- Frequency Response: Rear dampened hybrid silk dome tweeter for extended frequency response.
- Mounting: Multiple mounting accessories included for easy installation.
- Filters: Included in-line high-pass filters to ensure only desired frequencies reach the tweeter, minimizing distortion.
- Umbrella not included
SPECIFICATIONS
DC Resistance (Re). 2.3 Ohms
Power 100W RMS / 125W Max
Nominal Impedance (Z) 3 Ohms
Resonance Freq. (Fs) 1.621 kHz
Mechanical Q Factor (Qms) 6.92
Electrical Q Factor (Qes) 2.3091
Total Q Factor (Qts) 1.7314
Frequency Response 1k-20kHz
Tweeter Voice Coil Diameter 25 mm
IN THE BOX: (2) PNW-1, Manual, Warranty
IN-LINE CROSSOVER SPECIFICATIONS
Crossover Type 1st Order Butterworth
Crossover Frequency 3.5 kHz HP
Slope (Octave) -6 dB
DIMENSIONS
- Overall Diameter (w Grille): 2.13 in/ 54 mm
- Cut Out Diameter: 1.85 in/ 47 mm
- Mounting Depth: 0.63 in/ 16 mm
