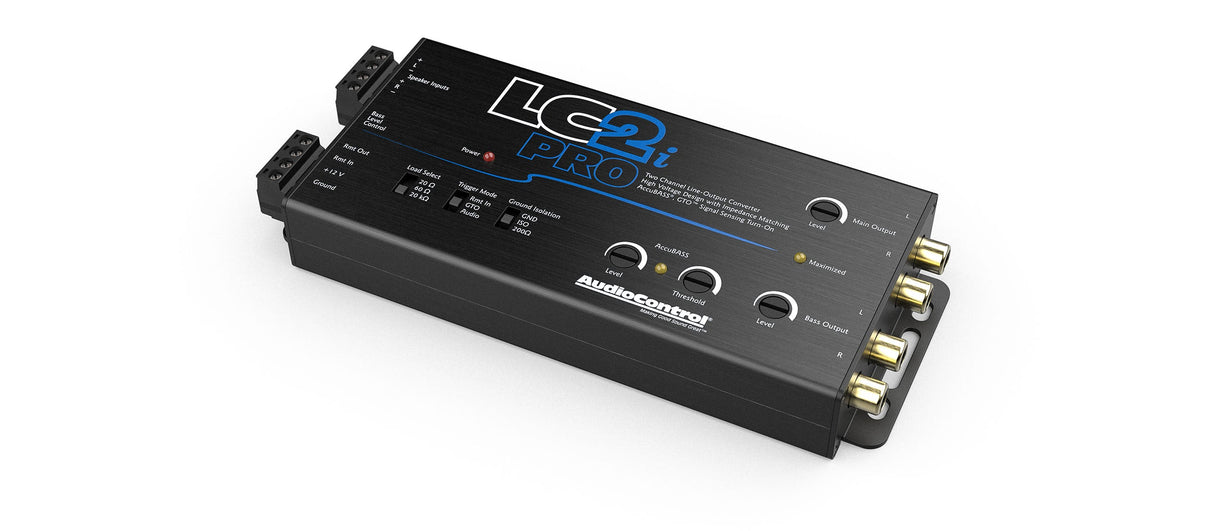

AudioControl LC2i PRO Active 2 Channel Converter with AccuBASS
AudioControl LC2i PRO Active 2 Channel Converter with AccuBASS is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
AudioControl LC2i PRO Active 2 Channel Converter with AccuBASS
AudioControl LC2i PRO Active 2 Channel Converter with AccuBASS is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

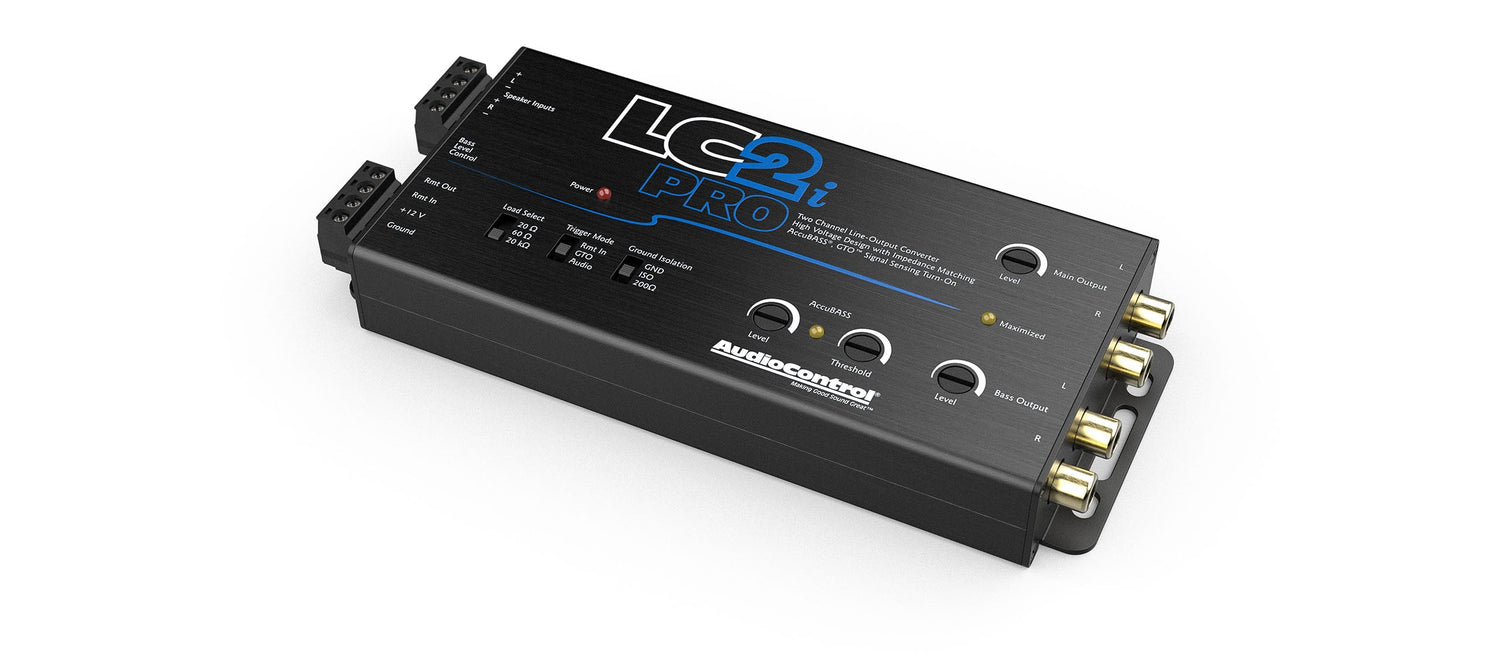

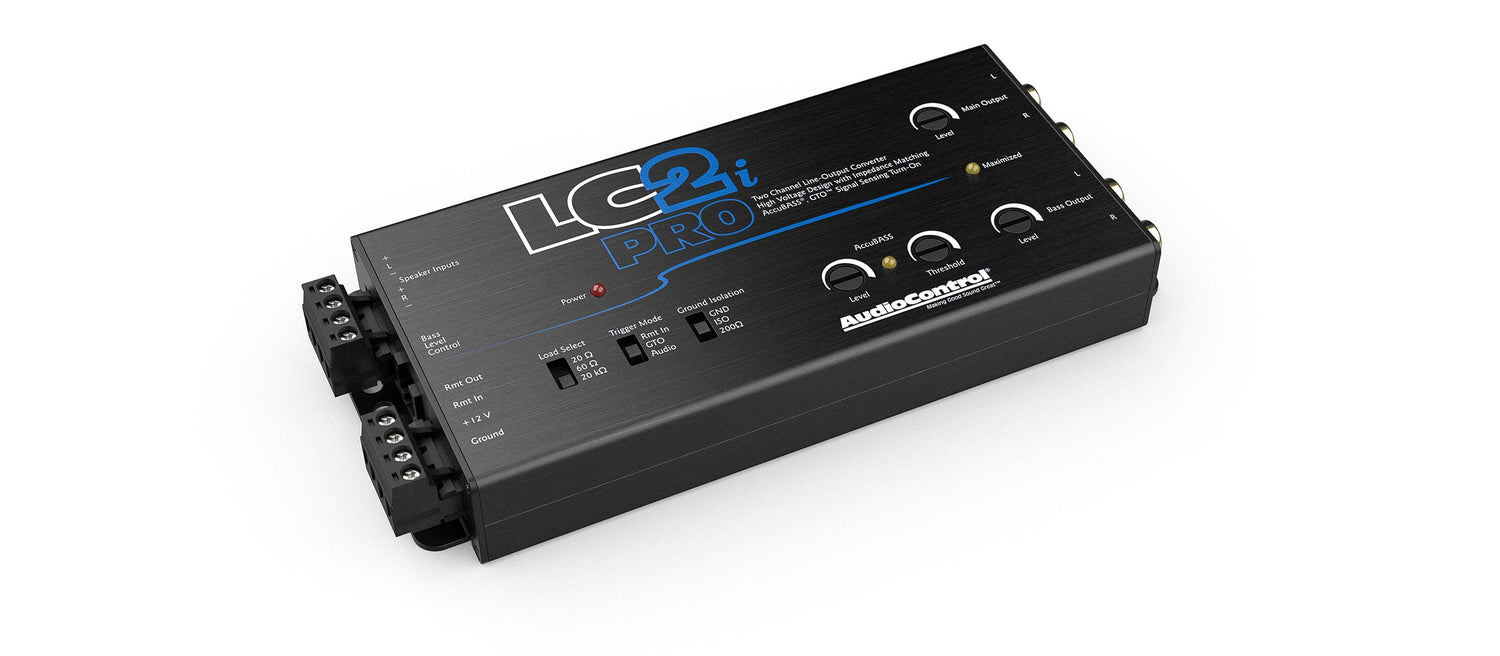

lc2i pro
2 channel line out converter with accubass®
The LC2i PRO join ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol’s patented AccuBASS® and control your sub with the included ACR-1 level control.
features
- Two channels of active speaker level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote inluded
- Compact design

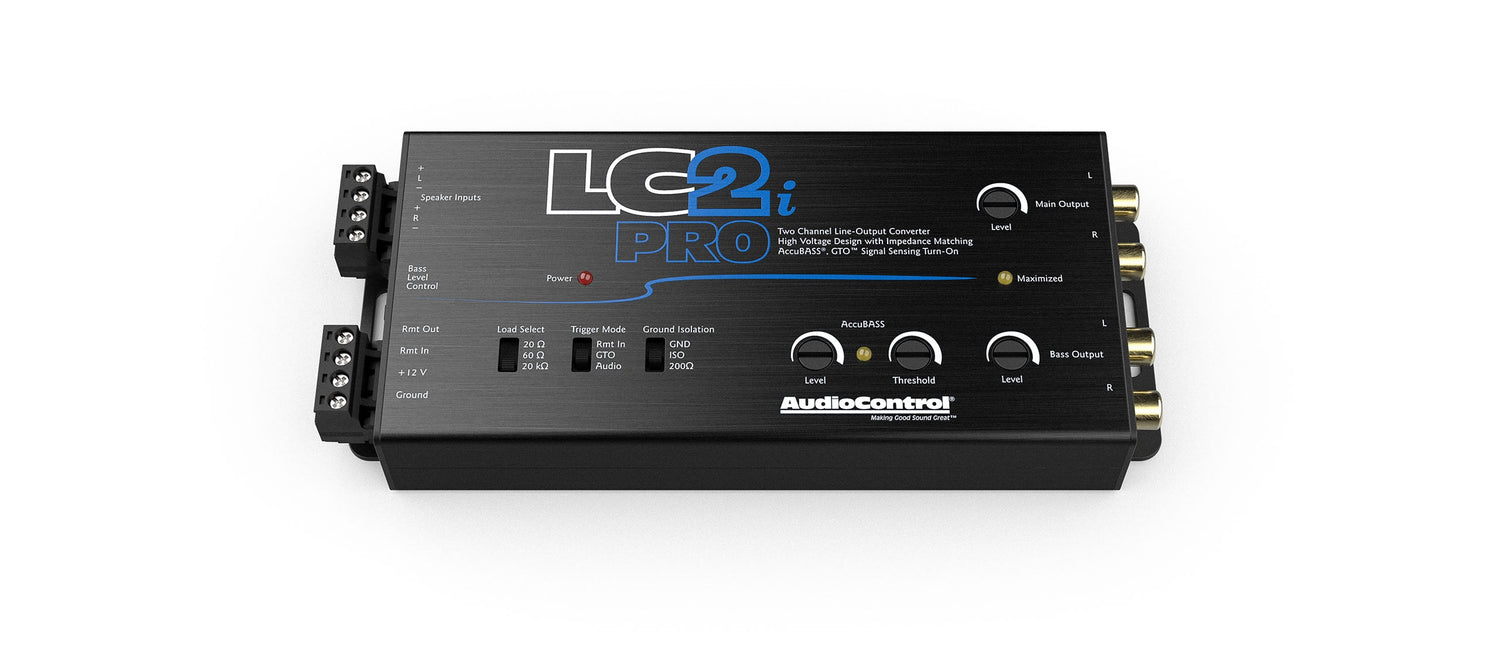

ACCUBASS® STATUS LED

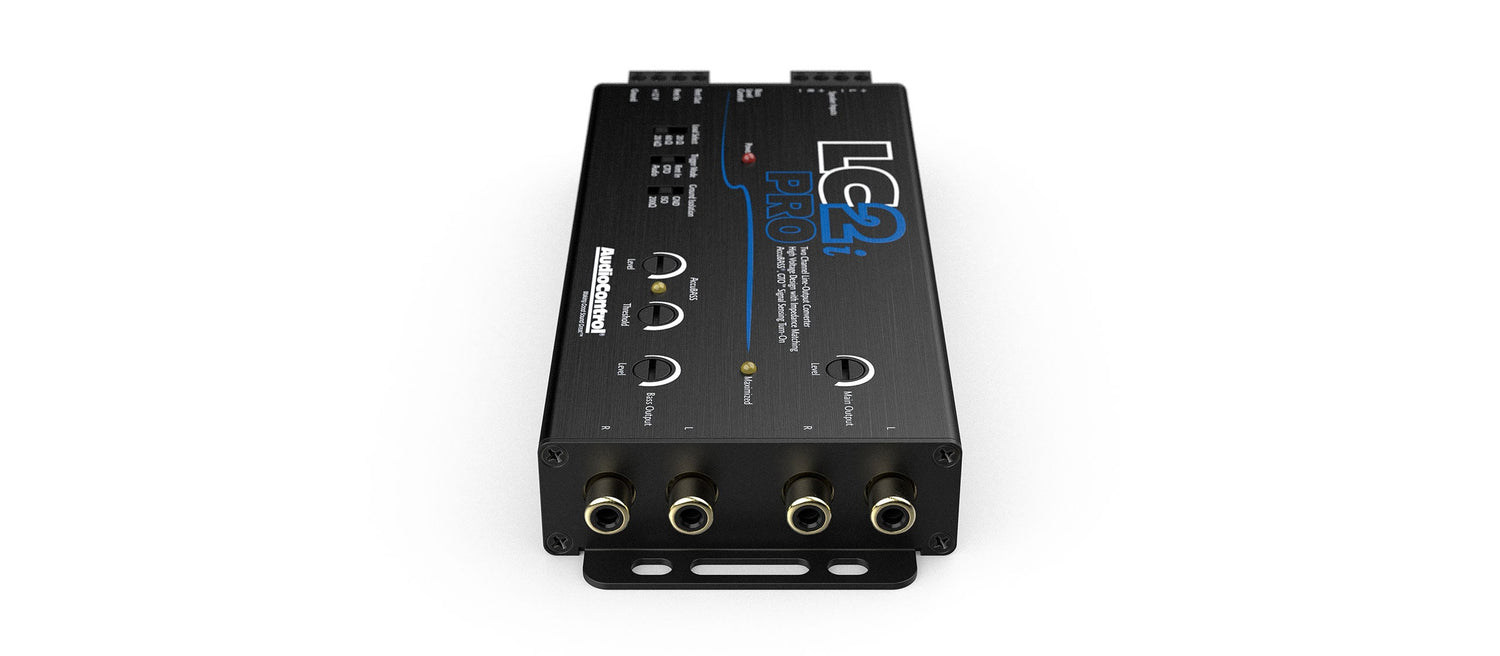

MAIN OUTPUT
VARIABLE BASS OUTPUT (1 KHZ LP)
MAXIMIZED LED
LOAD SELECT SWITCH
TRIGGER MODE SWITCH
specifications

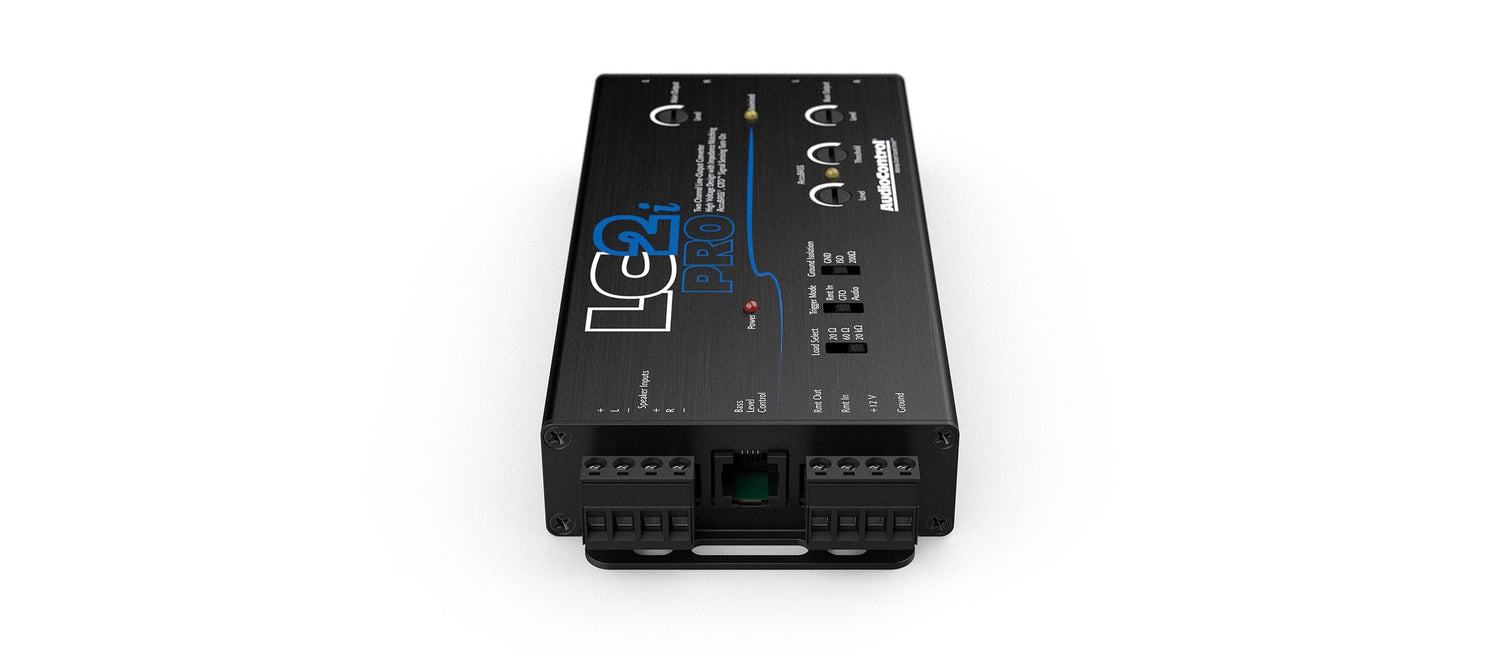

inputs
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
outputs
- Preamp Outputs: 2 (2 channels main, 2 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 12 dB
- Output Impedance: 150Ω
performance
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >110 dB
- Frequency Response: 20 Hz – 50 kHz ±1 dB
control
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
general
- Current Draw: 200 mA
- Recommended Fuse Rating: 1 A
weights & dimensions
- Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors)
- Weight: 0.75 lbs. (0.34 kg)

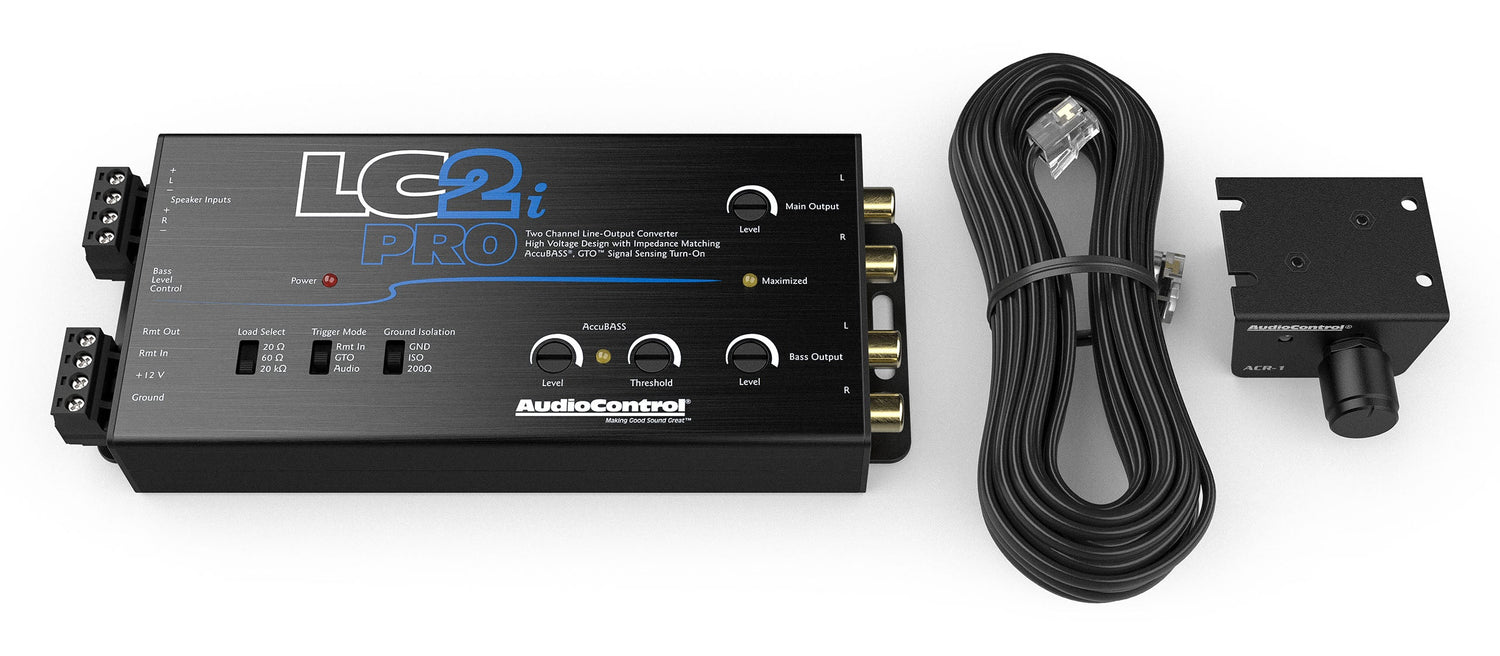

in the box: LC2i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
