AudioControl Epicenter PRO Bass Restoration Processor With Line Driver

THE ORIGINAL DIGITAL BASS RESTORATION PROCESSOR
Building on the legendary bass processing of The EPICENTER, The EPICENTER PRO delivers enhanced control for serious bass enthusiasts. Balanced inputs with a built-in line driver, a switchable pfm subsonic filter, and selectable output voltage offer unmatched system flexibility. The included ACR-4 remote provides easy adjustment of The EPICENTER effect and subwoofer level—right from the driver’s seat.

FEATURES
• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• Powerful Line Driver: Provides an ultra-clean, high-voltage signal, eliminating noise and maximizing the performance potential of your aftermarket amplifiers.
• Selectable Output Voltage: Precisely match the signal output to your amplifier's input stage to achieve maximum clean power and optimal gain structure.
• ParaBASS Controls: Gain surgical control over your bass by adjusting the center frequency, width, and level of the bass boost, perfectly tailoring the low-end to your vehicle's acoustics.
• Selectable Subsonic Filter: Protect your subwoofers from damaging, inaudible ultra-low frequencies while focusing amplifier power on the bass you can actually hear and feel.

SPECIFICATIONS
INPUTS
Maximum Line Level Input: 10Vrms
Line Level Input Impedance: 7kΩ

OUTPUTS
Maximum Output Level (THD1%): 9Vrms, 13V peak
Output Impedance: 150Ω

PERFORMANCE
Total Harmonic Distortion: 0.03%
Signal to Noise: 105 dB
Frequency Response: 10 Hz – 22 kHz ±1 dB
PFM Filter (High Pass): Selectable 24 Hz or Bypass

GENERAL
Power Supply: High Headroom PWM Switching
Current Draw: 300 mA
Recommended Fuse Rating: 1 A

WEIGHTS & DIMENSIONS
Dimensions: 8″L x 5.5″D x 1.2″H
Weight: 1.7 lbs

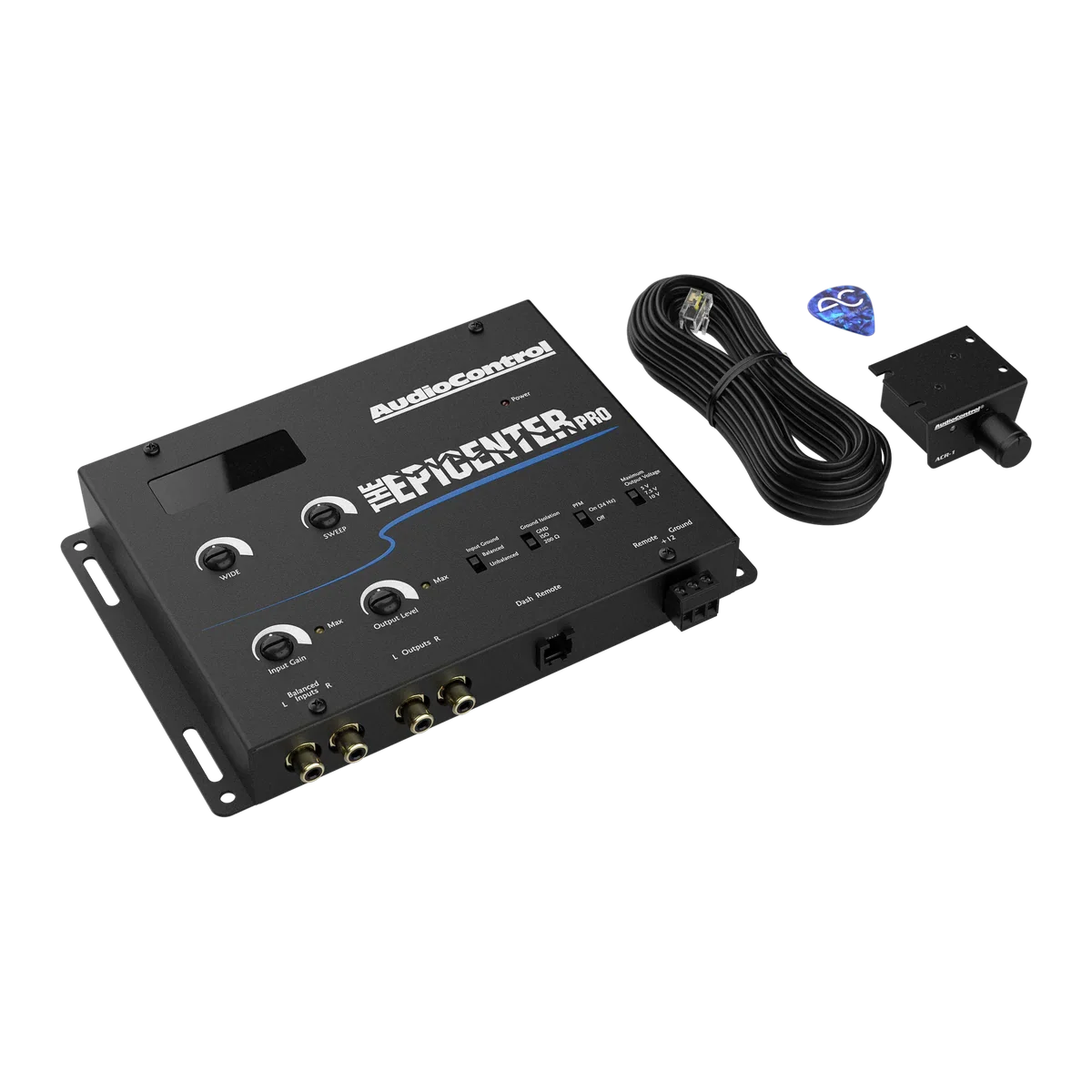

IN THE BOX:The EPICENTER PRO, ACR-4, Remote Cable, User Manual
