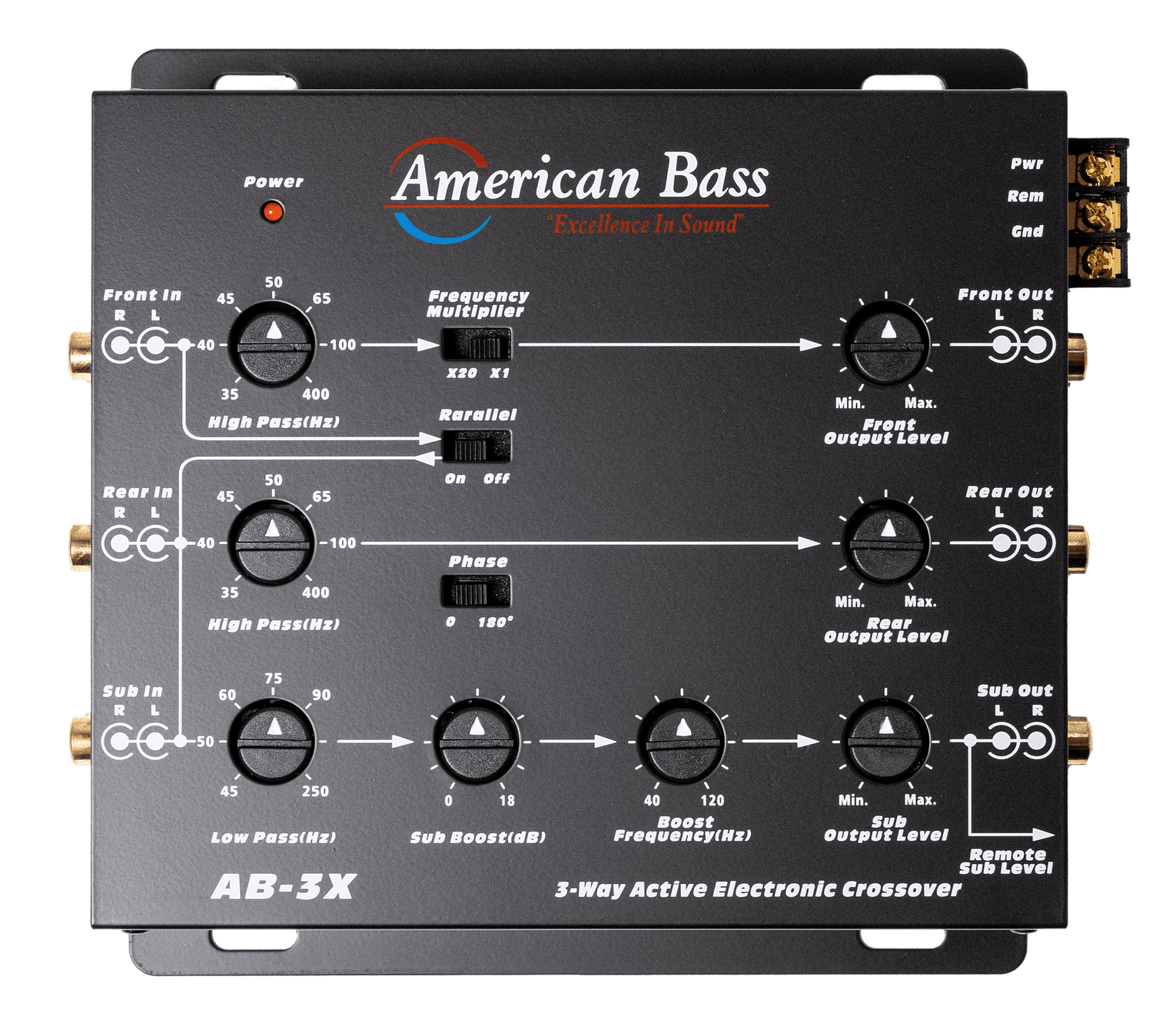

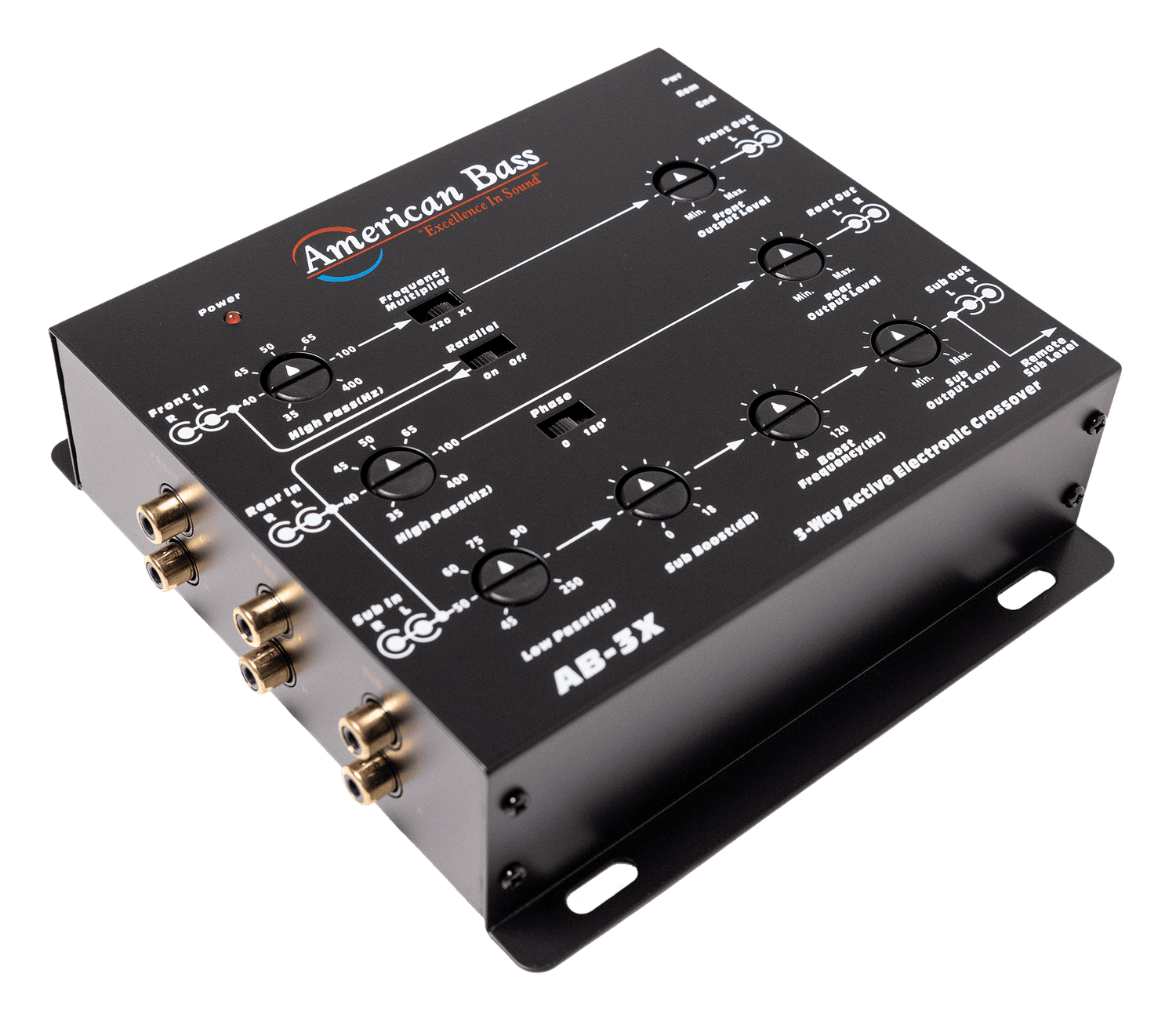

AB-3X Crossover High-Precision Audio Divider
SKU: AB-3X
| FRONT HIGH PASS (x1) | 35Hz-400Hz |
| (x20) | 700Hz-8KHz |
| REAR HIGH PASS | 35Hz-400Hz |
| SUBWOOFER LOW PASS/FREQUENCY | 45Hz-250Hz (-18dB/OCT) |
| OUTPUTS LEVEL | 8V PEAK |
| FREQUENCY RESPONSE | 10-50KHz(-3dB) |
| S/N RATIO | 110dB |
| THD | 0.01% |
| INPUT IMPEDANCE | 20K OHMS |
| OUTPUT IMPEDANCE | LESS THAN 150 OHMS |
| CHANNEL SEPARATION | MORE THAN 70dB |
| VARIABLE SUBSONIC FILTER | ON/OFF WITH -18dB/OCT. AT 40 Hz |
| LOW PASS/HIGHPASS | -18BD/OCT |
| POWER SOURCE | 11-15 VOLTS DC NEGATIVE GROUND |
| MAX OUTPUT VOLTAGE | - |
| PRE GRAPHIC FREQUENCY | - |
| EQUALIZATION RANGE | - |
