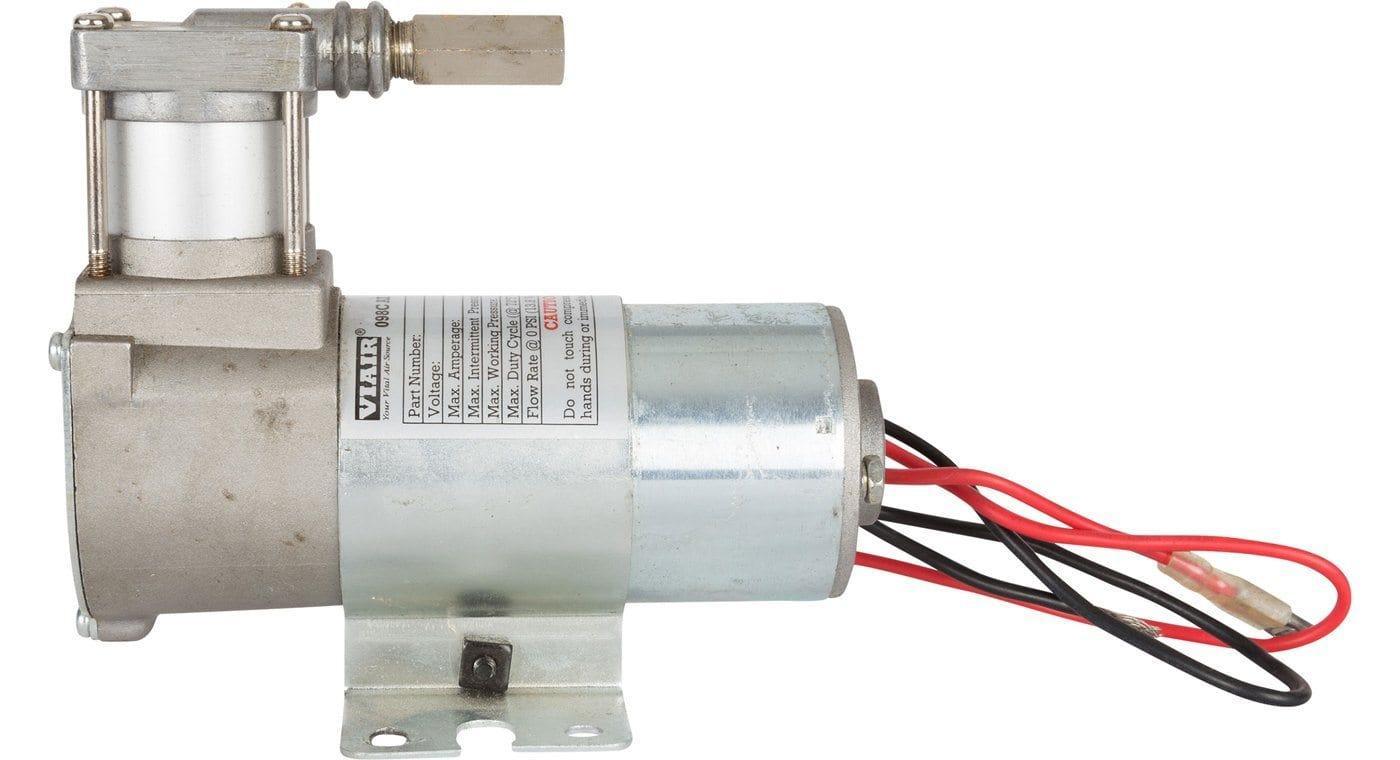

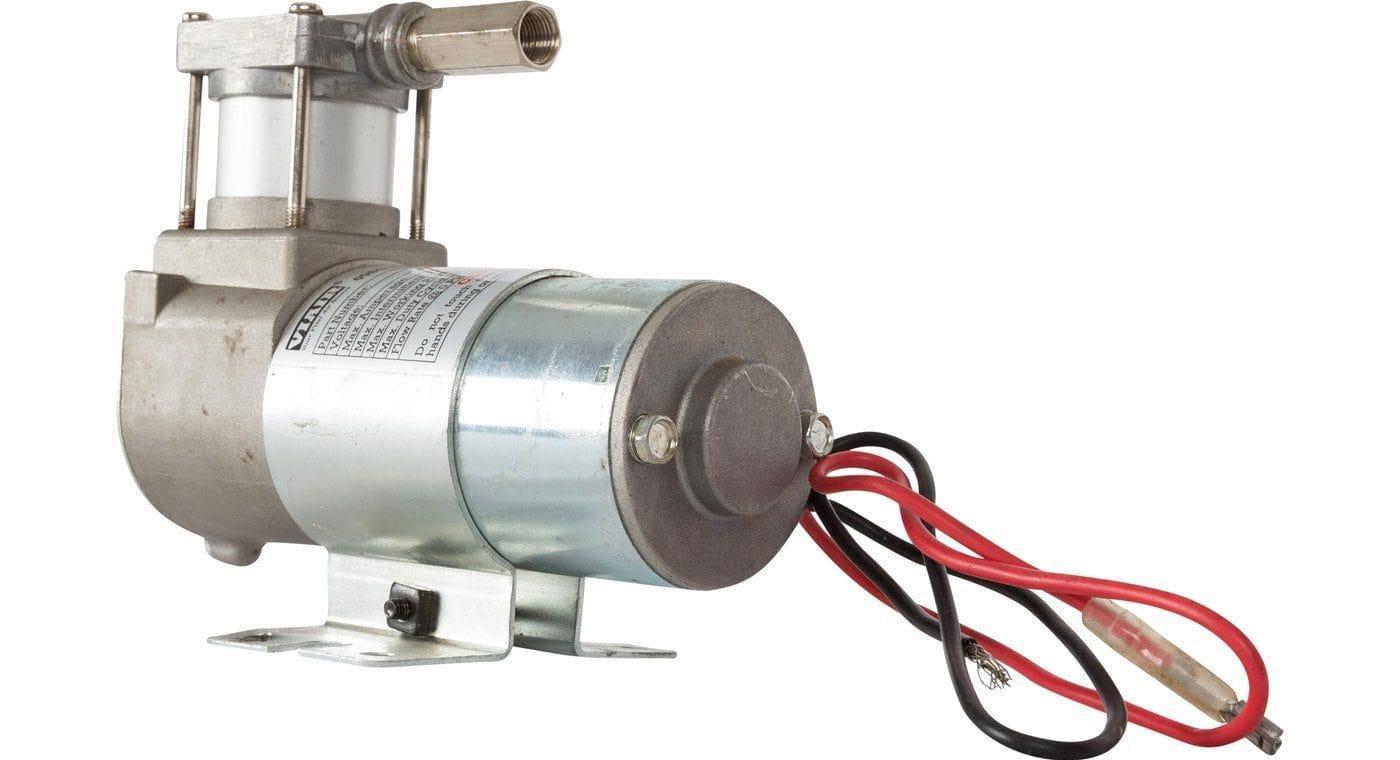

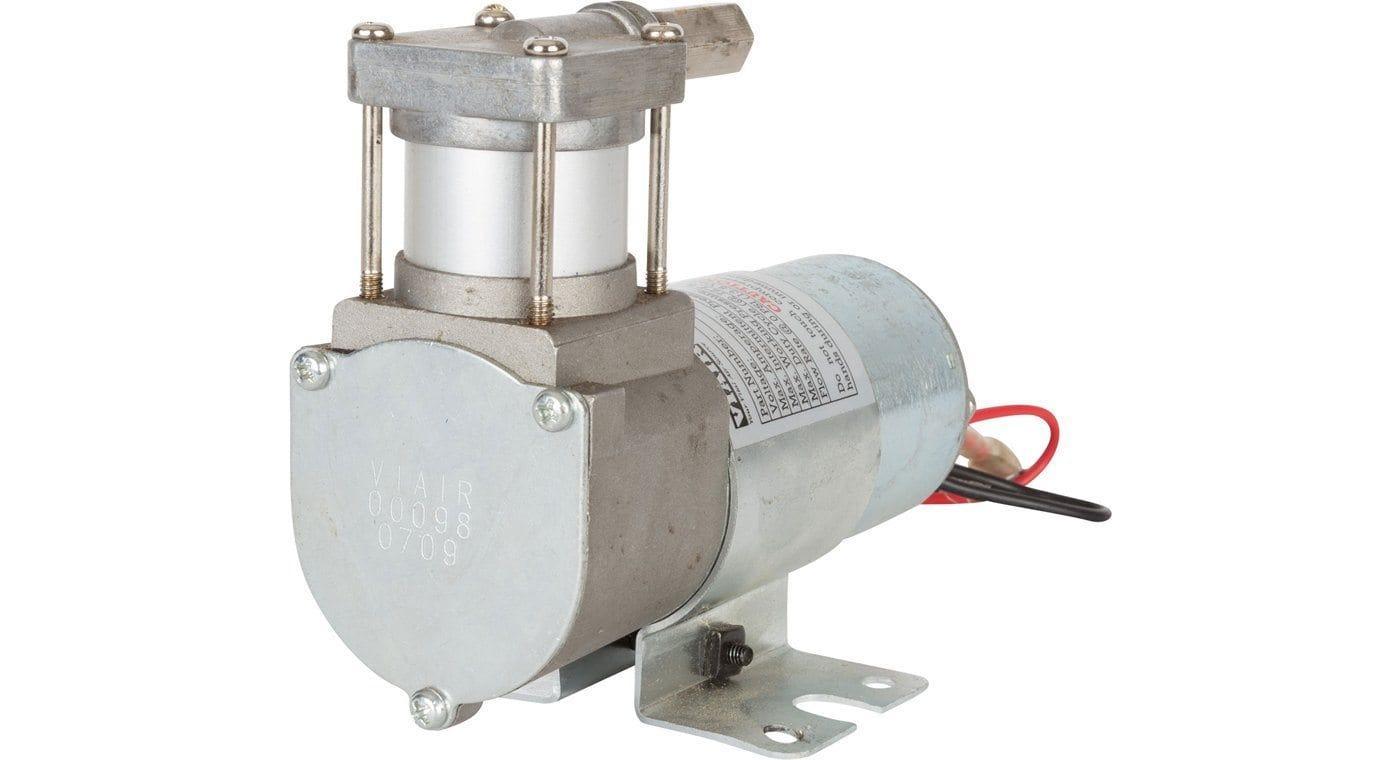

Viair 98C Silver Air Compressor
Viair 98C Silver Air Compressor is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
SMALL COMPRESSOR. HUGE PERFORMANCE!
Looking for a compressor that can handle your light-duty pneumatic needs? Look no further than the Viair 98 Silver Air Compressor! Despite its compact size, this compressor delivers top-of-the-line performance, making it an excellent choice for applications that require a small install footprint, such as motorcycle suspension and air lockers. With a flow rate of 1.53 CFM, the Viair 98C can recharge a 1-gallon tank from 90-120 PSI in just 45 seconds, all while only drawing 12 amps. Plus, the included Omega Bracket makes installation a breeze!
**To ensure the longevity and proper function of the air compressor, it is recommended to install it in a sheltered area, away from exposure to weather conditions and the elements.**
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dirt Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Insulated Wiring with Connectors
- Omega Style Mounting Bracket
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.53 | 7 | 0 | 43.5 | 7 |
| 10 | 1.00 | 9 | 1.0 | 28.0 | 9 |
| 20 | 0.95 | 10 | 2.0 | 25.5 | 11 |
| 30 | 0.90 | 11 | 3.0 | 22.7 | 11 |
| 40 | 0.85 | 11 | 4.0 | 20.7 | 12 |
| 50 | 0.77 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.72 | 12 | 6.0 | 16.3 | 12 |
| 70 | 0.65 | 12 | 7.0 | 13.7 | 12 |
| 80 | 0.60 | 12 | 8.0 | 11.7 | 12 |
| 90 | 0.54 | 12 | 9.0 | 10.0 | 11 |
| 100 | 0.48 | 12 | |||
| 110 | 0.44 | 12 | |||
| 120 | 0.39 | 12 | |||
| 130 | 0.35 | 11 |
* Supply Voltage: 13.8 Volts
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 50 sec. (± 05 sec.) |
| 85 to 105 PSI | 15 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 05 sec. (± 05 sec.) |
| 90 to 120 PSI | 21 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 30 sec. (± 05 sec.) |
| 0 to 120 PSI | 2 min. 10 sec. (± 10 sec.) |
| 90 to 120 PSI | 45 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts

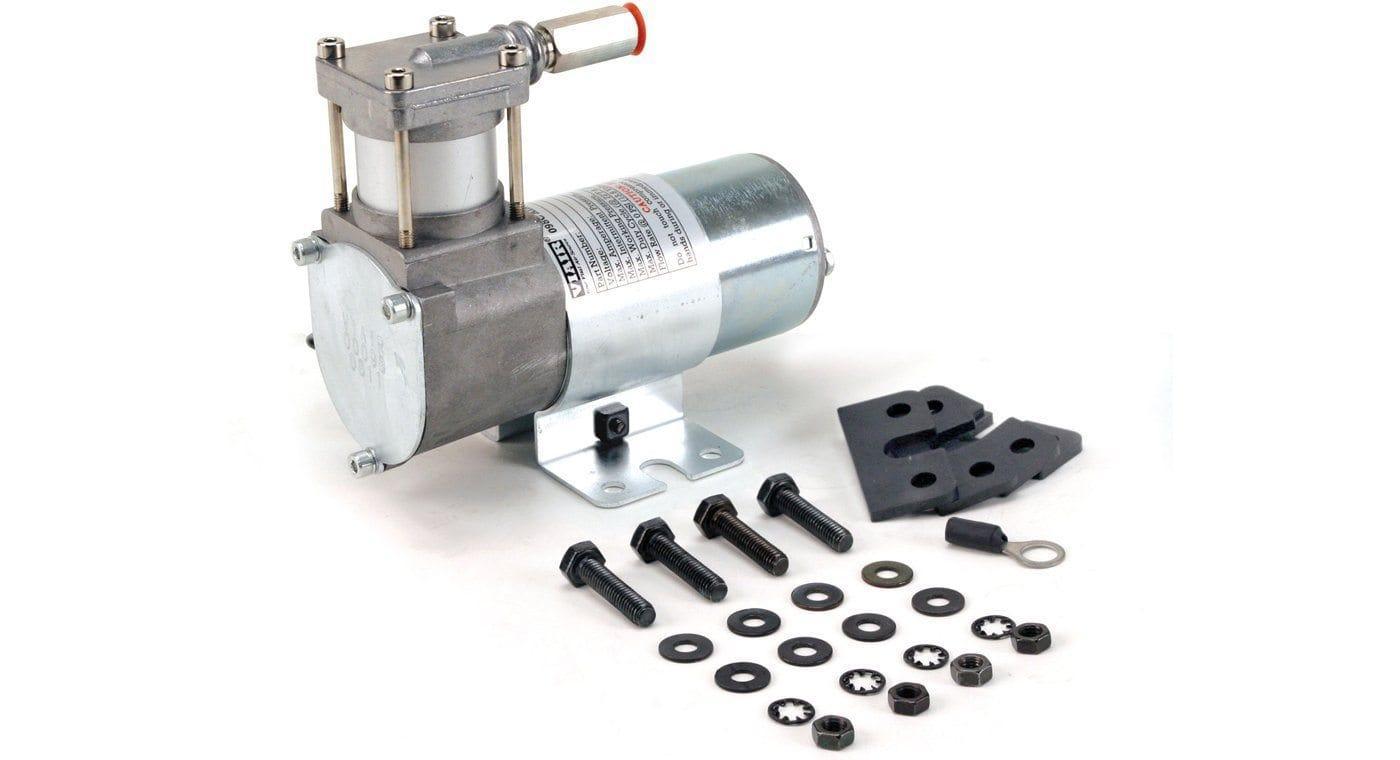

- Viair 98c Air Compressor
- Mounting Hardware
- Installation Instructions
| SPECIFICATIONS | |
|---|---|
| Part Number | AC-98 |
| Manufacturers Part Number | 00098 |
| Voltage | 12 Volts DC |
| Max Amperage | 13 Amps |
| Maximum Duty Cycle | 10% @ 100 PSI |
| Maximum Pressure | 130 PSI |
| Max Tank Size | 1 Gallon |
| CFM | 1.53 CFM |
| Length | 5.6″ (139.5 mm) |
| Width | 3.1″ (80 mm) |
| Height | 4.7″ (120 mm) |
| Weight | 2.50 lb (1.13 Kg) |
-
