Description
Description

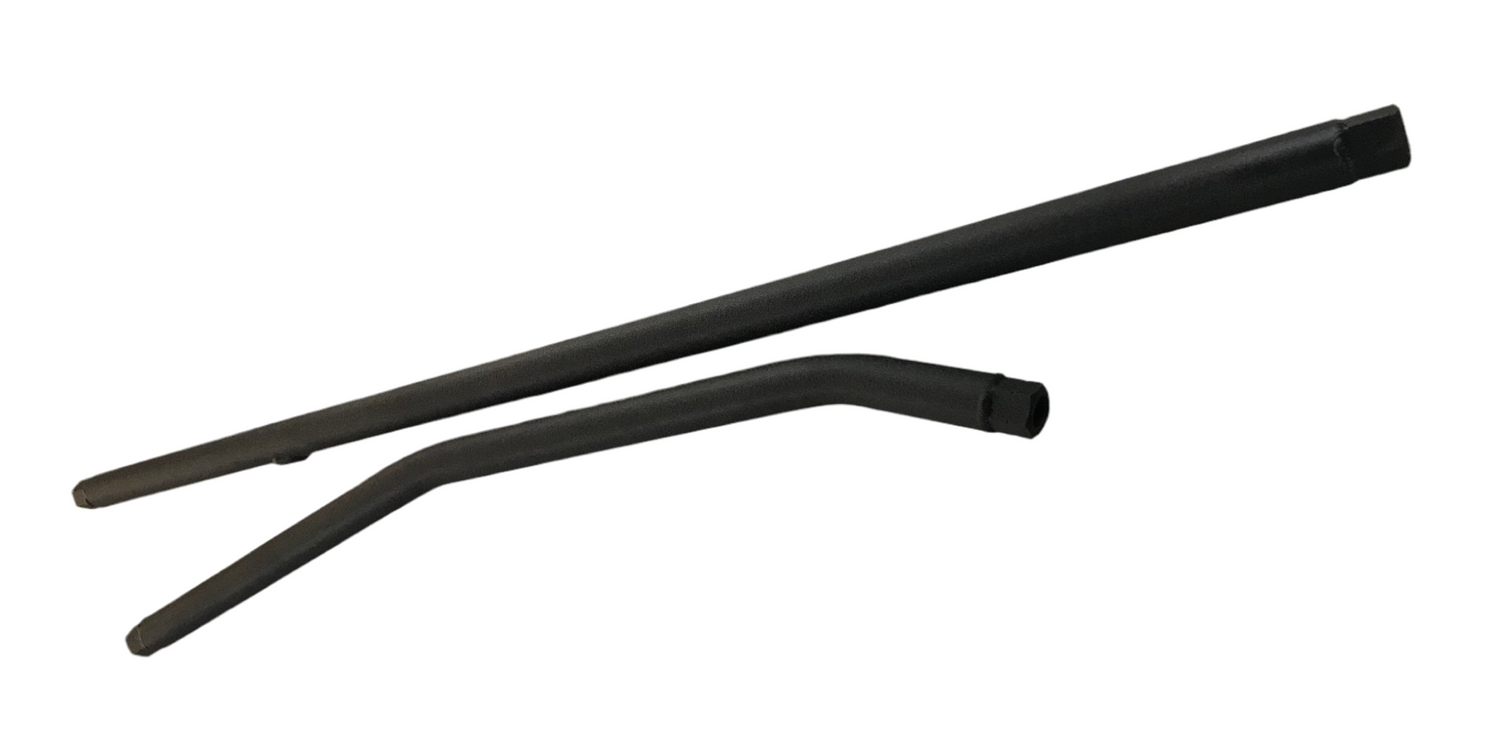

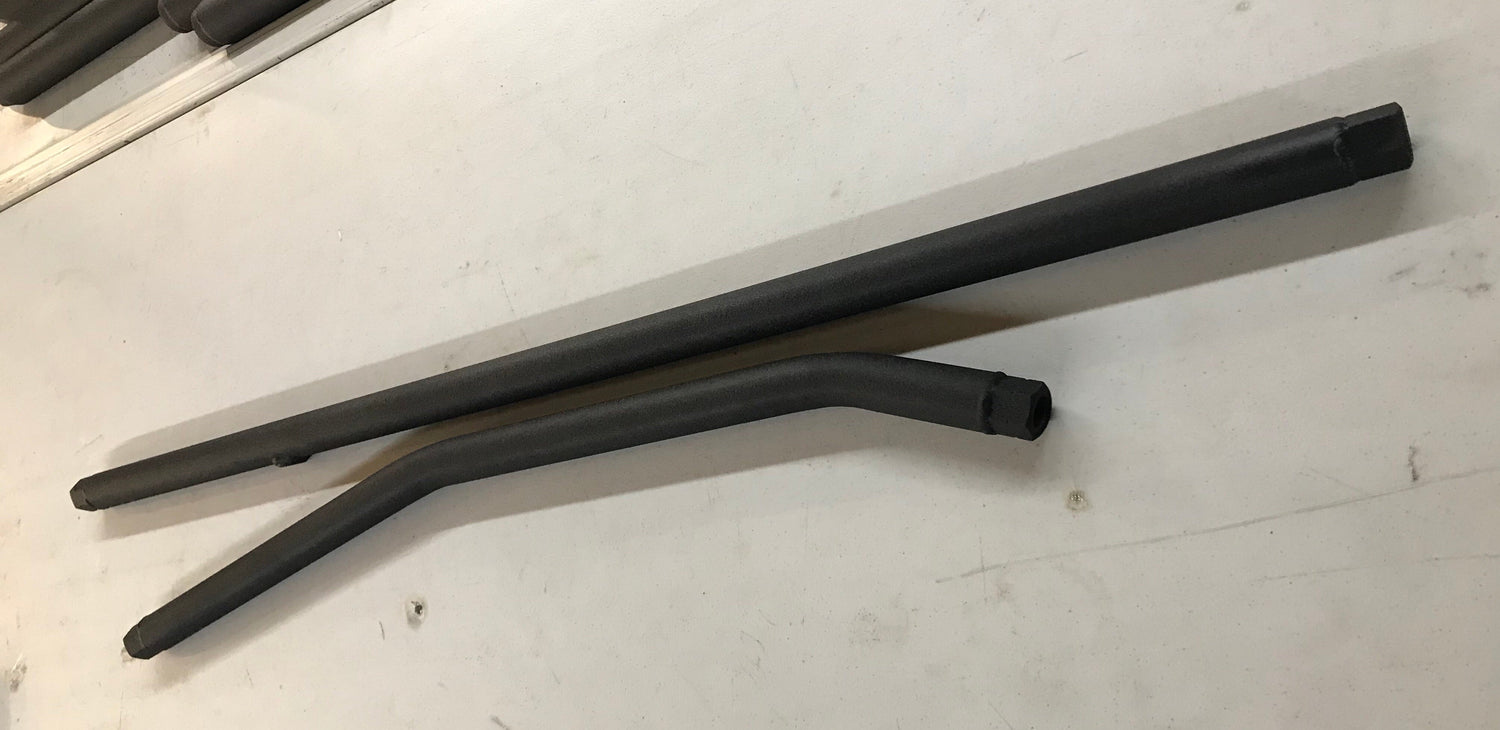

Heavy-duty 1.5" × .250 wall DOM heim tie rod for ’72–’93 Dodge trucks & Ramcharger with Dana 44. Hex ends for easy on-vehicle adjustment. Requires drilling knuckles to 3/4". Default finish: Wrinkle Black.
Vehicle Fitment (YMM)
| Years | Make | Model | Notes |
|---|---|---|---|
| 1972–1993 | Dodge | Pickup / Ramcharger | Dana 44 front axle; drill knuckles to 3/4" straight for heim conversion |
Key Specs
- Bar: 1.5" × .250 wall DOM with hex ends
- Joint Style: Heim-type rod ends (race-style)
- Prep Required: Drill factory knuckles to 3/4" straight
- Finish: Wrinkle Black (standard)
- Why it matters: Stronger than stock; hex flats prevent tooling damage and make adjustment easy
What’s Included
- (1) Heim Tie Rod
- (1) 7/8ths Left hand Heim Joint
- (1) 7/8ths Right hand Heim Joint
- (4) 7/8ths x 3.4" Narrow Misalignment
Exact contents may vary slightly with selected options. Review choices on the product page before adding to cart.
Installation
- Difficulty: Intermediate (drilling + toe/center setup)
- General Steps: Support front axle; remove stock tie rod; drill knuckles to 3/4" straight; mock bar & joints; set toe & steering-wheel center; torque jam nuts & hardware; road test; re-torque after 50–100 miles.
- Tips: Deburr drilled holes; use anti-seize on heim threads; verify full-lock clearance.
Heim care: In salty/brine climates, coat with heavy grease or use rubber boots in winter; light penetrant periodically keeps joints quiet. If you have any questions please call in.
Shop Notes
- Heim joints are race-type components; some areas may classify as off-road only—check local regulations.
- Ask us about FFS in-house install
