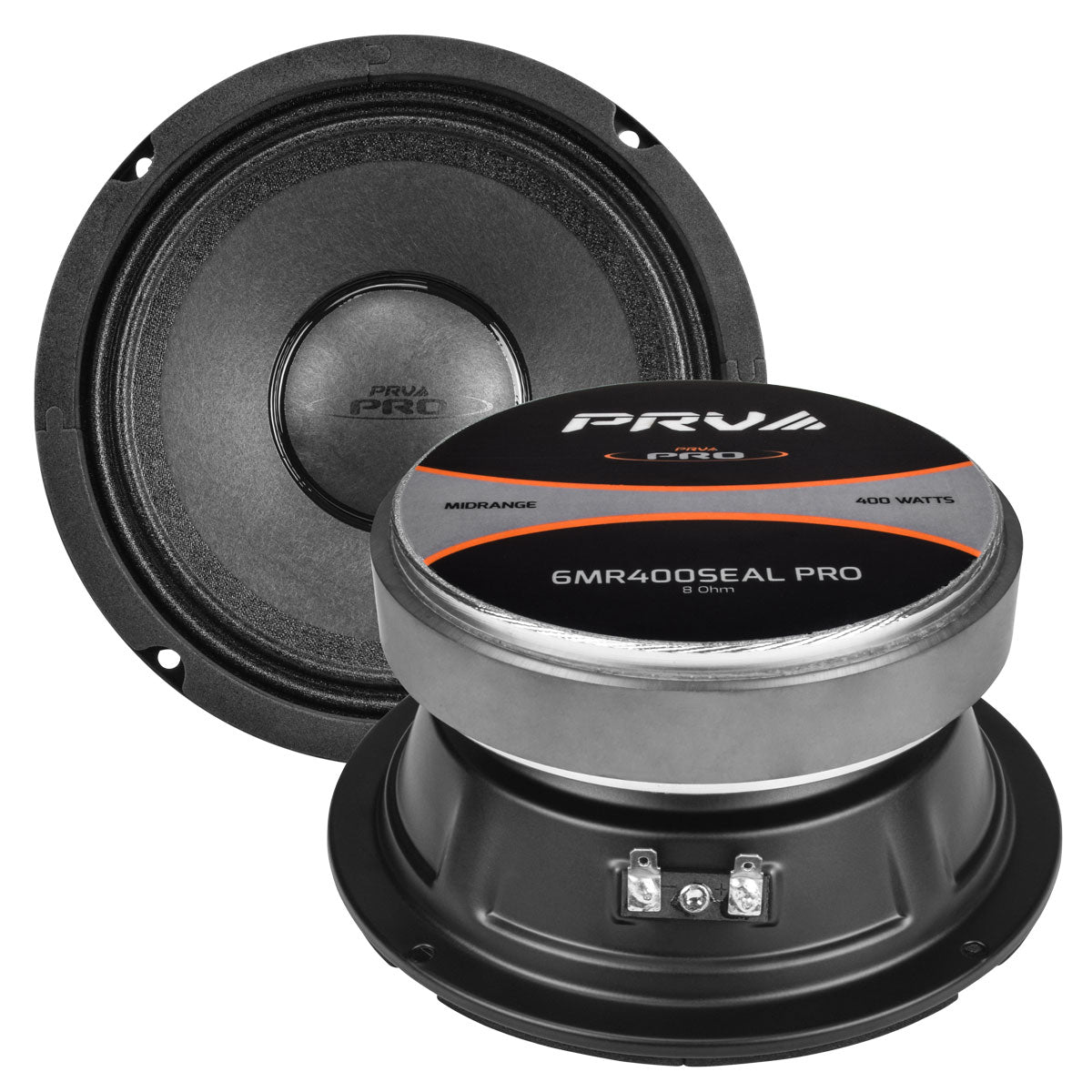

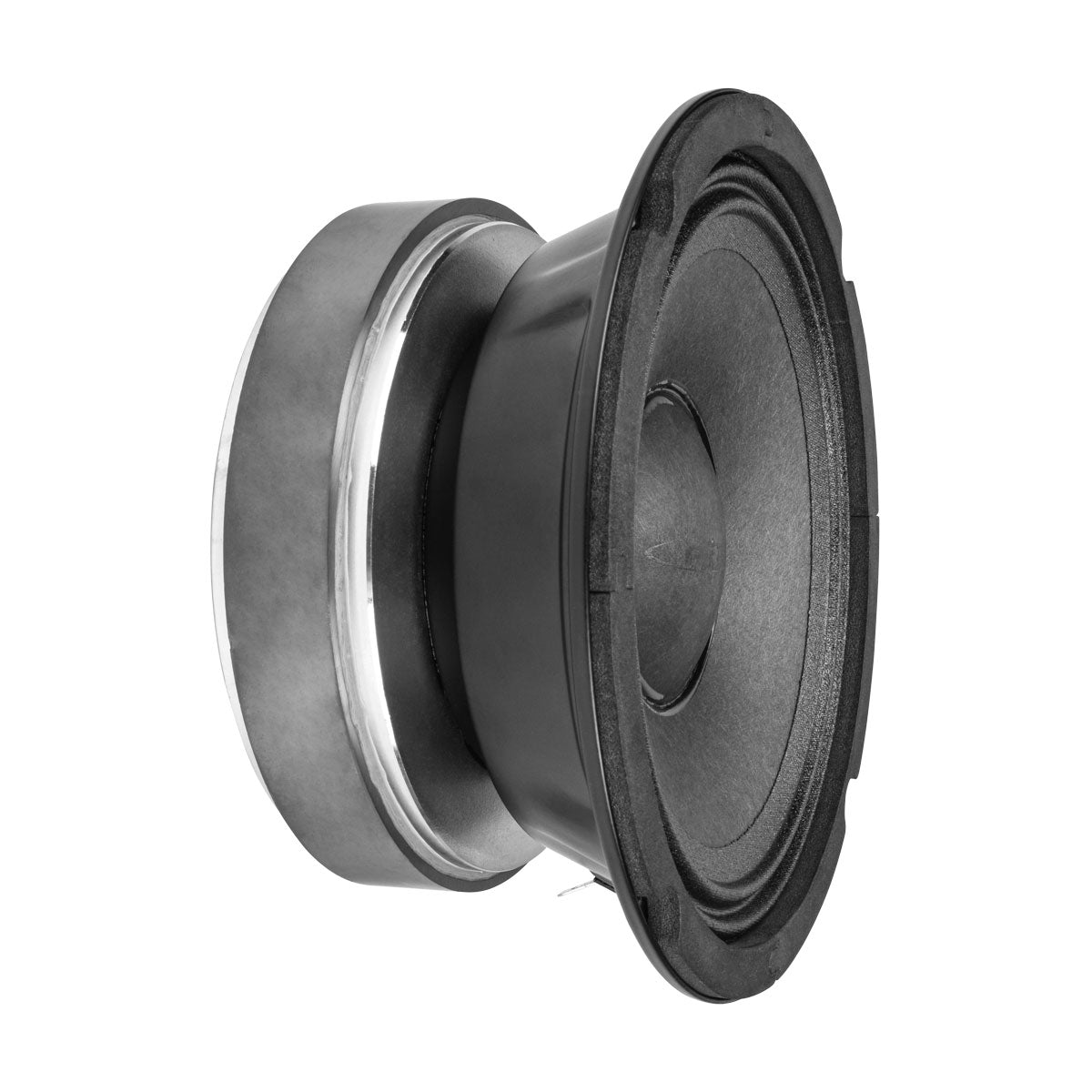

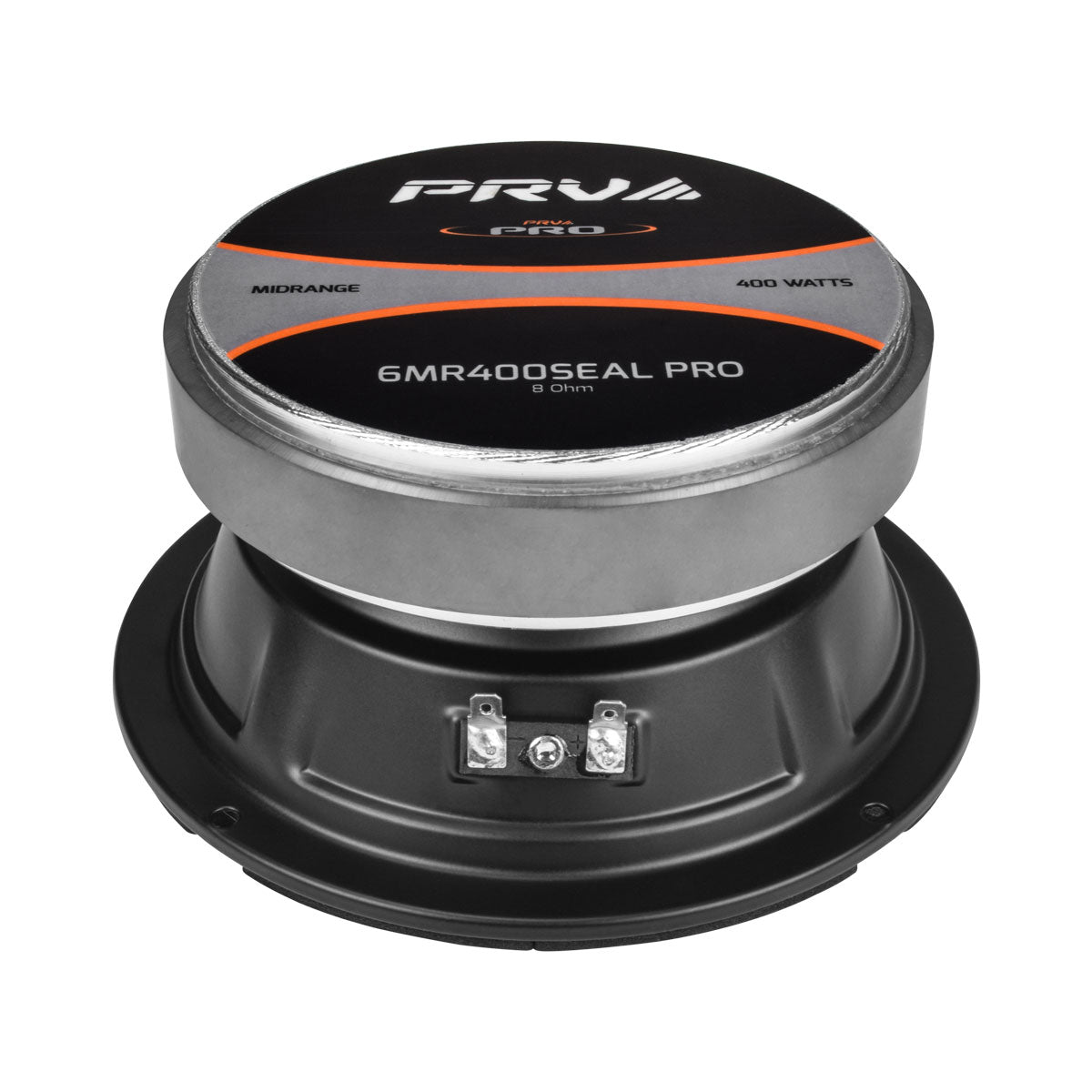

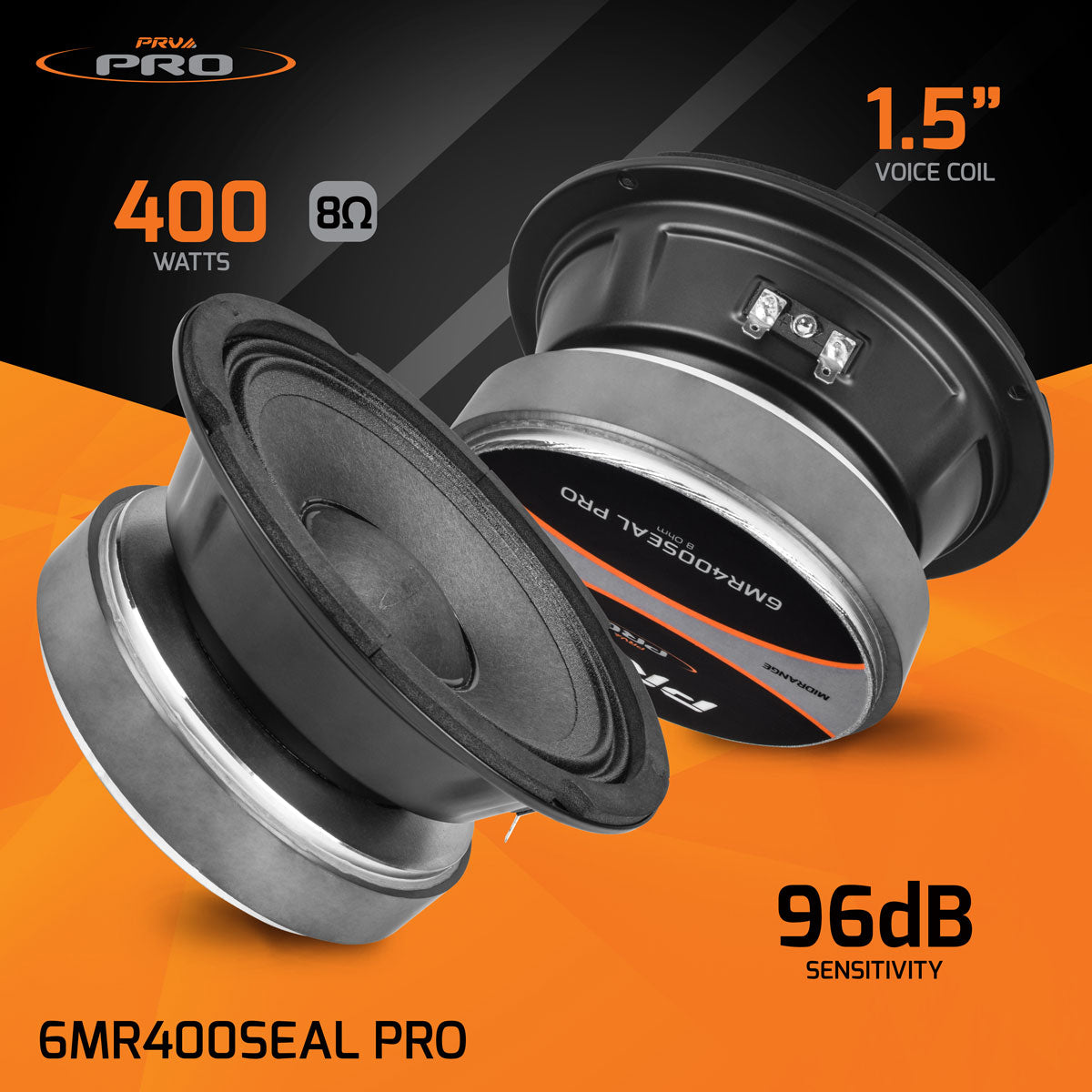

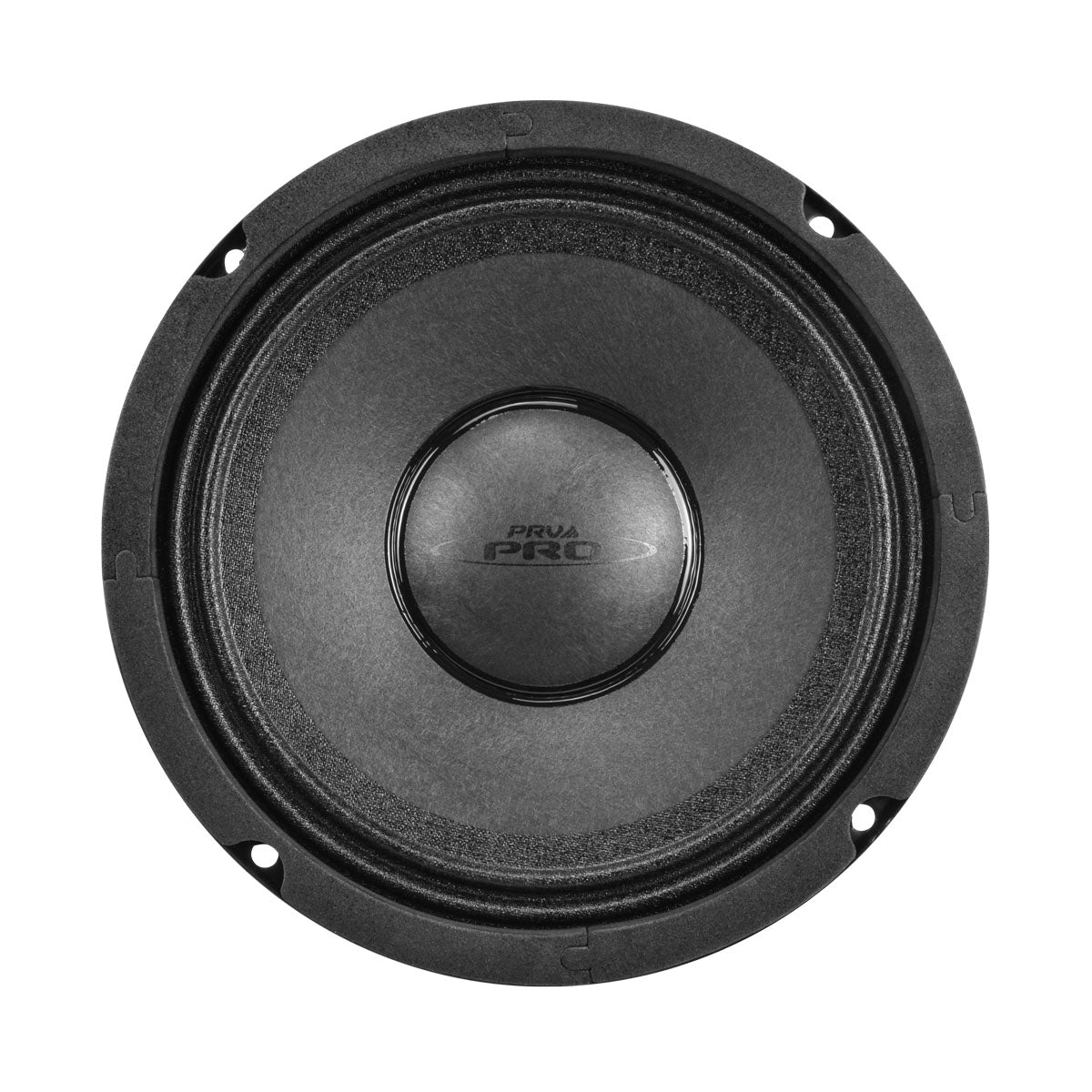

6MR400SEAL PRO | 6.5" SEALED BASKET MIDRANGE LOUDSPEAKER
6MR400SEAL PRO | 6.5" SEALED BASKET MIDRANGE LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
6MR400SEAL PRO | 6.5" SEALED BASKET MIDRANGE LOUDSPEAKER
6MR400SEAL PRO | 6.5" SEALED BASKET MIDRANGE LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Now you can pair this 6.5″ speaker with any 10″ or 12″ speaker from our PRO Series, to build the ultimate custom Chuchero® or PRO Audio systems.
- A sealed back basket simplifies cabinet manufacture, eliminating the need for a separate enclosure for other speakers.
- Capable of handling 400 Watt RMS this midrange has enough output capability to keep up with the most powerful drivers, suitable for use in 3-way cabinet systems ( Midbass + Seal Basket + High Frequency Driver or Tweeter).
- Optimized to deliver detailed reproduction of mid-range frequencies from 300Hz to 9,000Hz. A powerful output peak at 400hz reaches 100dB of sensitivity at 1w/1m.
A light paper cone is mated to a 1.5″ voice coil for great power handling of 400 watts. A durable spider suspension, woven cloth surround, and closed back pressed steel basket are combined for durability over many hours of use.
Cabinet builders gravitate towards this driver for use in their systems when looking for a powerful sealed basket midrange, to keep up with high sensitivity low frequency speakers.
Using a closed basket design in a speaker like the 6MR400SEAL PRO offers several advantages. Firstly, it prevents interference from a woofer or midbass in a shared cabinet design, resulting in a cleaner and more accurate midrange response.
Additionally, the closed basket design contributes to a smooth punch of midbass and midrange, enhancing the overall audio performance of the speaker.
PRV 6.5″ Sealed Basket Midrange 6MR400SEAL PRO Audio Speaker / 8 Ohm – High Performance
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 200 Watts |
| Continuous Program Power (RMS) | 400 Watts |
| Max Peak Power | 800 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 400 Hz** **12db Per Octave Crossover |
| Frequency Response at -10DB | 400 – 9,000 Hz |
| Voice Coil Diameter | 1.5″ (38 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 10.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 0.65 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 356.9 Hz |
| Mechanical Factor | Qms | 12.40 |
| Electrical Factor | Qes | 2.05 |
| Total Factor | Qts | 1.76 |
| Cone Area | Sd | 149 cm² |
| Mechanical Mass | Mms | 9.51 g |
| Bl Factor | Bl | 8.15 Tm |
| Dc Resistance | Re | 6.4 Ohm |
| Inductance | Le | 0.21 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 18.48 g |
| Mechanical Compliance | Cms | 0.021 mm/N |
EXTRA INFO
| Overall Diameter | 6.57” ( 167mm) |
| Front Mount Baffle Cutout | 5.79″ (147 mm) |
| Mounting Depth | 2.97” (75.5 mm) |
| Overall Depth | 3.27” (83.2 mm) |
| Net Weight | 5.80 Lbs (2.60 kg) |
| Shipping Weight | 6.20 Lbs (2.80 kg) |
| Carton Dimensions W x L x H | 7.16″ x 7.16″ x 3.39” (182 x 182 x 86 mm) |
