Viair 460C Chrome Air Compressor
Viair 460C Chrome Air Compressor is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Viair 460C Chrome Air Compressor
Viair 460C Chrome Air Compressor is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
A COMPRESSED AIR POWERHOUSE.
Introducing the Viair 460C Chrome Air Compressor – a powerful and reliable pneumatic tool for all your inflation and air tool needs. With a 150 PSI delivery and the ability to power a 5-gallon tank, it's perfect for any project. The fast recharge time and easy installation make it a cinch to use.
This compressor does come with the option to add our 40 Amp Air Compressor Wiring Kit to it as well!
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dirt Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Stainless Steel 3/8" Braided Leader Hose
- Remote Mount Intake Filter Assembly
- Insulated Wiring with Connectors
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 13 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 19 |
| 40 | 1.39 | 19 | 4.0 | 34.0 | 21 |
| 50 | 1.27 | 20 | 5.0 | 30.5 | 21 |
| 60 | 1.18 | 21 | 6.0 | 28.1 | 22 |
| 70 | 1.09 | 21 | 7.0 | 26.4 | 23 |
| 80 | 1.04 | 22 | 8.0 | 25.0 | 24 |
| 90 | 0.97 | 22 | 9.0 | 23.0 | 23 |
| 100 | 0.94 | 23 | 10.0 | 21.0 | 22 |
| 110 | 0.90 | 24 | |||
| 120 | 0.86 | 24 | |||
| 130 | 0.81 | 23 | |||
| 140 | 0.76 | 22 | |||
| 150 | 0.72 | 22 |
* Supply Voltage: 13.8 Volts
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 28 sec. (± 05 sec.) |
| 0 to 145 PSI | 3 min. 02 sec. (± 10 sec.) |
| 110 to 145 PSI | 59 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 00 sec. (± 10 sec.) |
| 85 to 105 PSI | 58 sec. (± 05 sec.) |
| 0 to 145 PSI | 6 min. 25 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 11 sec.(± 10 sec.) |
* Supply Voltage: 13.8 Volts

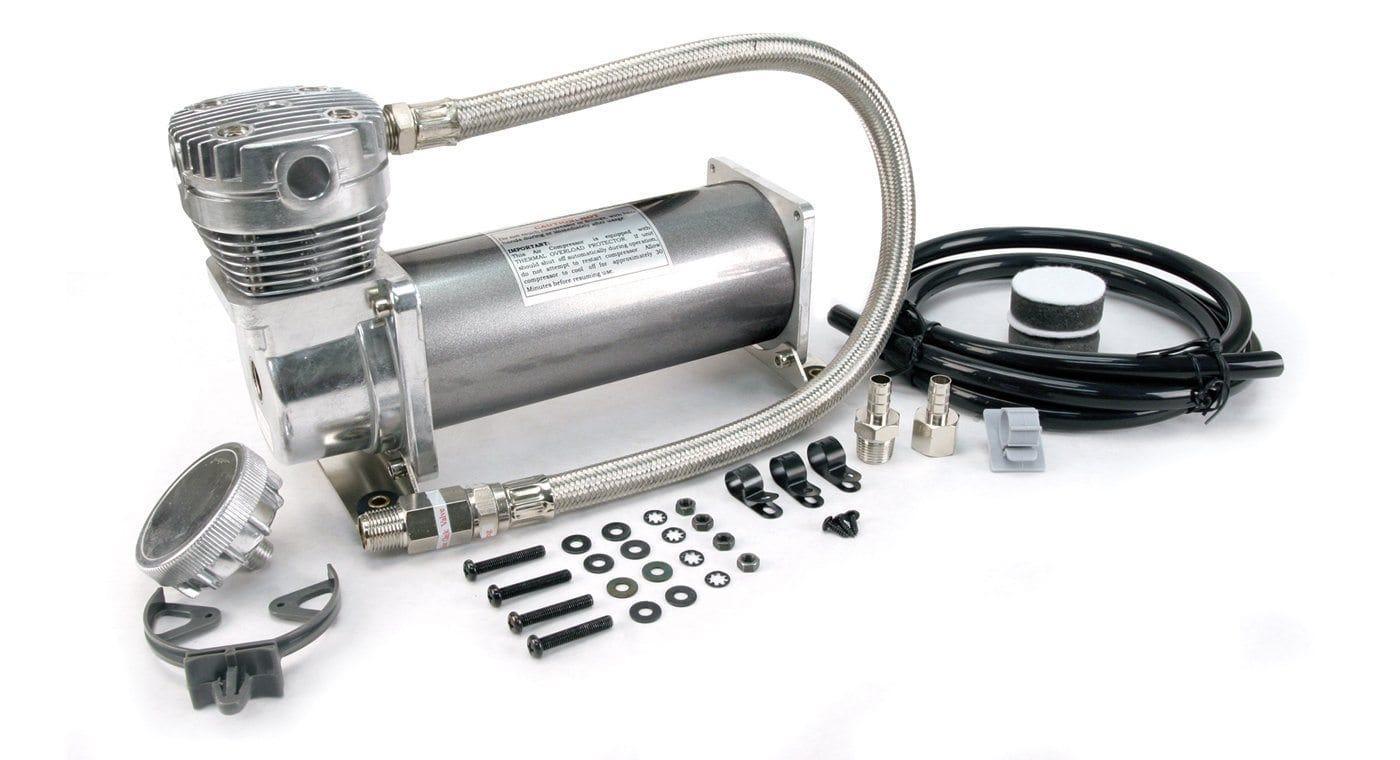

- Viair 460C Chrome Air Compressor
- 3/8" NPT Braided Leader Hose & Check Valve
- Remote Mount Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year ManufactureR's Defect Warranty
- Mounting Hardware
| SPECIFICATIONS | |
|---|---|
| Part Number | AC-460 |
| Manufacturers Part Number | 46043 |
| Voltage | 12 Volts DC |
| Max Amperage | 24 Amps |
| Maximum Duty Cycle | 100% @ 100 PSI |
| Maximum Pressure | 150 PSI |
| Max Tank Size | 5 Gallons |
| CFM @ 0 PSI | 1.80 CFM |
| CFM @ 100 PSI | .94 CFM |
| Length | 11.5″ (292.1 mm) |
| Width | 4.3″ (109.22 mm) |
| Height | 6.5″ (165.1 mm) |
| Weight | 6.95 lb (3.15 Kg) |
-
