4/0 Feeder STAGE AND LIGHTING Cable. 5-100' 4/0 wire STANDARD 405 W/CAM LOCK M/F
4/0 Feeder STAGE AND LIGHTING Cable. 5-100' 4/0 wire STANDARD 405 W/CAM LOCK M/F is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
4/0 Feeder STAGE AND LIGHTING Cable. 5-100' 4/0 wire STANDARD 4...
4/0 Feeder STAGE AND LIGHTING Cable. 5-100' 4/0 wire STANDARD 405 W/CAM LOCK M/F is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
EACH CABLE IS 100 FT EACH WITH CAM LOCKS INSTALLED ON EACH END.
CONFIGURATION: MALE TO FEMALE.
THESE CABLES ARE BUILT BRAND NEW WITH TYPE SC 4/0 CABLE AND HUBBELL SERIES 16 400 AMP CAM LOCKS.
MALE TO FEMALE CAM LOCKS.

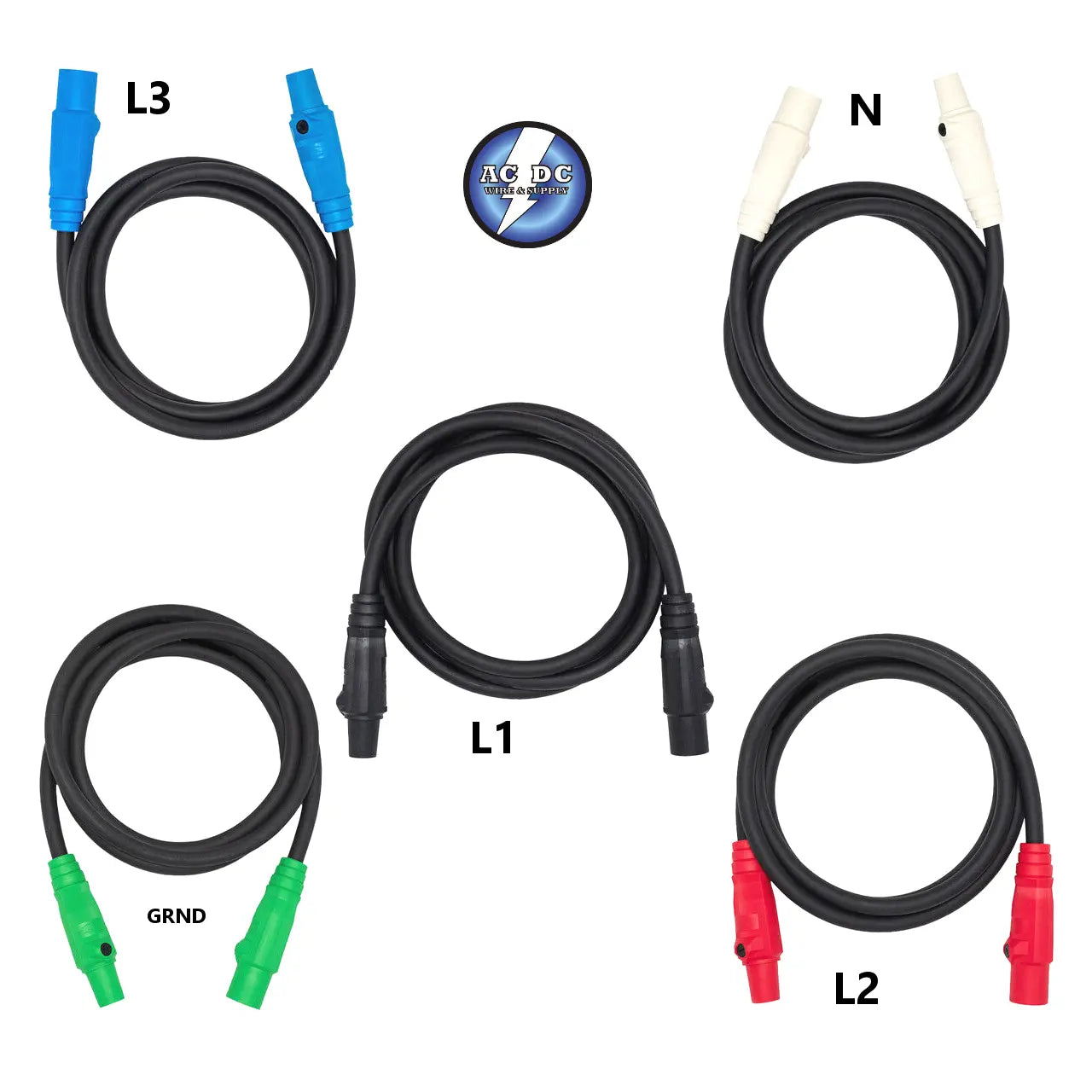

COLOR:
GREEN-GROUND
WHITE-NEUTRAL
BLACK-LINE 1
RED-LINE 2
BLUE- LINE 3
BUILT IN THE USA.
Features
AWG: 4/0
STRANDS: 2109 / 30 CLASS K
405 AMPS
HUBBELL M/F SERIES 16 CAM LOCKS.

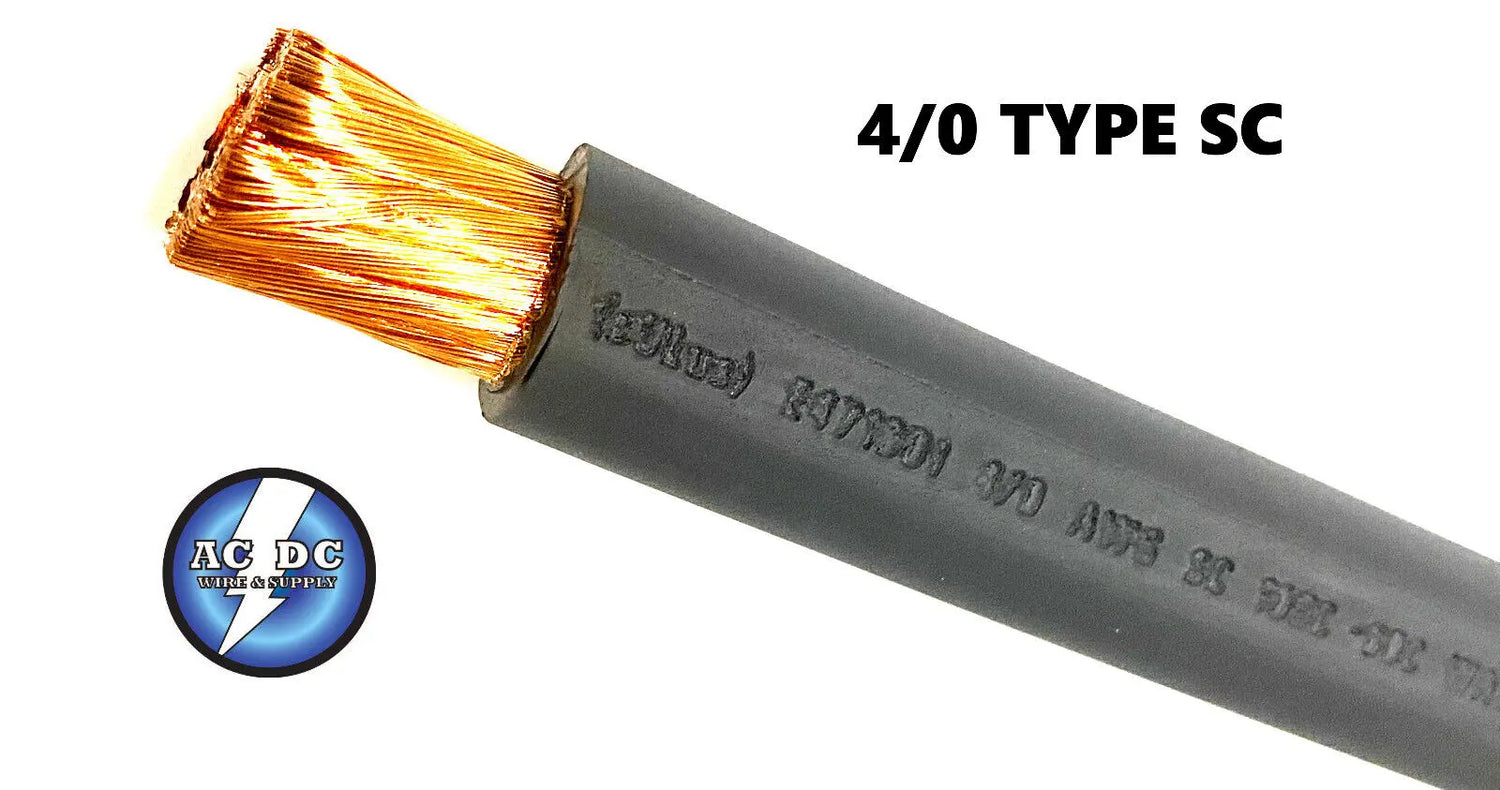

Type SC Entertainment and Stage Lighting Cable. 4/0 AWG
bare ASTM Class K copper
• 600 V
• Wrapped paper separator
• Insulated with low-smoke, halogen-free EPDM compound
• Jacketed with proprietary CPE compound
• Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil,
sunlight, and water
• tested 60°C (140°F) oil resistant temperature rating
• tested 720 hours sunlight resistance rating
• -50°C (-58°F) to 105°C (221°F) Dry; 75°C (167°F) WetTemperature RangeTemperature Range
Standards & Certifications
Industry Approvals
• Listed Type SC
• 1680 (Stage and Lighting Cable)
• 44 and 1581 LISTED
• Listed Type SC
• NFPA 70/NEC Arts. 400, 520, 525, and 530
• FT-5 and VW-1
• CSA C22.2 No. 96 and 2556
• ASTM B3, B49, B172, and B263
• MSHA Compliant
• RoHS and Prop 65 Compliant
