94-02 2nd GEN Dodge Ram Tie Rod/Drag Link/Track Bar/Drop Bracket Steering Combo

2nd Gen Steering Kit: Tie Rod / Drag Link / Track Bar / Drop Bracket

Fits: 1994–2002 Ram 2500 & 3500 (Dana 60 or 3rd Gen AAM Swap)

Lift Height:   – CALL for fitment help

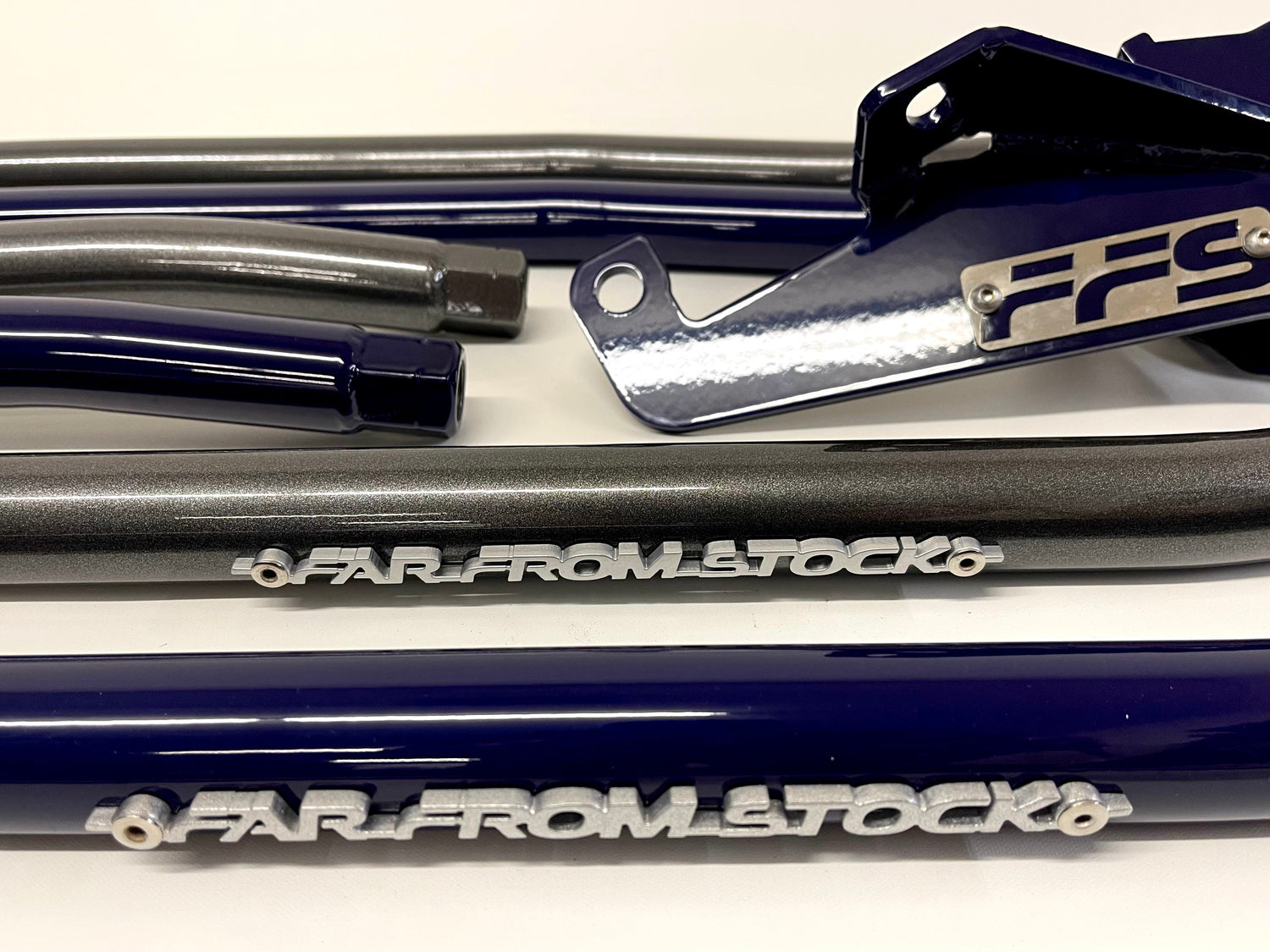

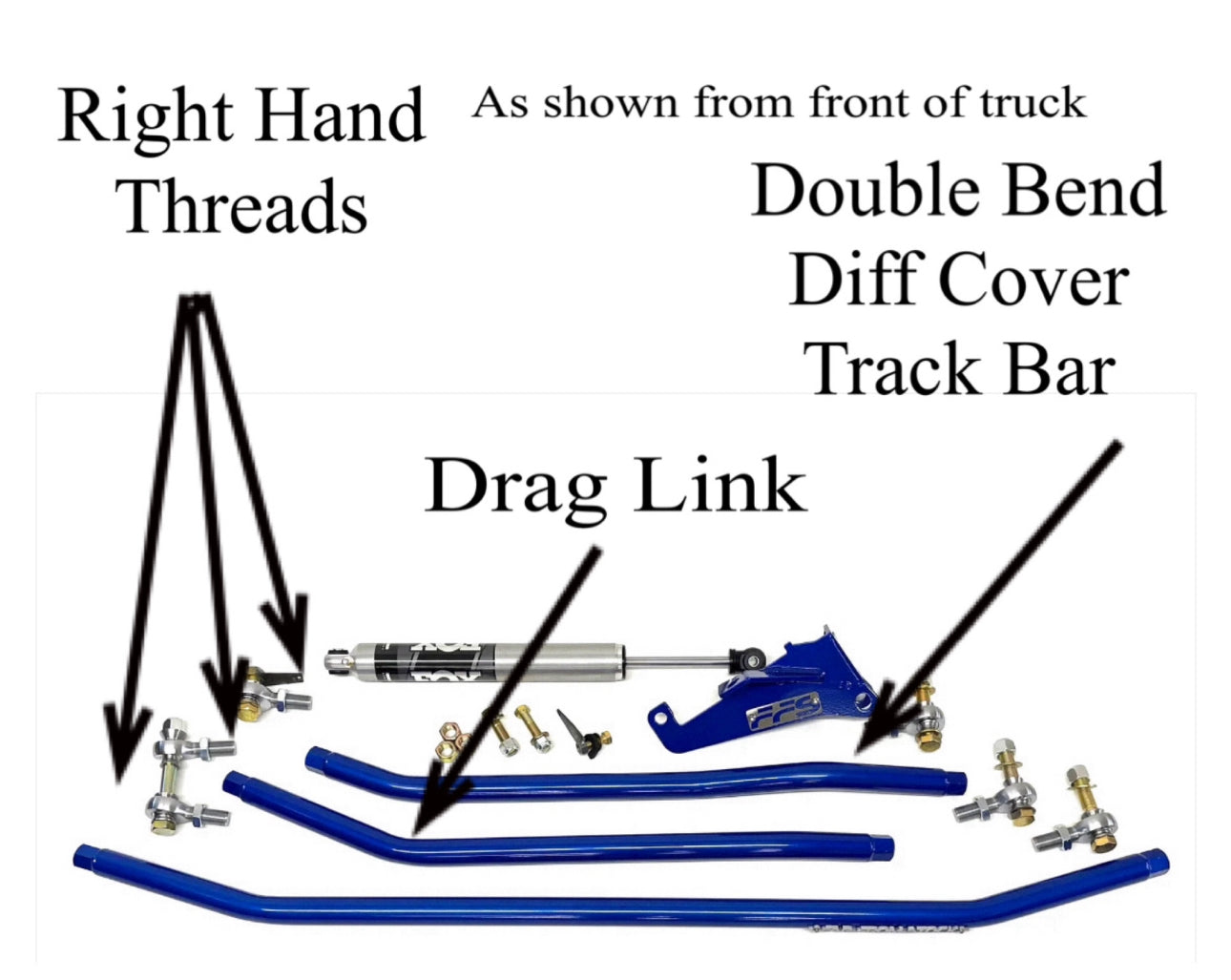

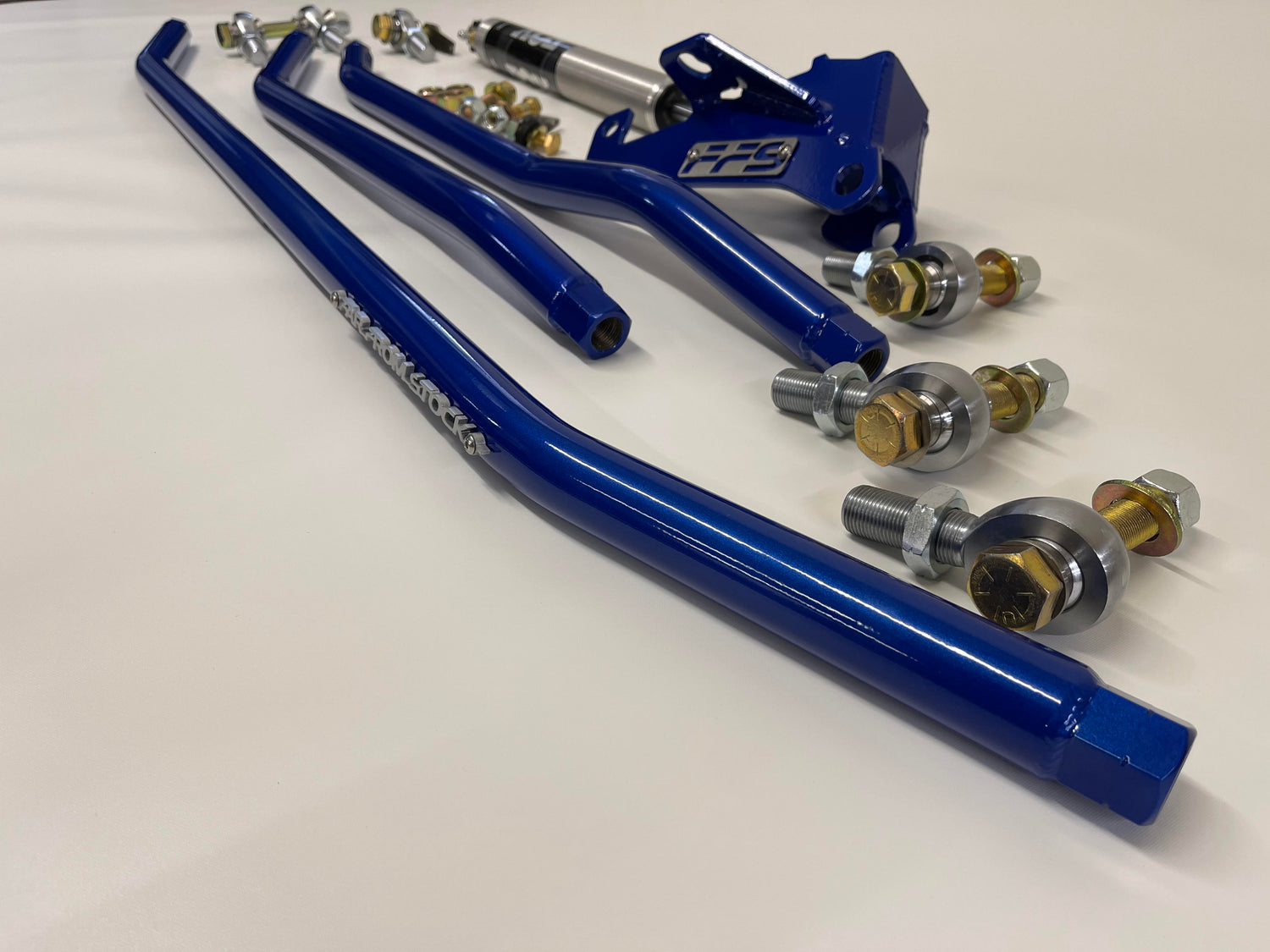

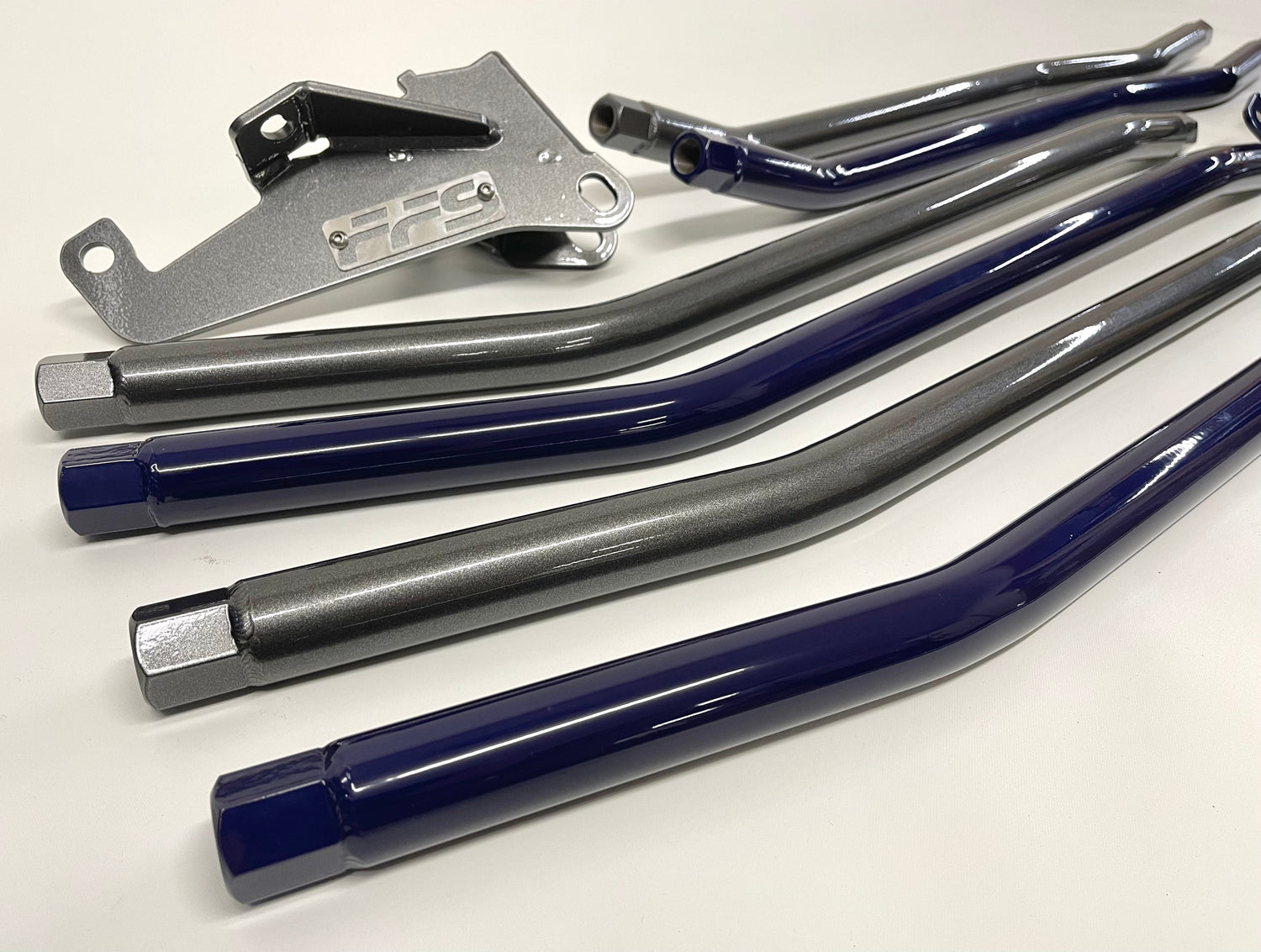

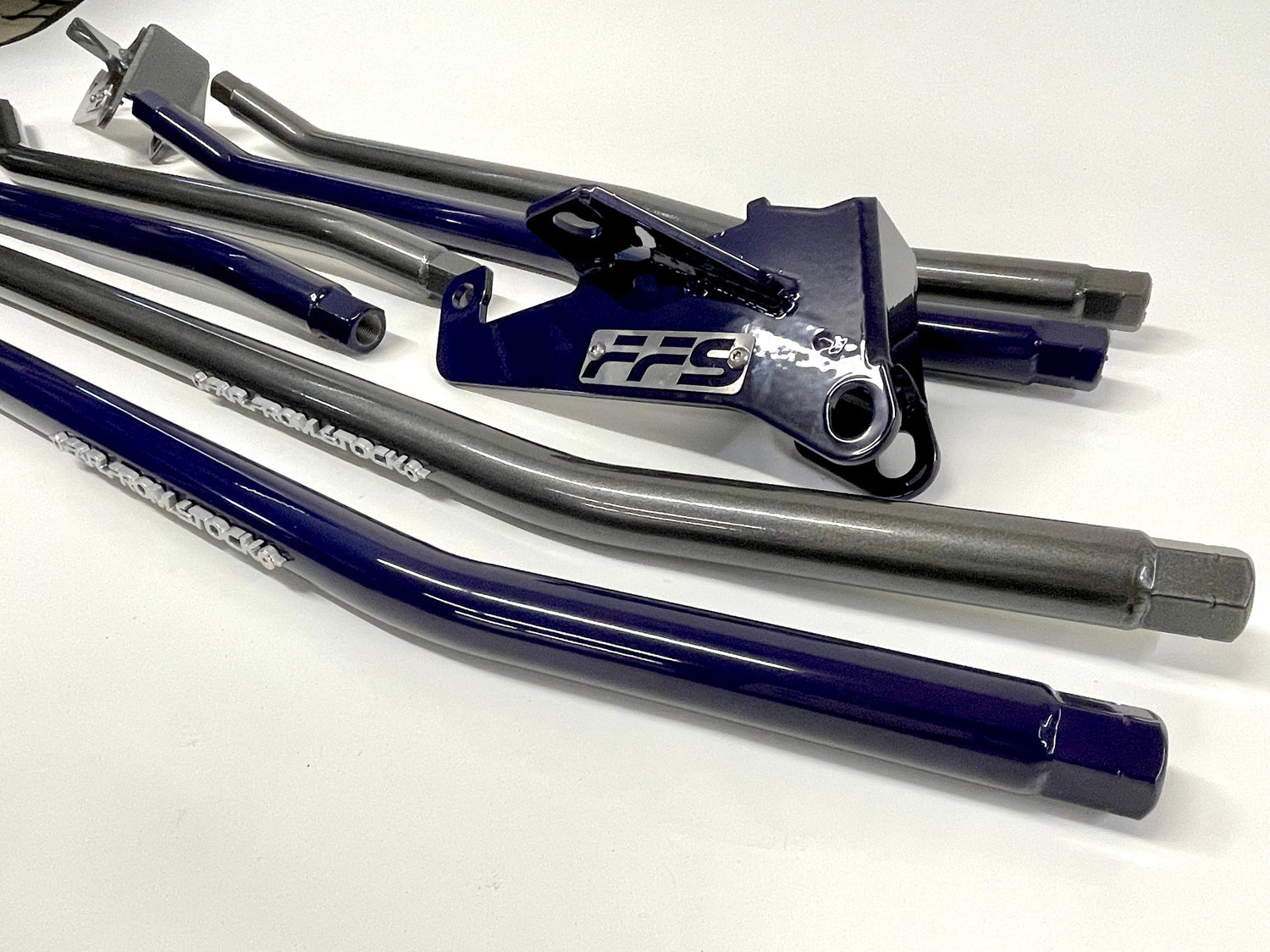

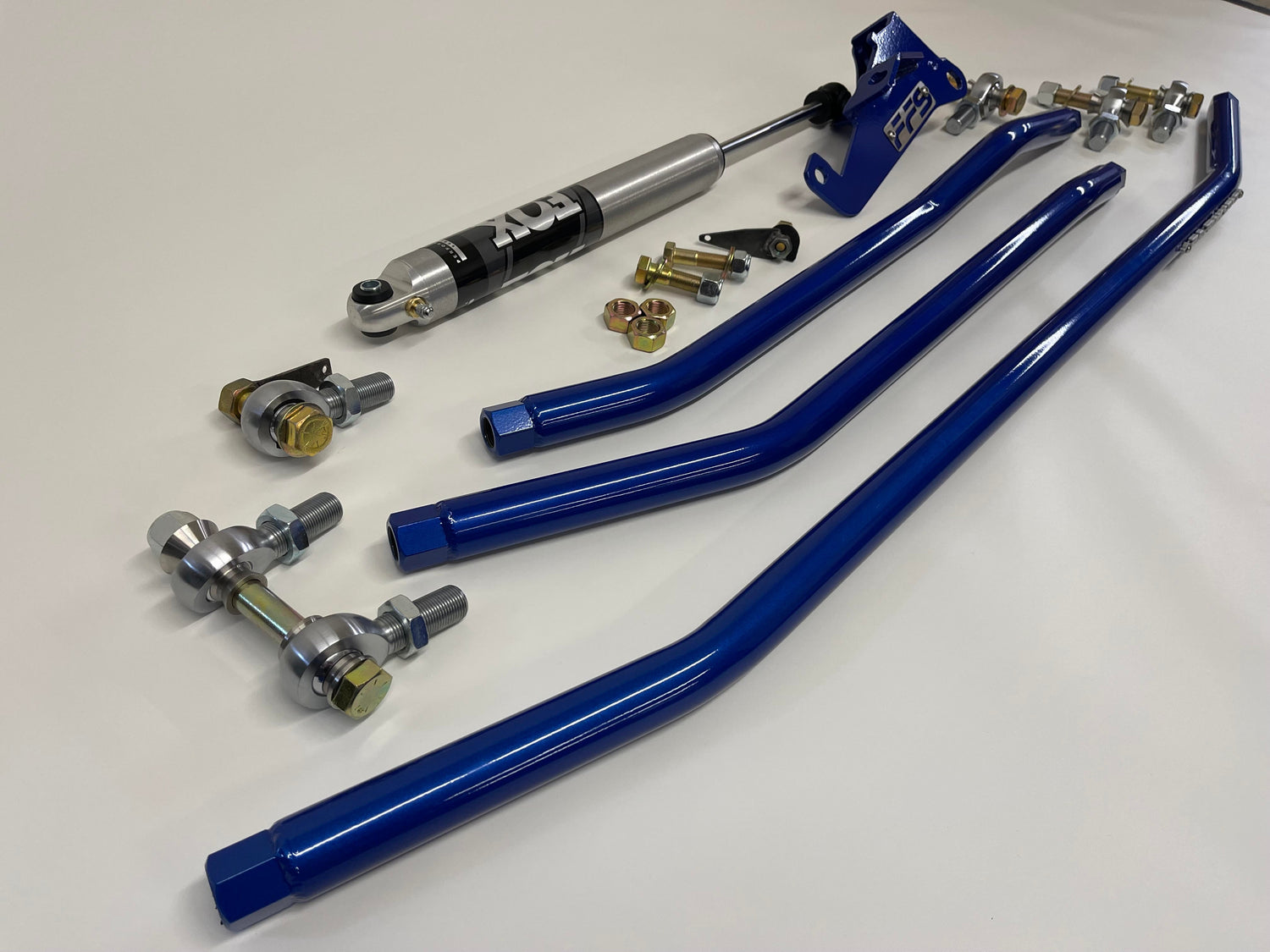

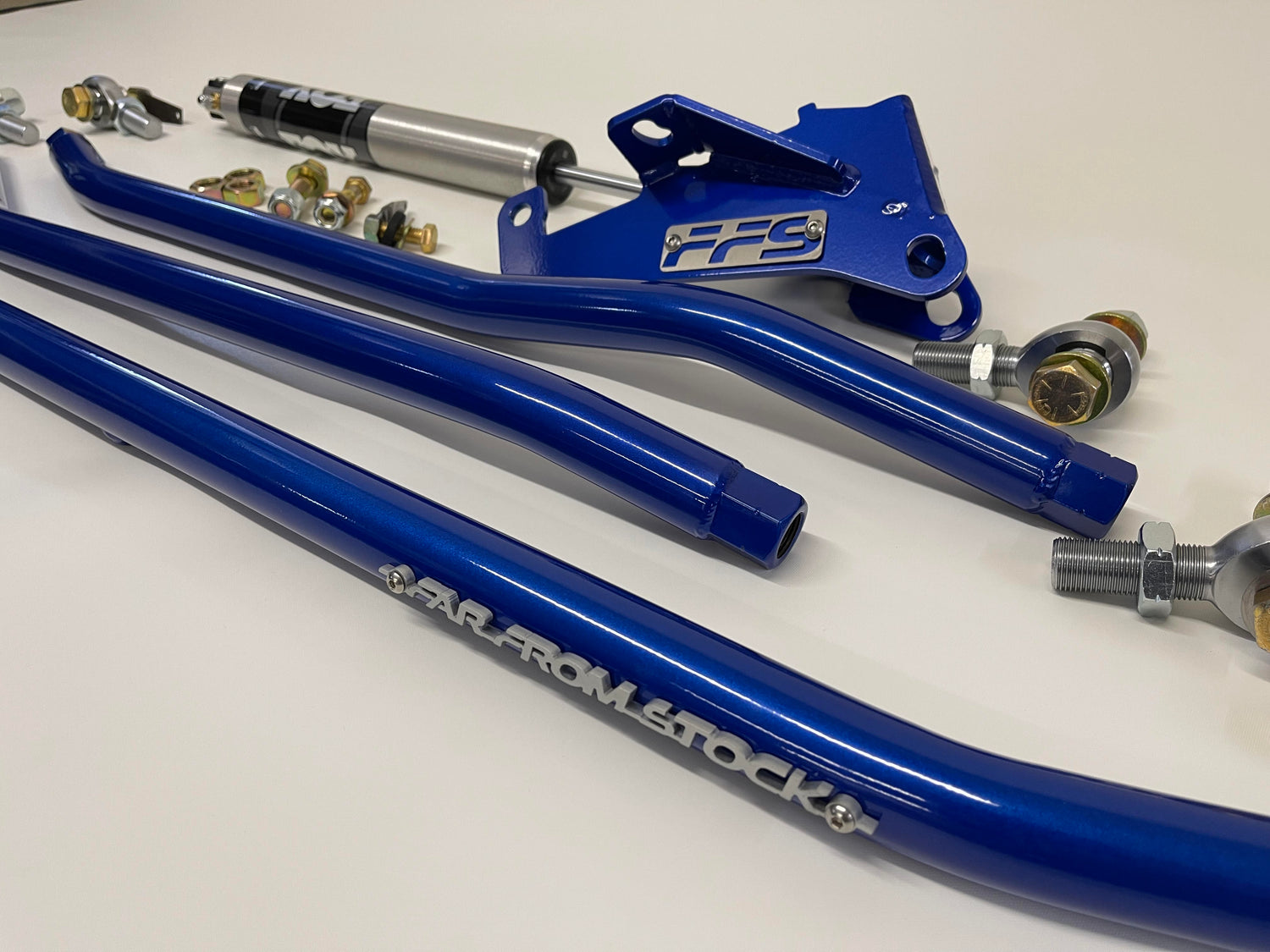

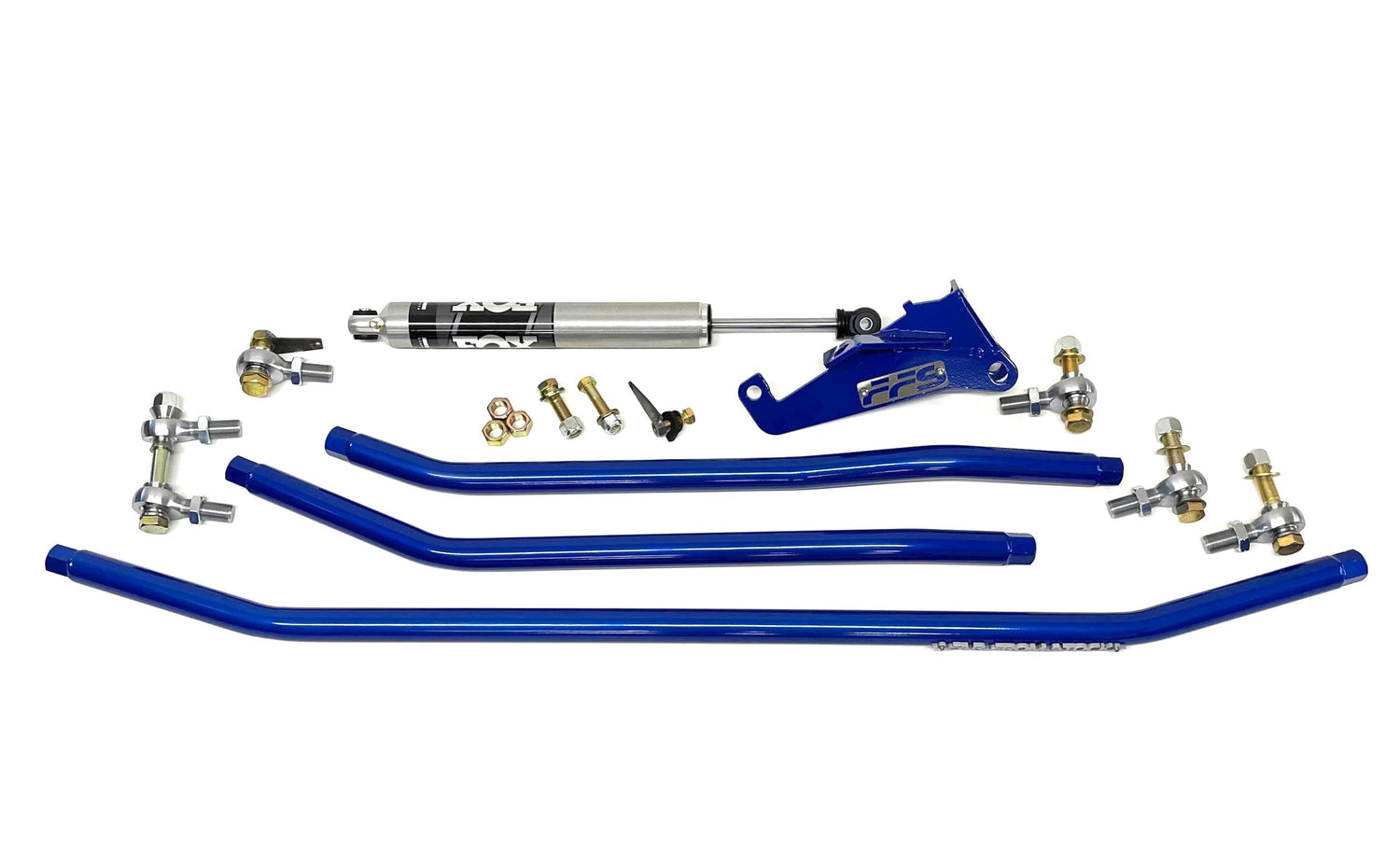

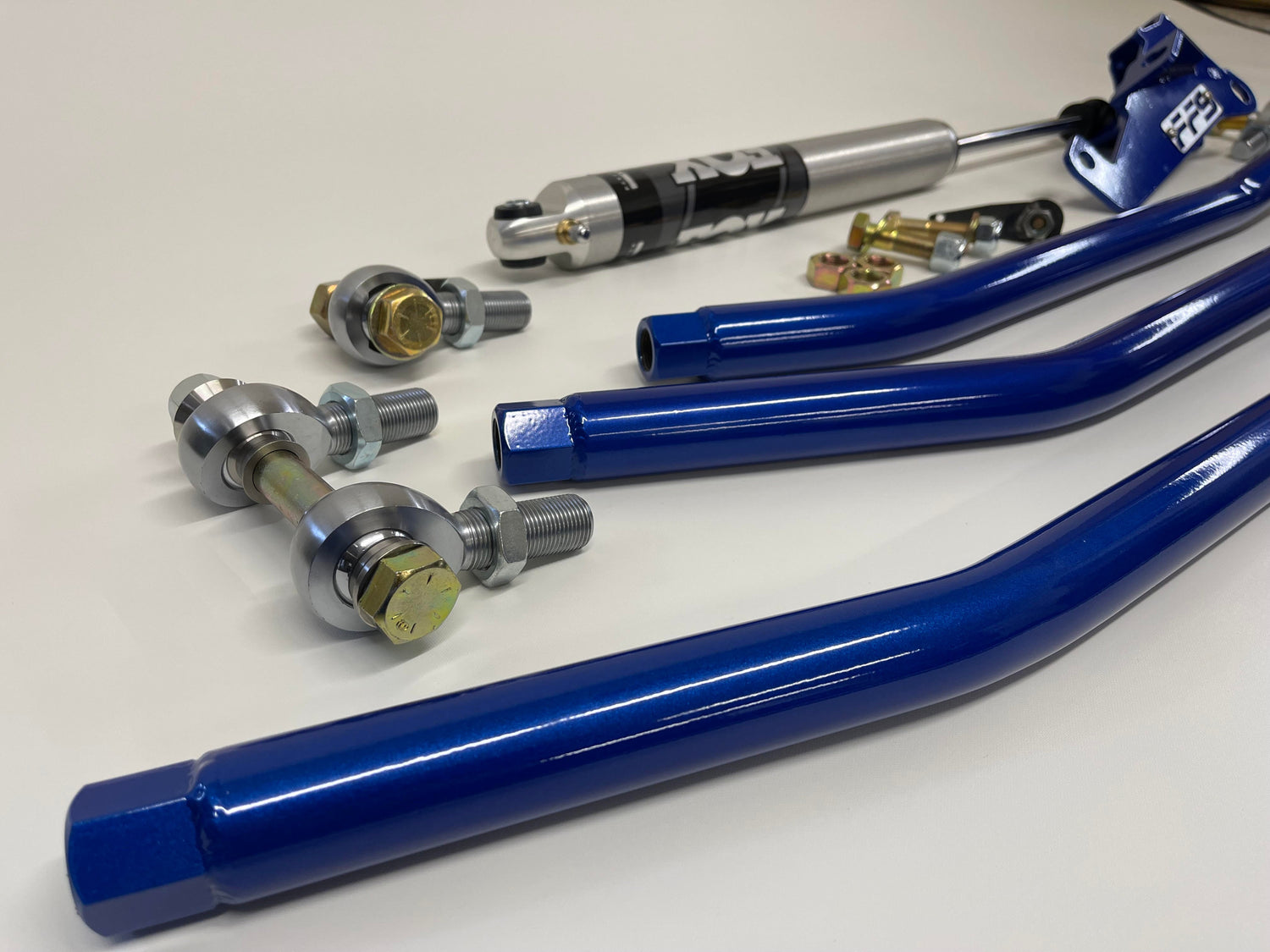

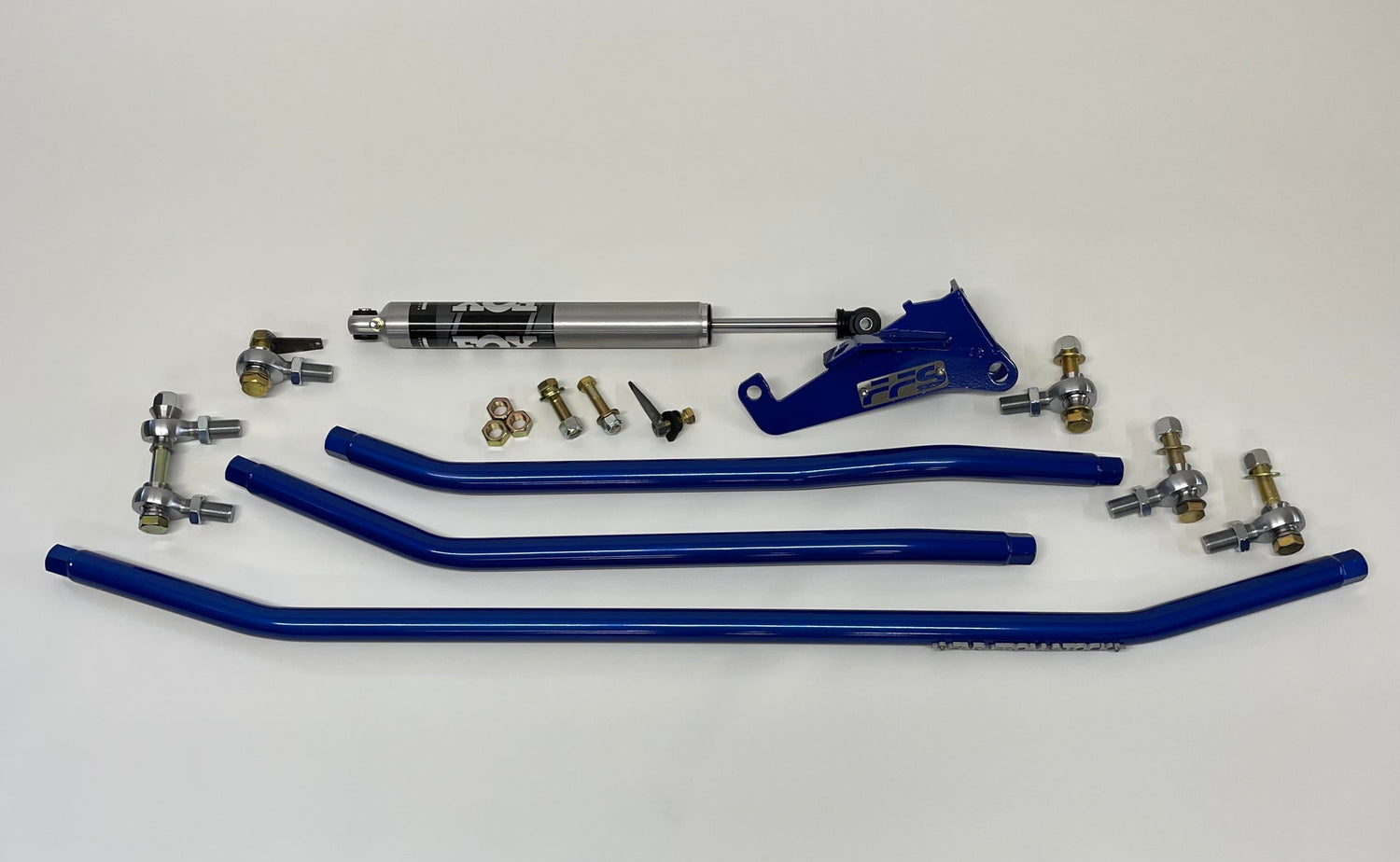

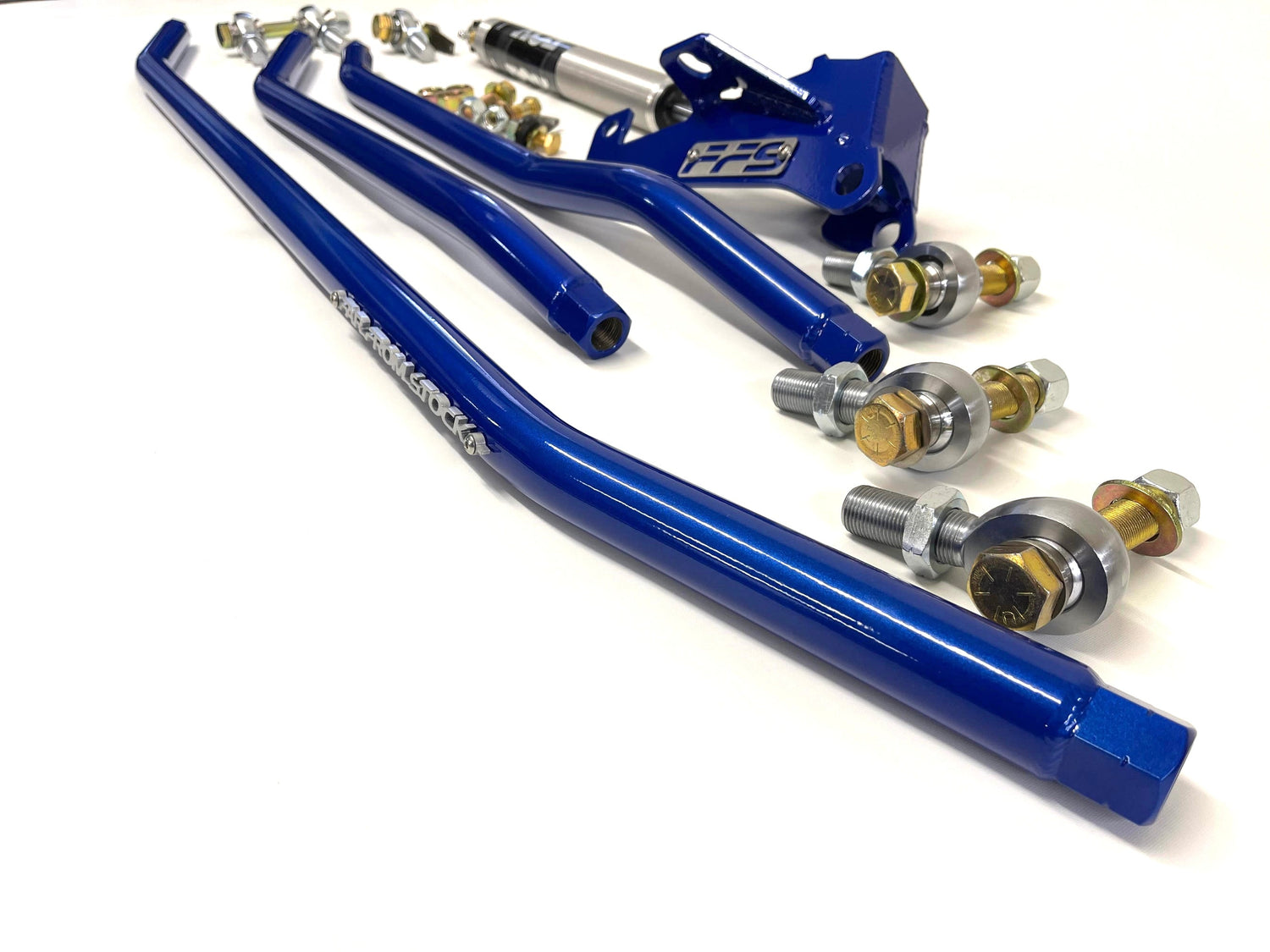

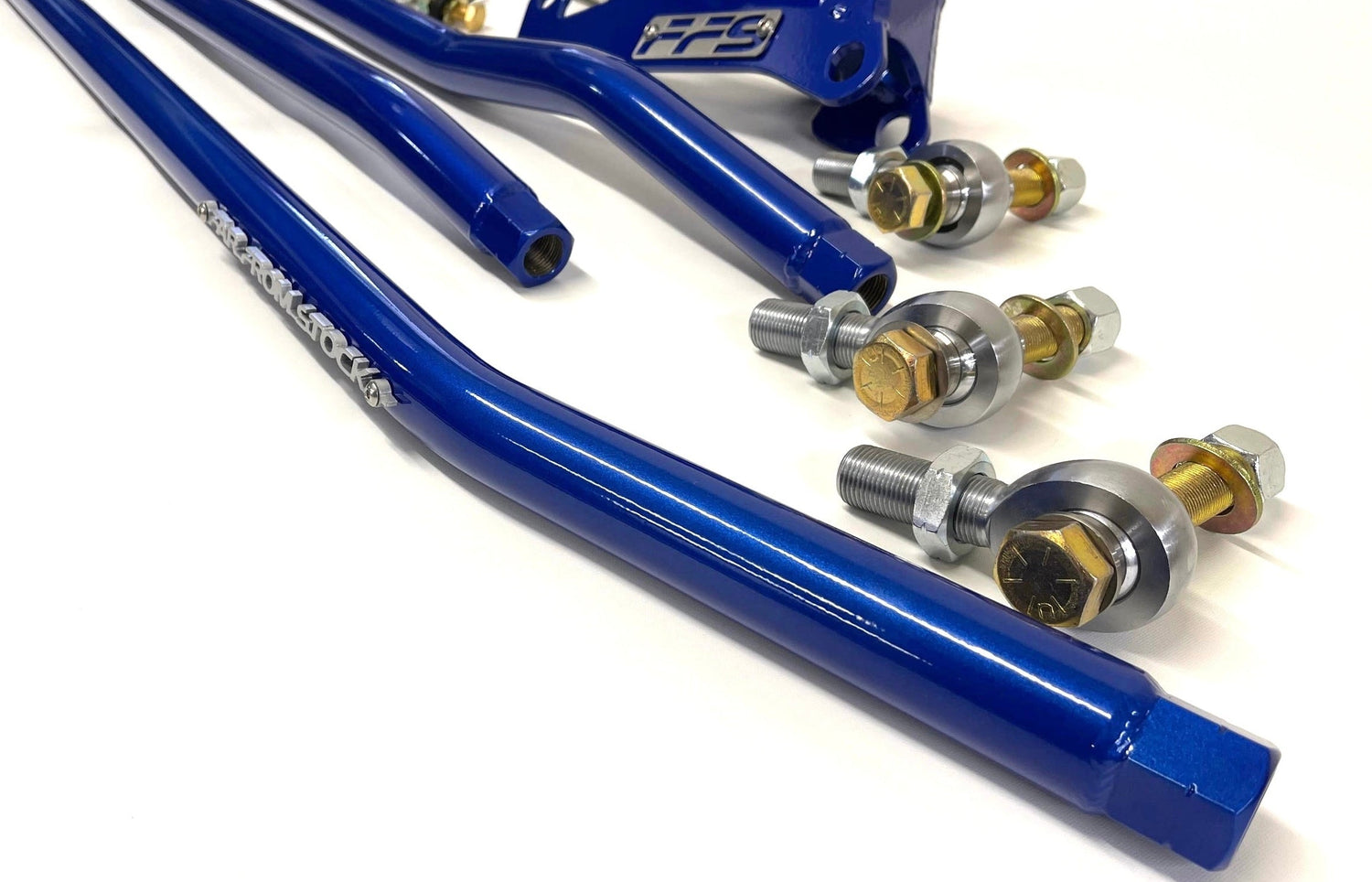

What's Included:

• Tie Rod (1.5” DOM Steel, .250 wall)
• Drag Link
• Track Bar
• Track Bar Drop/Conversion Bracket
• Mounting Hardware (Grade 8, 3/4" bolts)
• Single stabilizer mount (00–02 models only)

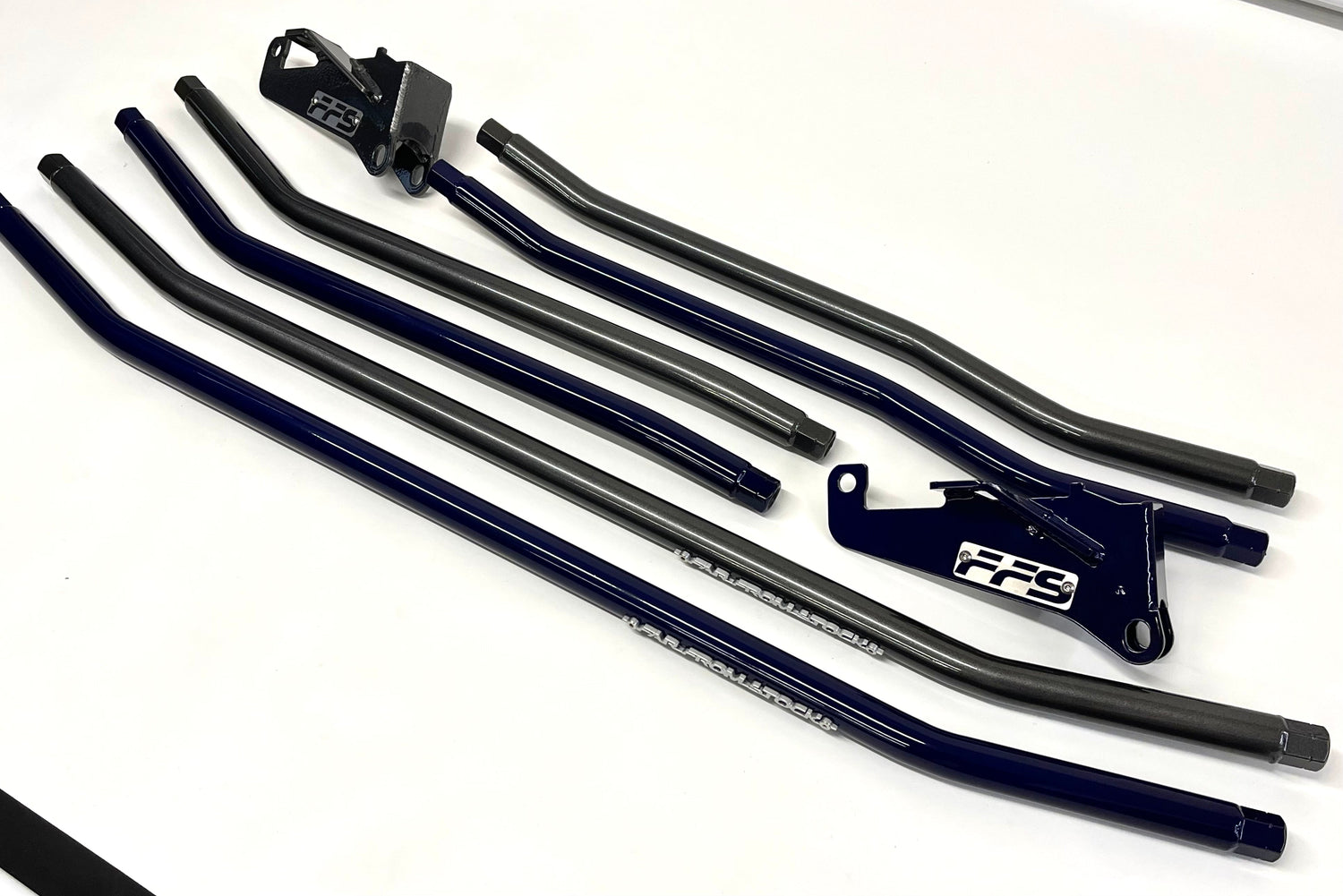

Finish Options:

• Standard: Wrinkle Black Powder Coat
• Optional: Raw Metal – Request at checkout
• Optional: 6500+ Custom Powder Coating Colors (Choose a color here)

Key Features:

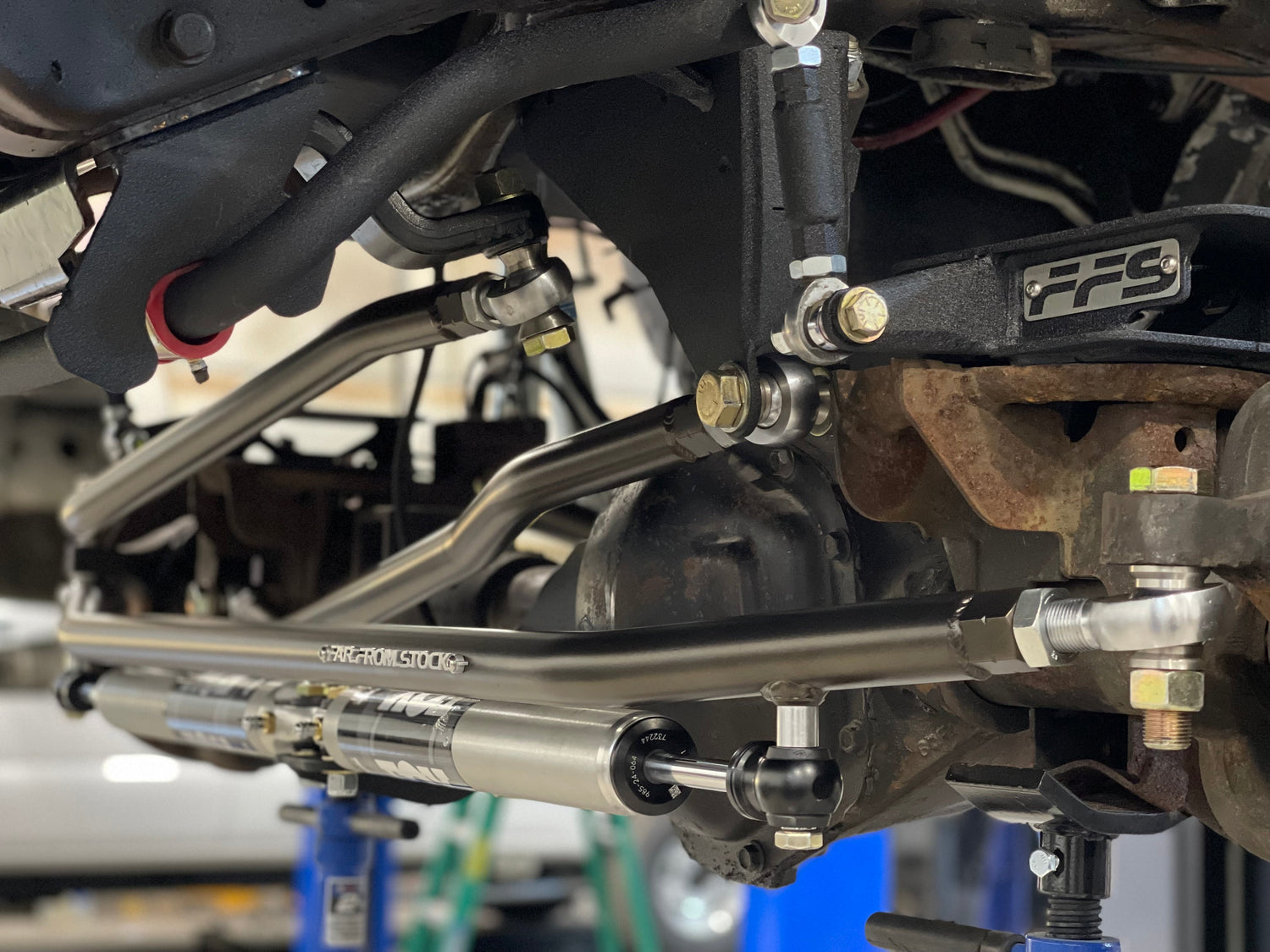

• True crossover steering design with extended track bar

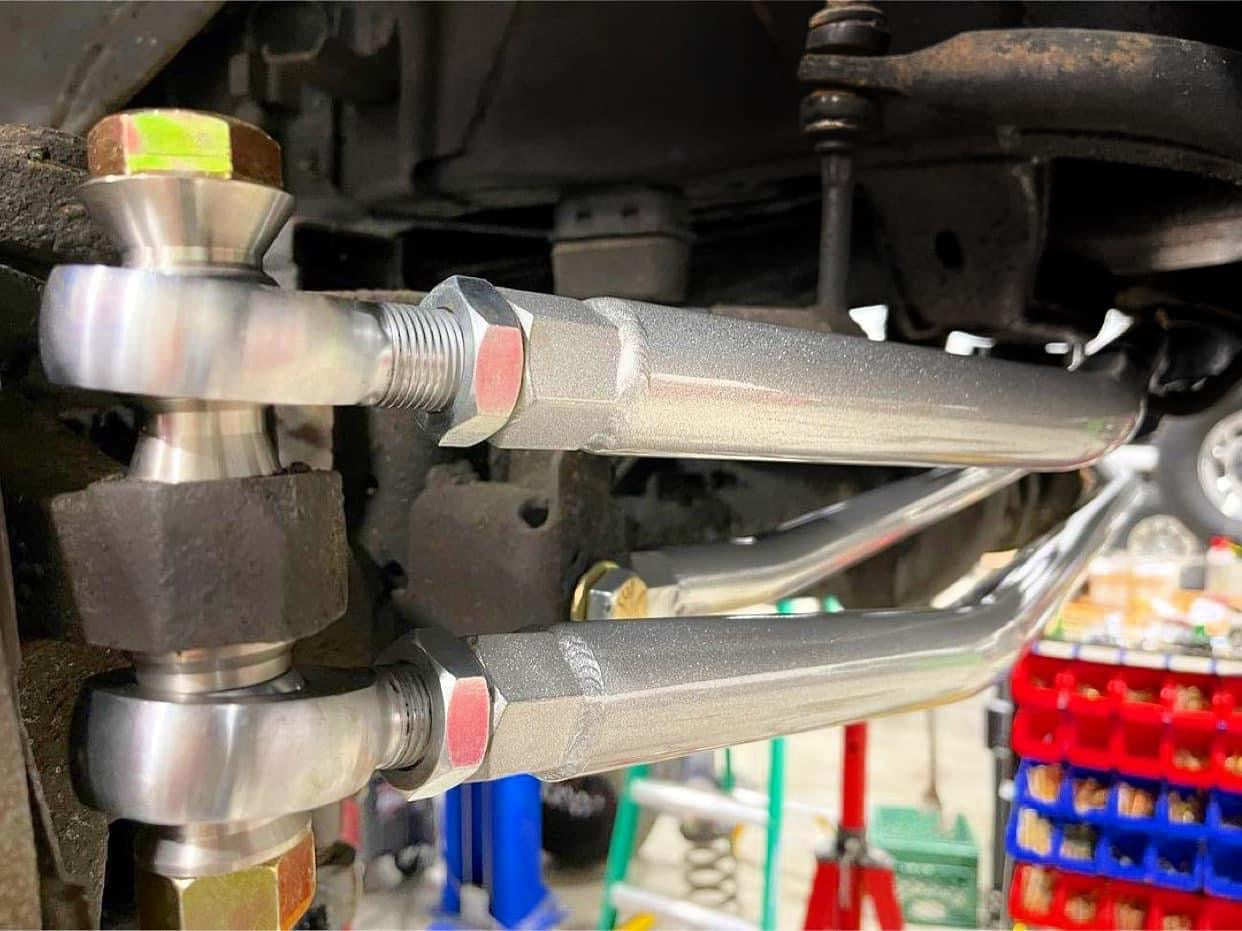

• Massive 7/8” chromoly heat-treated rod ends
• Self-lubricating & sealed race-style joints
• Compatible with air suspension setups
• 3/4” bolt hardware included (drilling required)

Lift Compatibility:

• Lower Drop Bracket: Fits stock – 8” lifts
• Taller Drop Bracket: Fits 6” – 15” lifts

Installation Notes:

• Drilling required (3/4" drill bit and reamer recommended)
• Remove powder coat where jam nuts meet tubing
• Re-torque all bolts and jam nuts after initial driving
• Stock 16” wheels will NOT fit – check clearance on 17”+ wheels with deep backspacing

Optional Accessories:

• Reamer Tool: Available for tapered knuckles and pitman arm
• Boots: Optional for winter/salt protection

Stabilizer Options (Sold Separately):

• 94–99: No single stabilizer option
• 00–02: Single Fox Stabilizer Kit
• 94–02: Dual Stabilizer Kit (2x Fox stabilizers, brackets, hardware)

Important Notes:

• This is a complete engineered system – mixing/matching may cause issues
• Stock-style track bars will NOT work with this kit
• Track bar only orders: No support for bad geometry or poor handling

Ordering Instructions:

1. Add desired kit to cart
2. In checkout notes, include:
   • Year, Make, Model
   • Lift Height
   • Wheel type and spacer info

NOTE: Stock wheels require spacers. Different kits exist for early vs. late 2nd Gen trucks. Select your package and year correctly.

DISCLAIMER: Due to their race-grade design, these parts are considered off-road use only.
