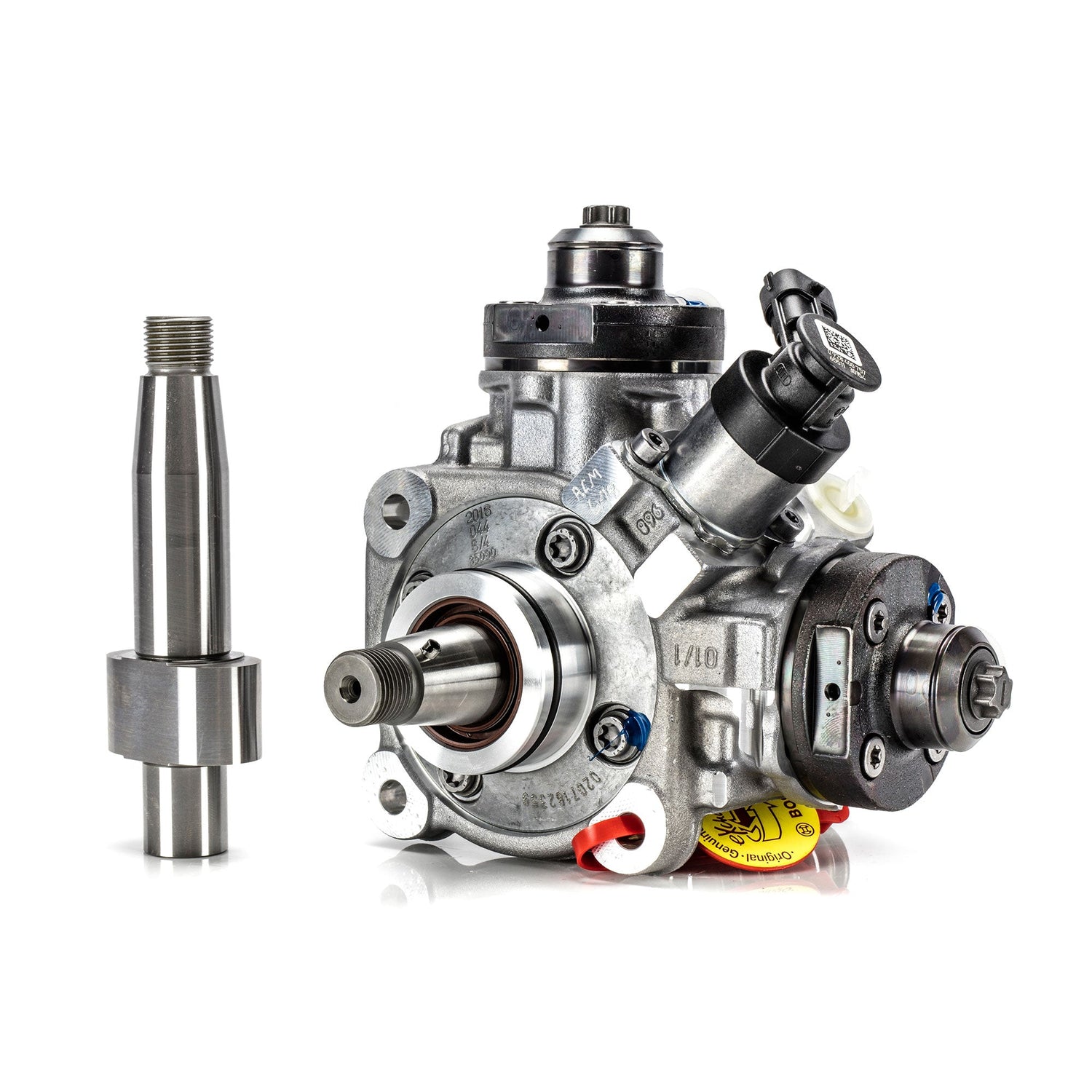

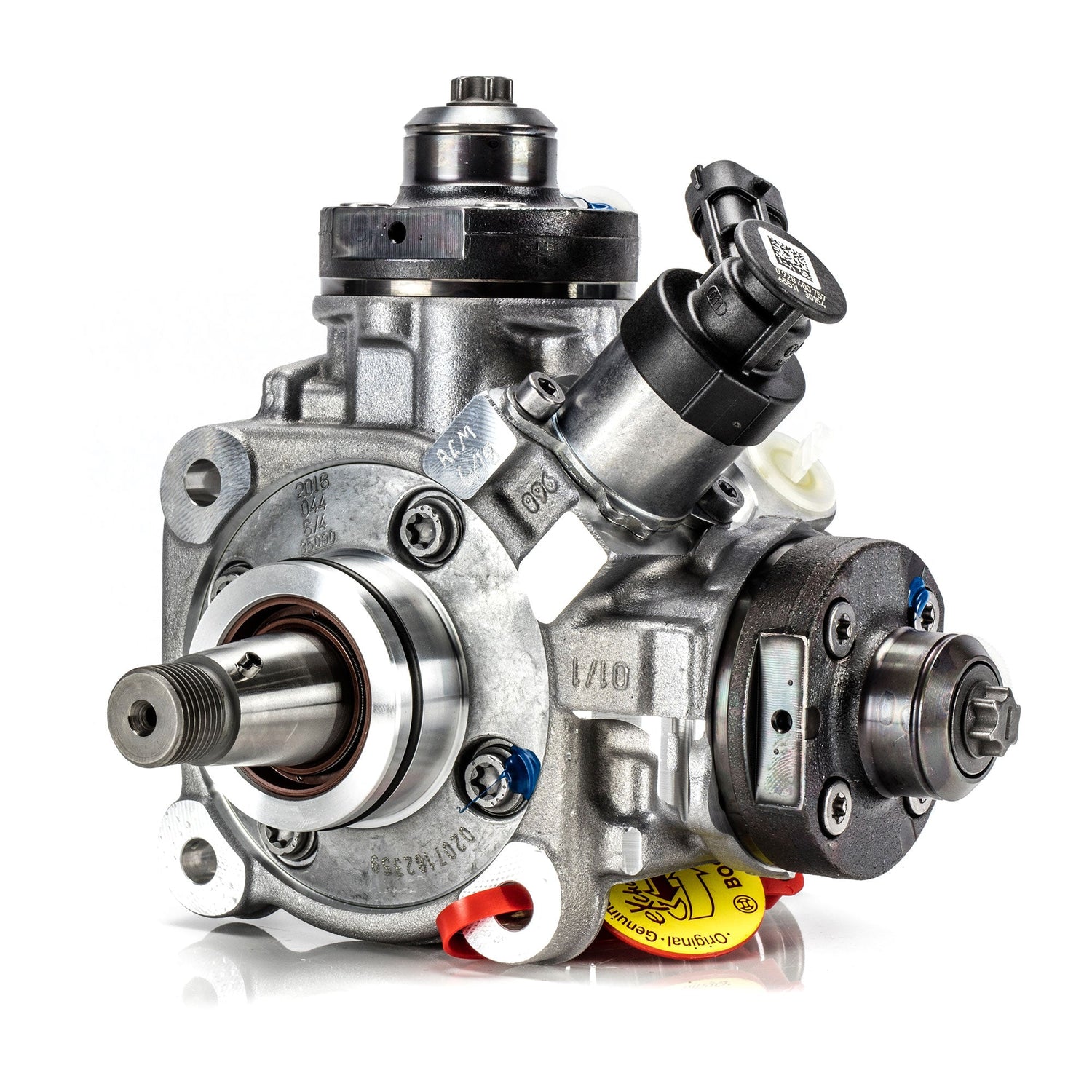

2011- 2025 6.7L Ford Power Stroke CPX Fuel Injection Pump
2011- 2025 6.7L Ford Power Stroke CPX Fuel Injection Pump - 11-19 Model Year / Stock Output / I will send my core in first to avoid the $200 core fee. is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
2011- 2025 6.7L Ford Power Stroke CPX Fuel Injection Pump
2011- 2025 6.7L Ford Power Stroke CPX Fuel Injection Pump - 11-19 Model Year / Stock Output / I will send my core in first to avoid the $200 core fee. is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
2011- 2023 6.7L Ford Power Stroke CPX Injection Pump
• Pinned lifter buckets to prevent rotation and stop failures. Even during a gel.
• New feed port, preventing any contaminated crankcase debris from entering the plungers and barrels. (Built in disaster prevention kit)
Three variations:
11-23 applications with the updated 15-19 pump output. (7.5mm)
25% over for hot tuned trucks (9.5mm)
And the infamous 10.5mm 40% over pump.
This CPX keeps the OEM, four pumps per engine revolution that the Chinese eccentric pumps do not. The OEM Bosch system is timed, and designed to pump to the bank that is requesting fuel (firing). This is to ensure peak nozzle pressure and less harmonics of high pressure fuel, having to cross over via the balance tube, from one rail to the other. Eccentric pumps will skip every other firing event. Two pumps per revolution vs the OEM four..
And just to point out, the whole “US diesel fuel doesn’t have enough lubricity for the CP4.” That’s a lie. I have disassembled, measured and under microscope, inspected pumps with over 500k miles with essentially zero wear.
The flaw was nothing to stop the roller lifter from rotating in a vacuum event. (Gel, filter change, low pressure feed issue.) This is why the LML Duramax pumps drop like flies. There is no lift pump to keep positive pressure on the plungers and barrels.
This allows a slop, or gap between the cam and the lifter roller. Which allows it to turn. Similar to a roller cam in a engine. When there is no lifter guide or link bar. The lifter rotates, destroying the cam and lifters and filling the engine with hardened metal filings. These filings, are what fills your fuel rails and injectors with debris, ruining them.
- BC3Z9A543A
- FC3Q9B395AA
- FC3Z9A543A
- 0986437441
- 0445010804
- 0445010810
- FC3Z9A543A
- 0445010859
- LC3Z9B395AA
