Far From Stock — 2.0" Hub & Wheel-Centric Billet Adapter (8x200 → 8x200, 14x1.5 Studs, 142.1mm Hub / 141.9mm Wheel Bore, DRW)
Must order two for a pair. Pricing is for one wheel adapter only.

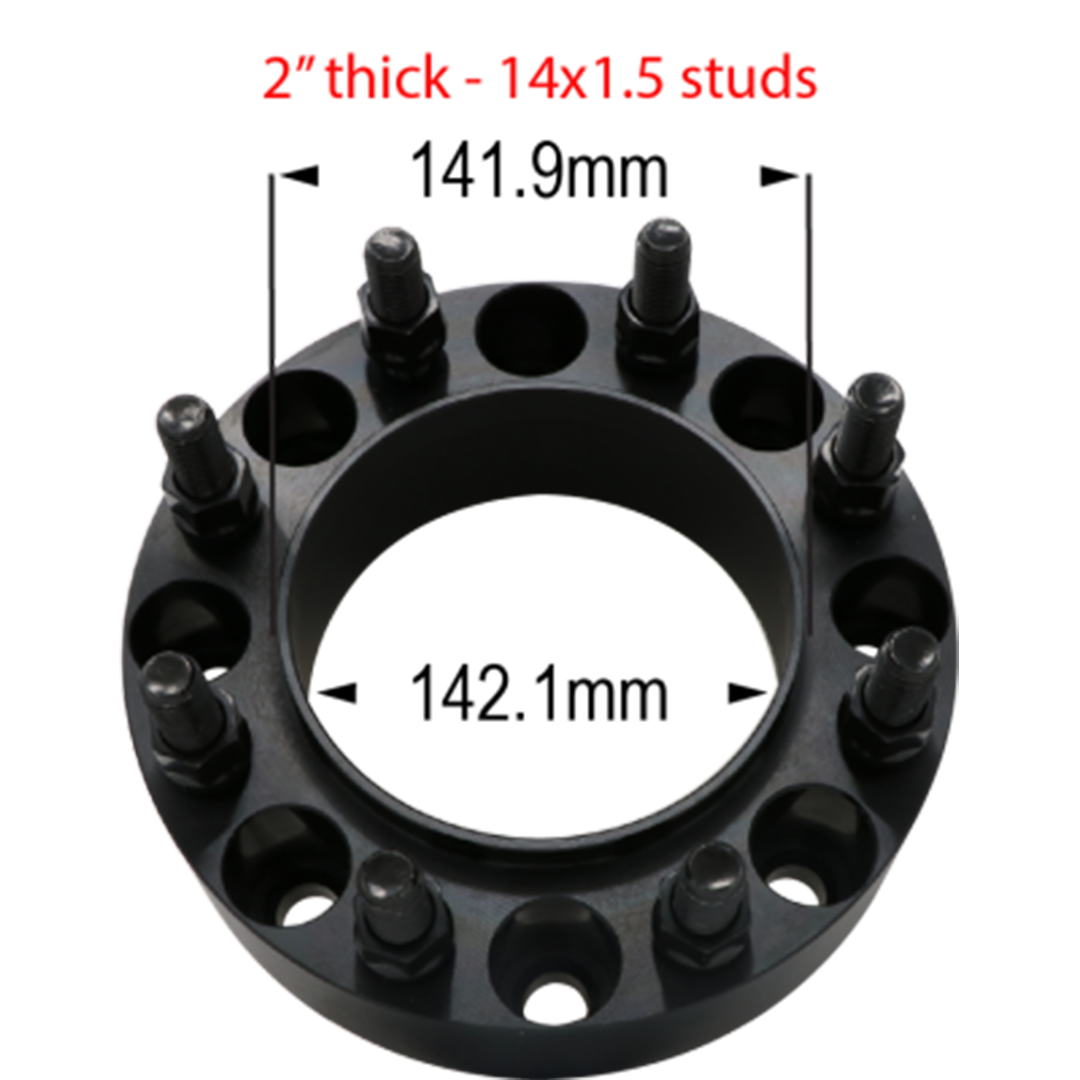

This 2.0" thick hub- and wheel-centric billet adapter is designed for late-model Ram HD dually trucks with the 8x200mm bolt pattern, 14x1.5 studs, a 142.1mm hub bore, and a 141.9mm wheel bore. Same-pattern design (8x200 → 8x200) maintains OEM geometry while providing additional clearance and stance. For DRW (dual rear wheel) applications only.
Vehicle Fitment (YMM)
| Make | Model | Years | Notes |
|---|---|---|---|
| Ram | 3500 Dually (DRW) | 2019–Present | 8x200mm bolt pattern, 14x1.5 studs, 142.1mm hub bore / 141.9mm wheel bore. DRW only. |
Key Details
- Bolt Pattern: 8x200mm (vehicle) → 8x200mm (wheel)
- Stud Size: 14x1.5 (M14x1.5)
- Hub Bore: 142.1mm
- Wheel Bore: 141.9mm
- Thickness: 2.0"
- Application: Ram 3500 DRW only (not SRW)
- Type: Hub- & wheel-centric billet aluminum adapter, same-pattern (not a conversion)
Install Notes
- Professional installation recommended; test-fit before final mounting.
- For use on dually rear axles only (DRW).
- Use correct lug nuts for hub-side (factory studs) and wheel-side (adapter’s 14x1.5 studs).
- Torque to spec and re-torque after 50–100 miles, then periodically.
