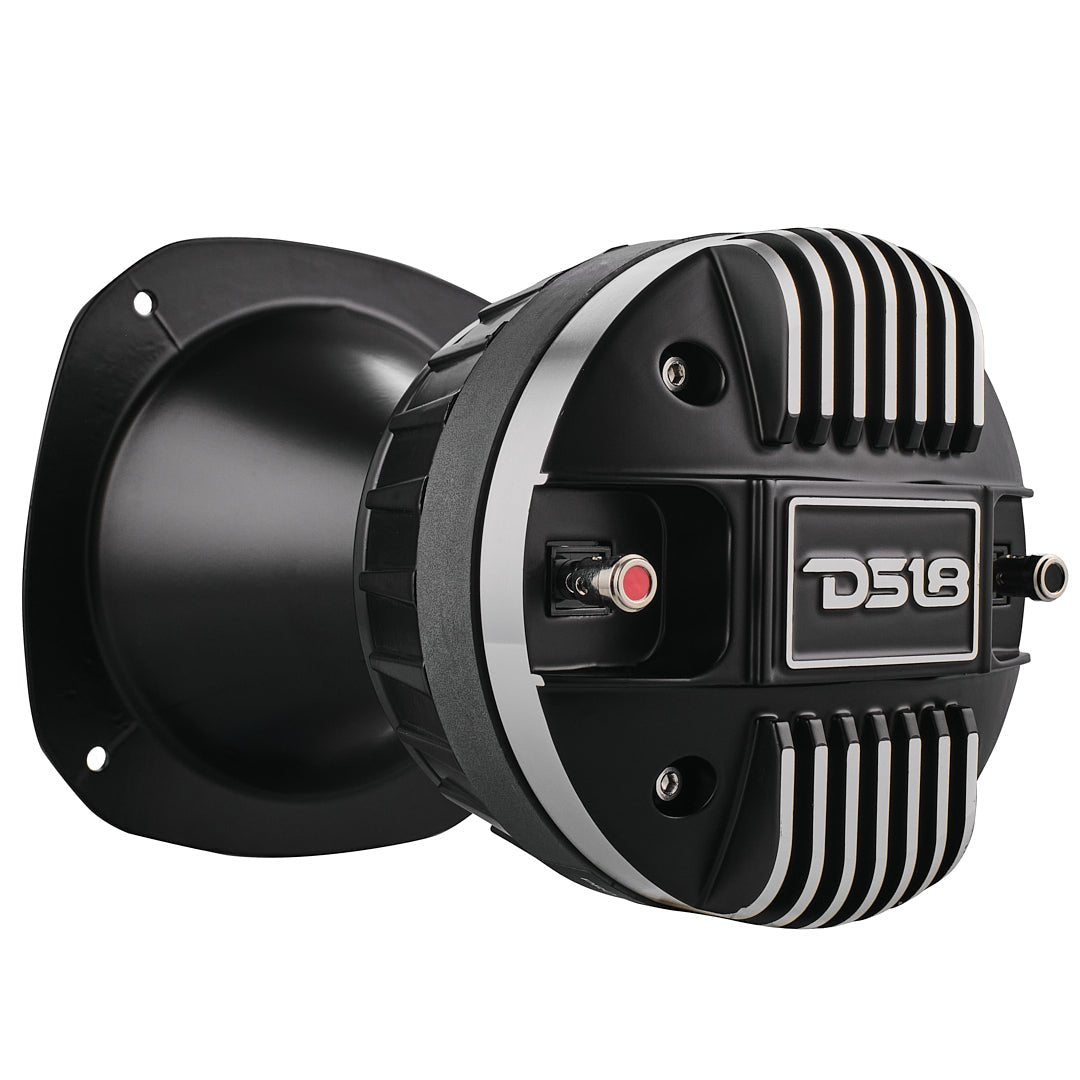

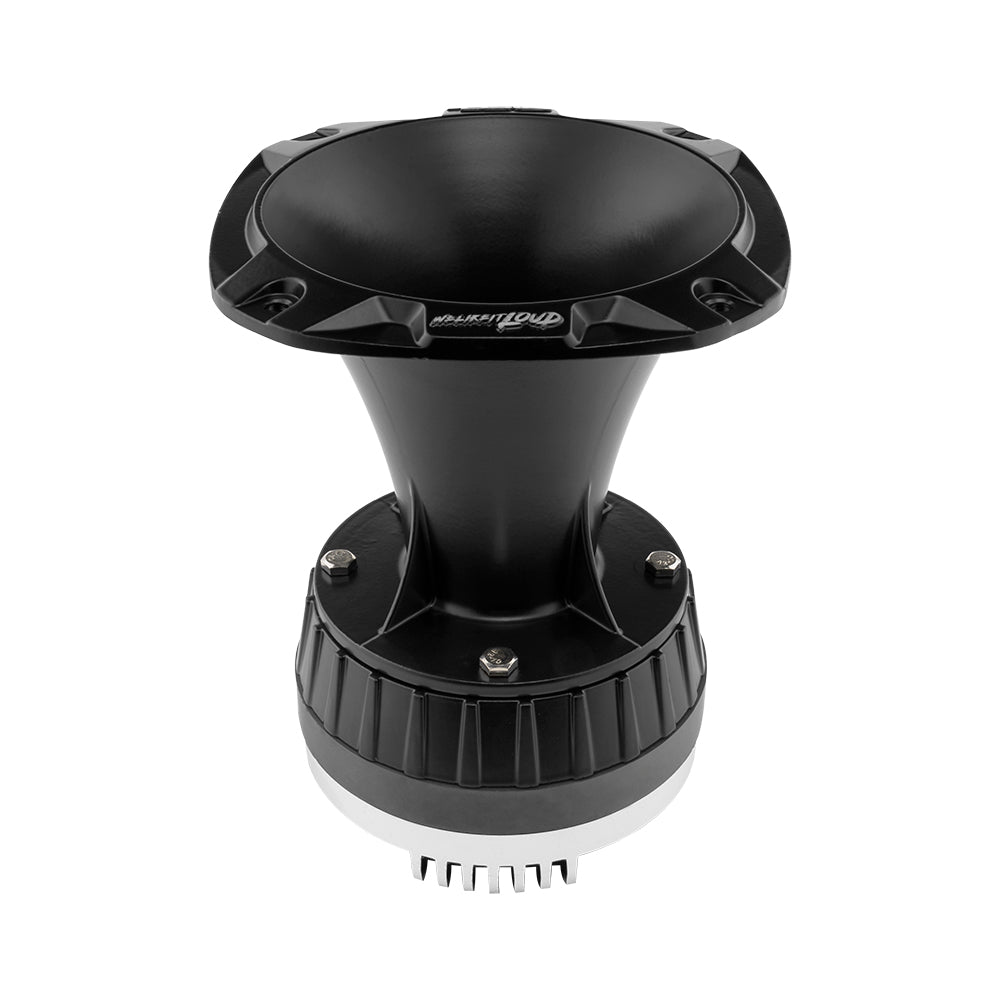

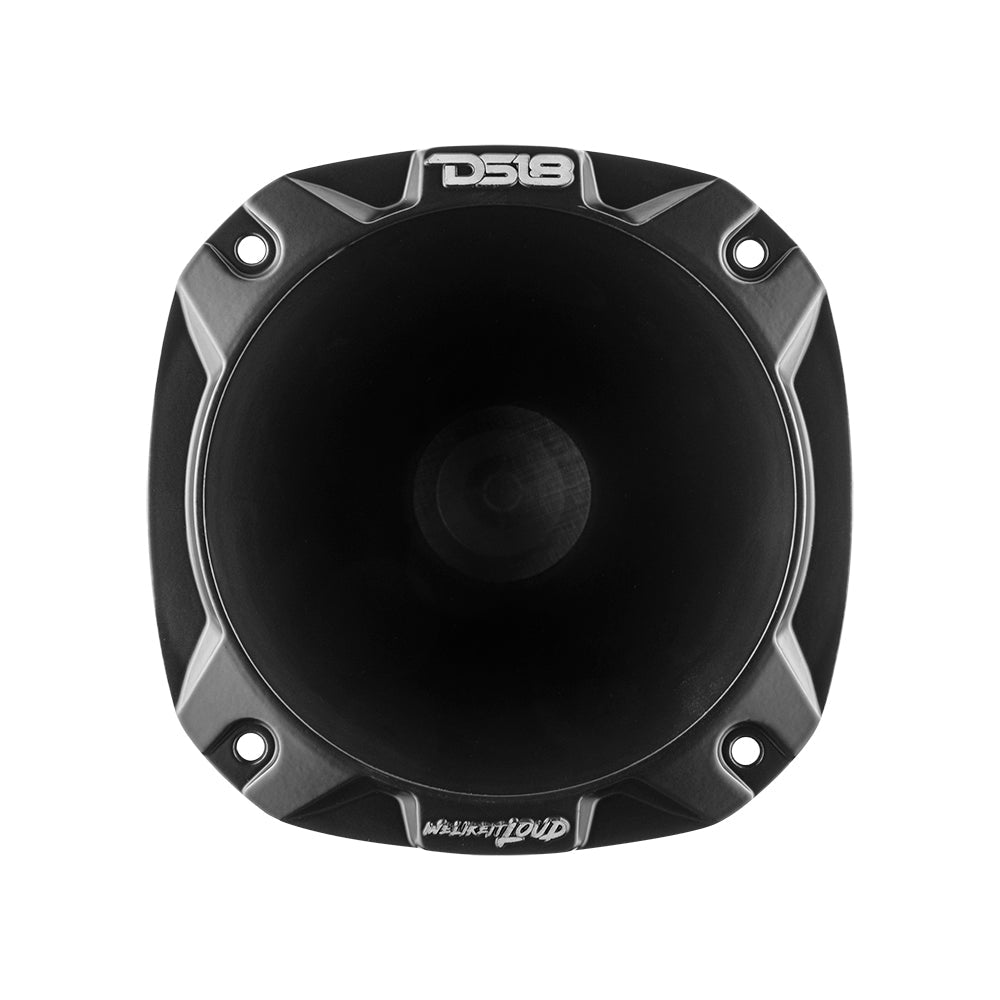

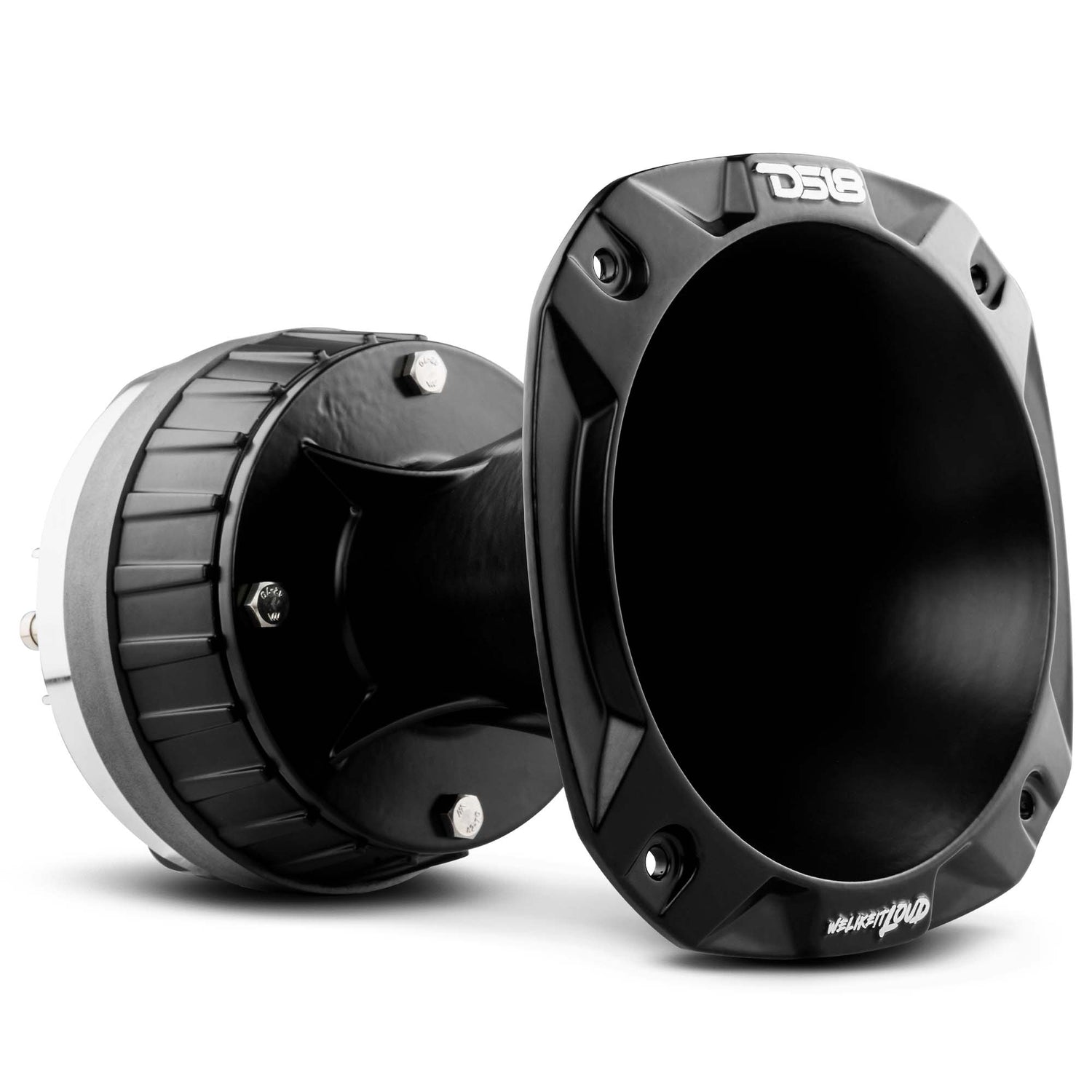

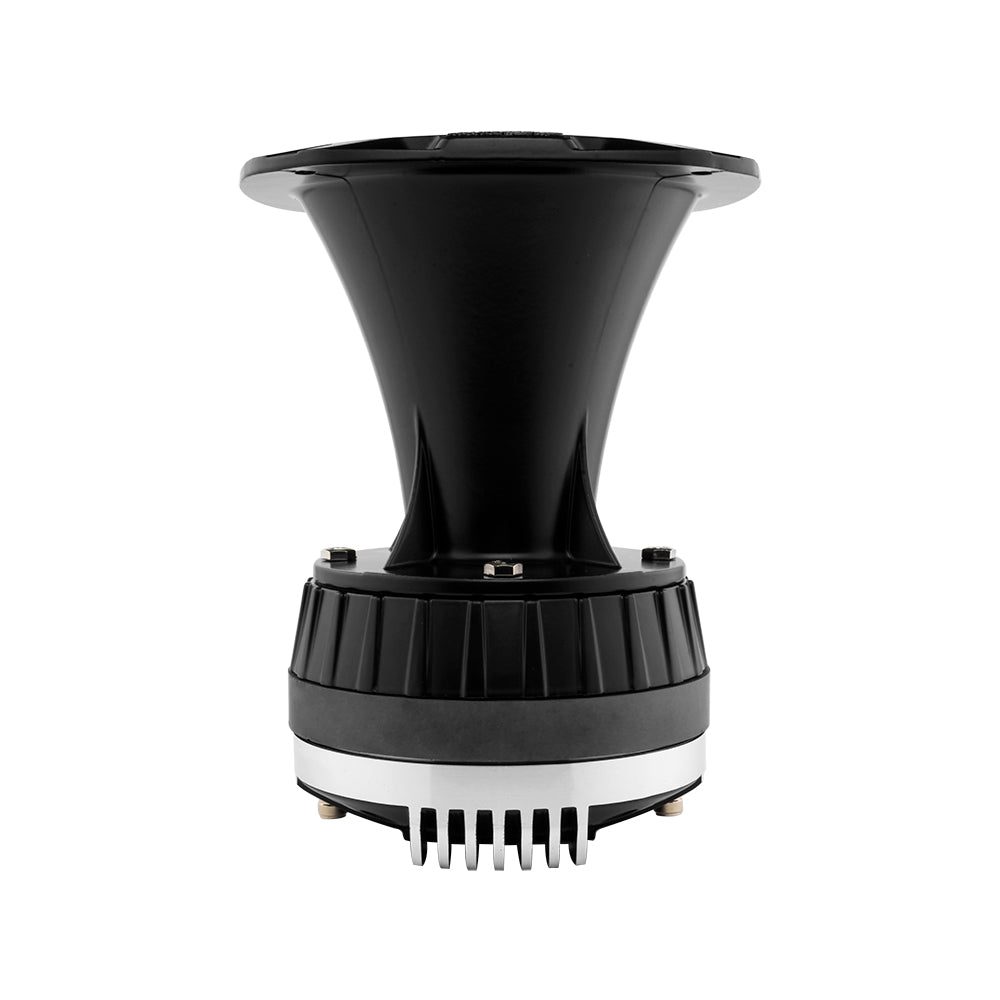

2" Driver with Spacer And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)
2" Driver with Spacer And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK) is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
2" Driver with Spacer And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK) is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
DS18 PRO-DKH1X 2"Bolt On Throat Compression Driver with Spacer, 2" Throat Titanium VC and PRO-HA102/BK Horn 640 Watts 115dB 8 ohm Mounting Depth 7.9"
Everyone is looking for louder horns and what they can do to tweak them. We make that easy for you with no guesswork with the DKH1X. This full size driver includes the DS18 DKH1 redesigned to be louder with the included dB spacer to increase the drivers overall sensitivity. Plus our newly redesigned shorty throat so you only need 7.9 inches depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and Peak at 640w you will be sure to draw everyone's attention to your audio!
Highlights
- DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
- Aluminum full size throat with 111dB sensitivity spacer
- DKH1 Driver with an AES rating of 160 watts and peak of 640w for super loud and vibrant highs with a Titanium 8 ohms voice coil.
- 5.7 inch mounting depth and 6 inches overall depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.
Technical Details
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| AES Power Handling | 160W |
| Sensitivity | 111dB |
| Frequency Response | 630Hz-20KHz |
| Recommended HI Pass Crossover | 900 Hz |
| Motor: | |
| Voice Coil Diameter | 2.03"/51mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35oz |
| Measurements: | |
| Overall Diameter | 7"/180mm |
| Overall Depth | 8.3"/211mm |
| Bolt Pattern/Type | 5.5mm hole-6.3"/161 mm Diameter |
| Mounting Depth | 7.9"/201.5mm |
| Mounting Hole Diameter | 5.7"/145mmm |
