2 AWG EXCELENE WELDING BATTERY CABLE BLUE 600V MADE IN USA EPDM (BUY PER FOOT)

2 AWG HEAVY DUTY EXCELENE BLUE WELDING CABLE
COLOR: BLUE
(BUY PER FOOT)
MADE IN THE U.S.A

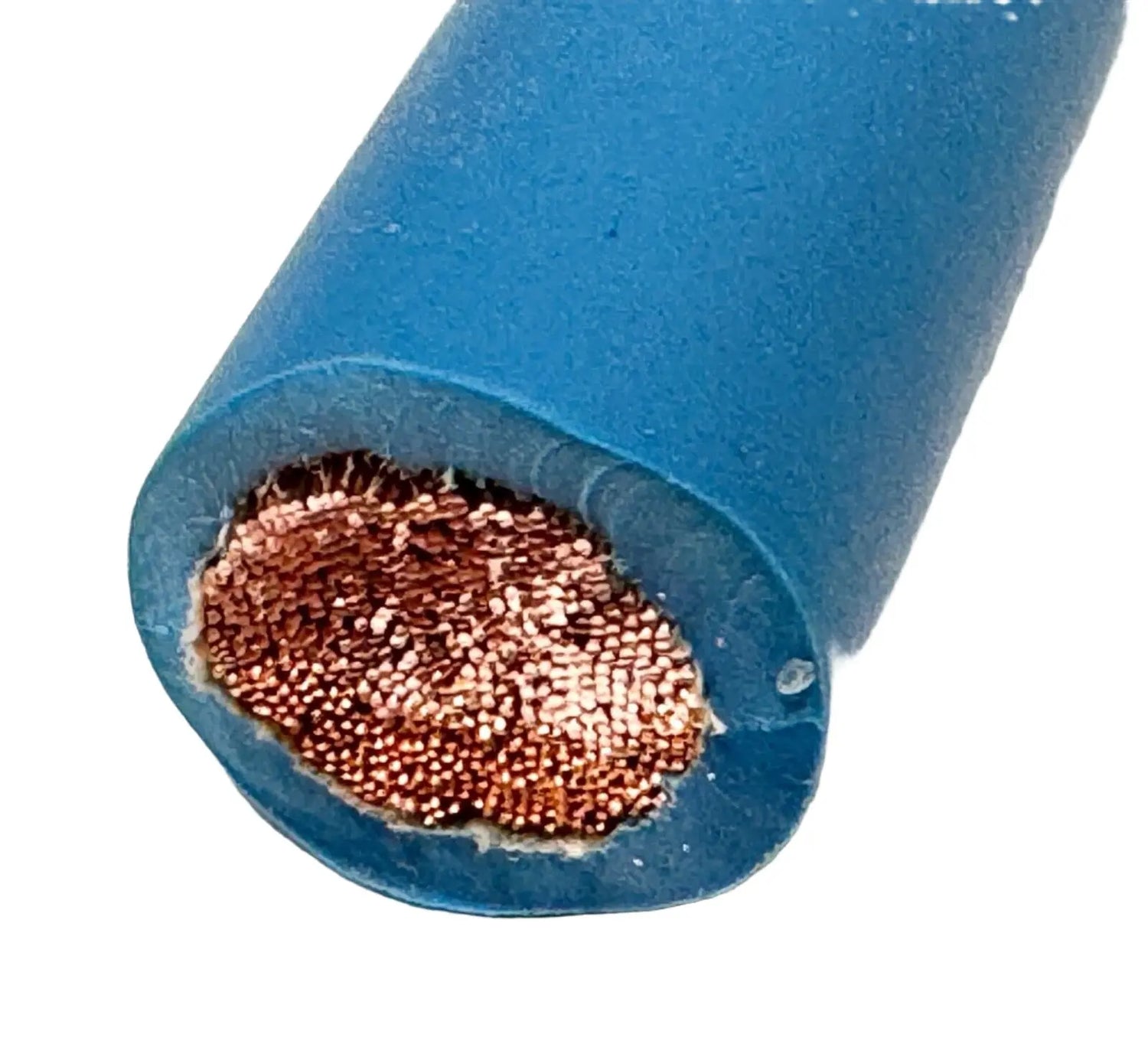

CONSTRUCTION: This cable consists of one bare copper
conductor with integral insulation and jacket.

APPLICATION: Welding Cable Applications
Construction Parameters:
Conductor #2 Bare Copper
Stranding 651 strands
Insulation Material EPDM
Separator/Wrap Tape Separator
Insulation Thickness 0.064'' Nom.
Insulated Conductor Diameter 0.420'' Nom.
Number of Conductors 1

Electrical Properties:
Temperature Rating -50OC to 105OC
Operating Voltage 600V Max
DC Resistance per Conductor @ 20OC 0.167 Ohms/1M'

Features:

Temperature Rating -50° C to 105° C
Ethylene Propylene Rubber (EPR)
Annealed stranded bare copper per ASTM B-172
Foot marked for easy length identification
Ozone, sun, weather, and chemical resistant

Applications:
May used in accordance with National Electric Code Article
630 Electric Welders.
Designed for use as welding leads from the secondary side of
the power source - typical of arc welders and welding
generators
Additional uses may include flexible lead cable; electrode
to welder unit, battery cables, and temporary and permanent
lead cables

FEATURES

* RESISTS ABRASION, CUT, TEARS, FLAME, GREASE, OIL AND ALSO WATER.
* NATIONAL ELECTRICAL CODE ARTICLE 630 ELECTRIC WELDERS.
* 600V RATED
* ROHS COMPLIANT
* 105C TEMP
* CAN BE USED IN FLEXIBLE LEAD CABLE, ELECTRODE TO WELDER , BATTERY CABLES AND TEMPORARY AND PERMANENT LEAD CABLES AND ETC.
* MADE IN THE USA.
