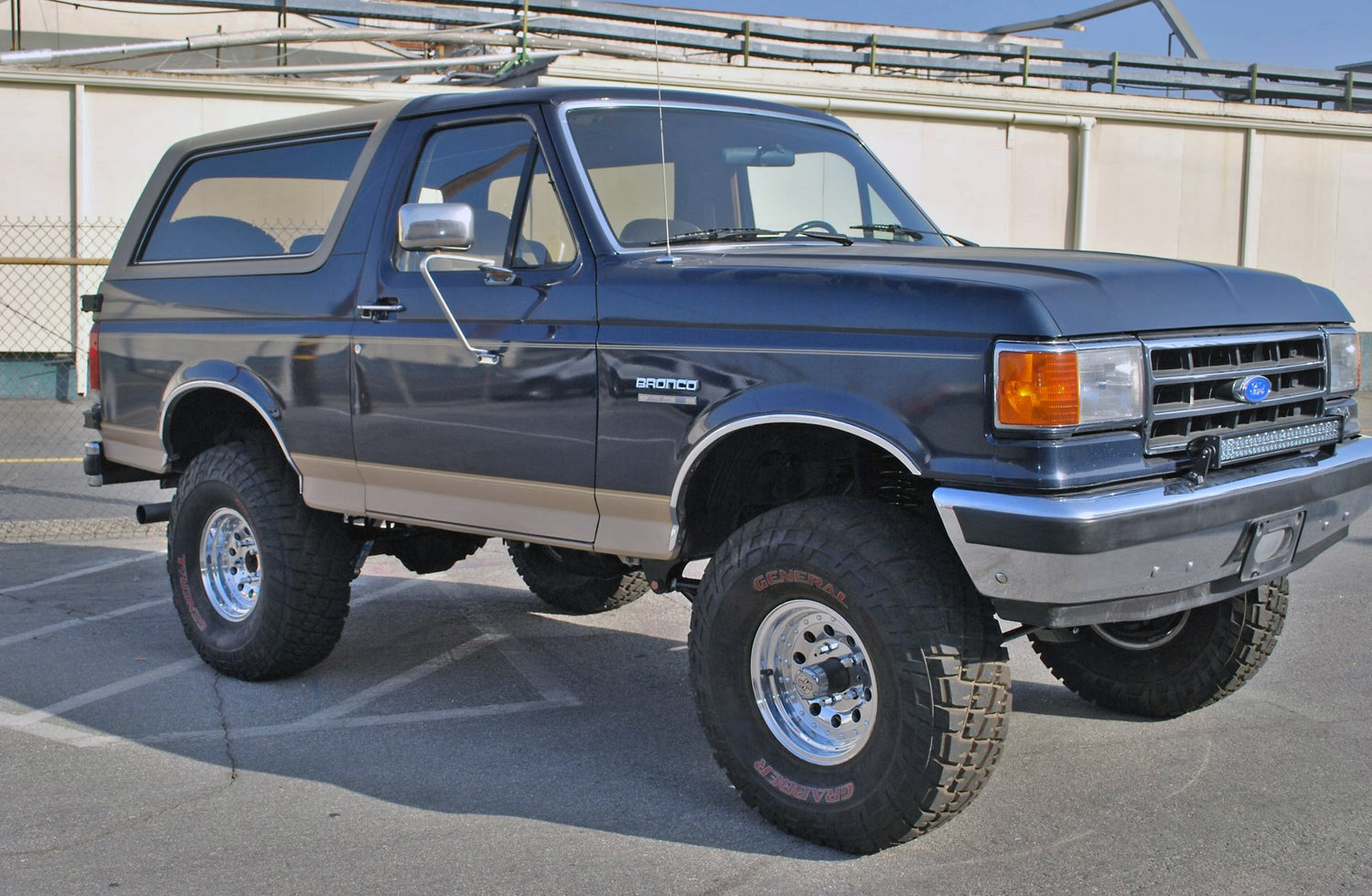

(1980-1997) Solo Motorsports Bronco & F150 Mid-Travel Suspension Kit / Stage 1

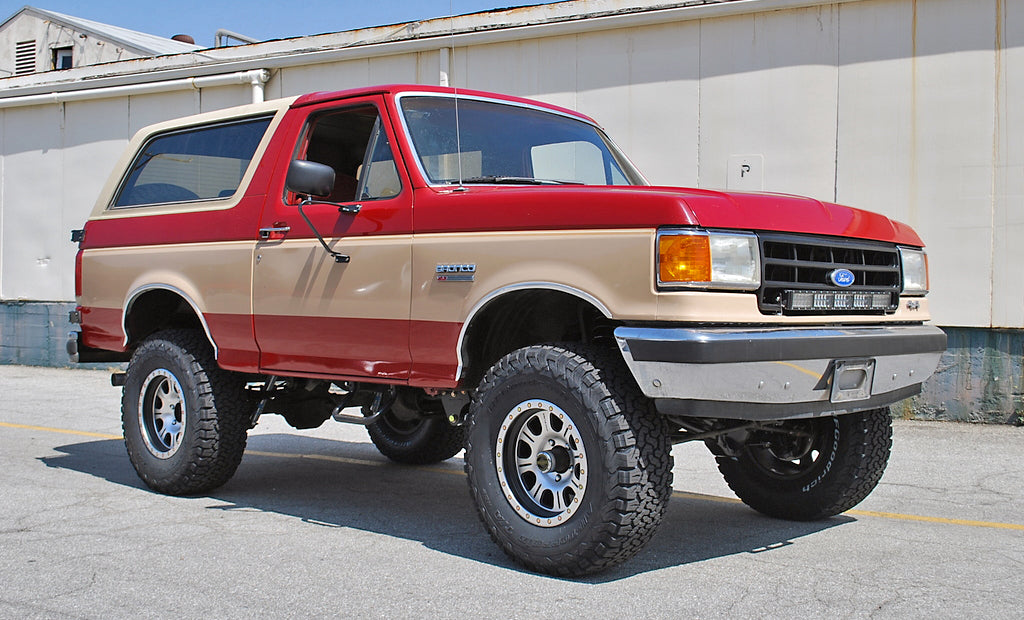

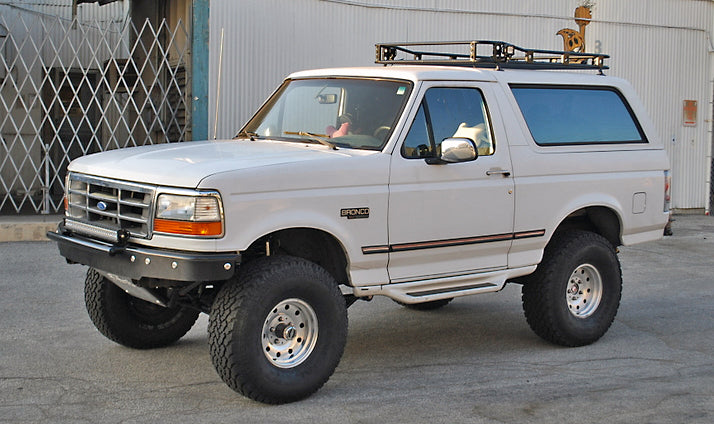

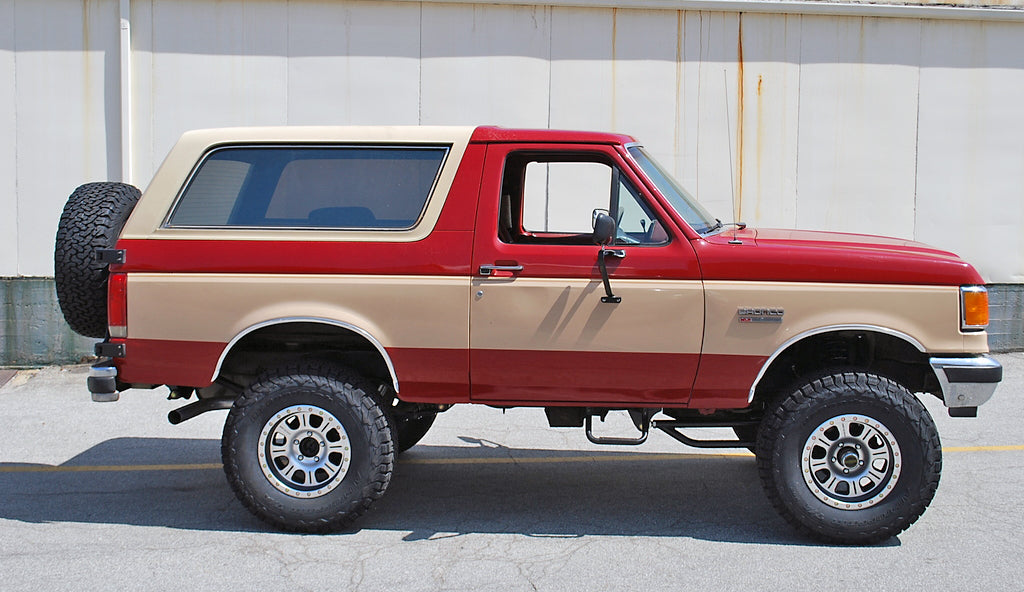

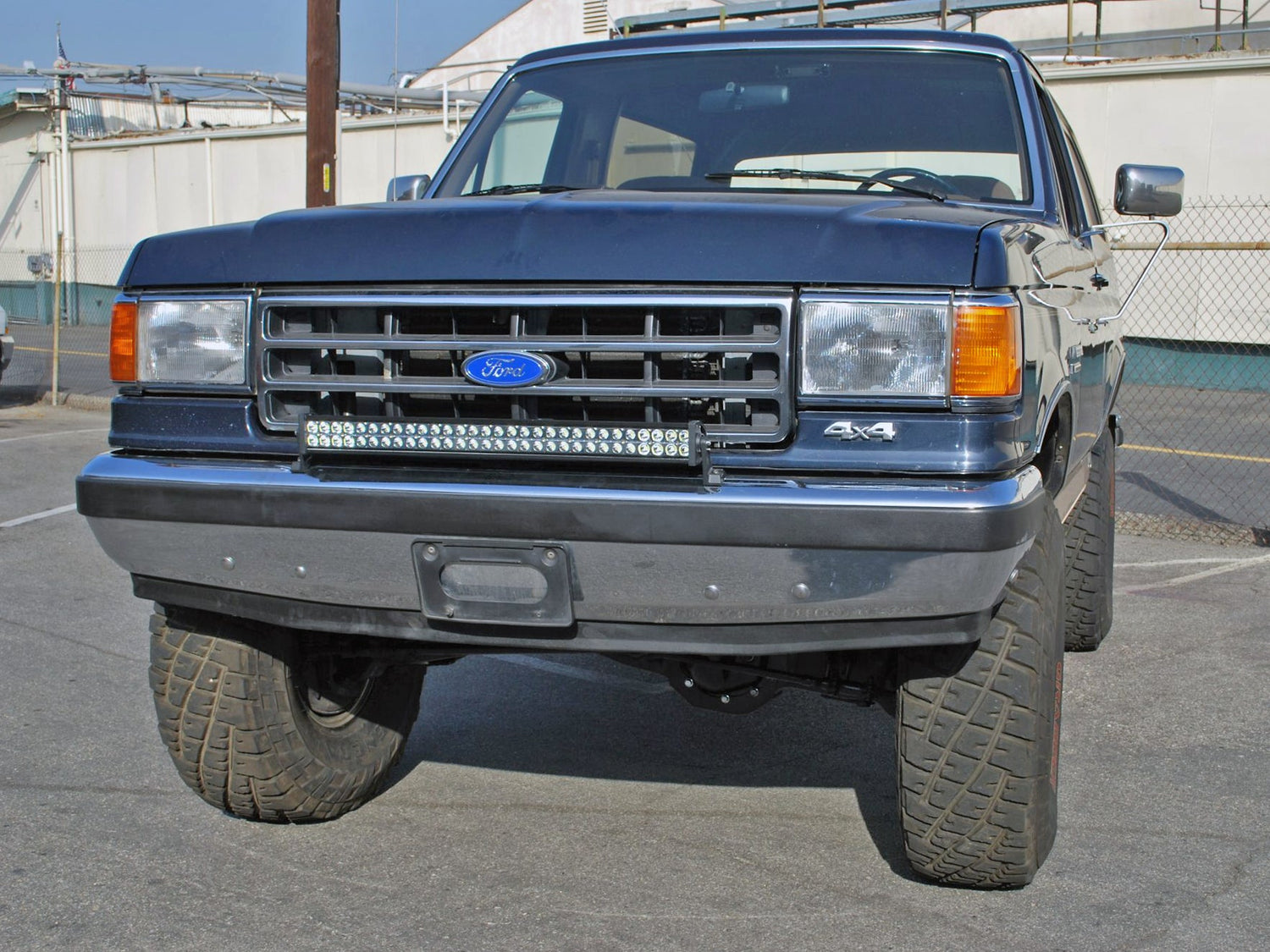

The 1980-1996 Ford Bronco and F-150 Mid-Travel Kit / Stage 1 Kit, is a high performance mid-travel front TTB suspension upgrade for Ford Broncos and F-150 TTB. The Stage 1 kit provides 4 inches of lift and 12 inches of usable suspension travel. This off-road suspension kit will dramatically improve the handling of your Ford Bronco/F-150 on the street and in the dirt .

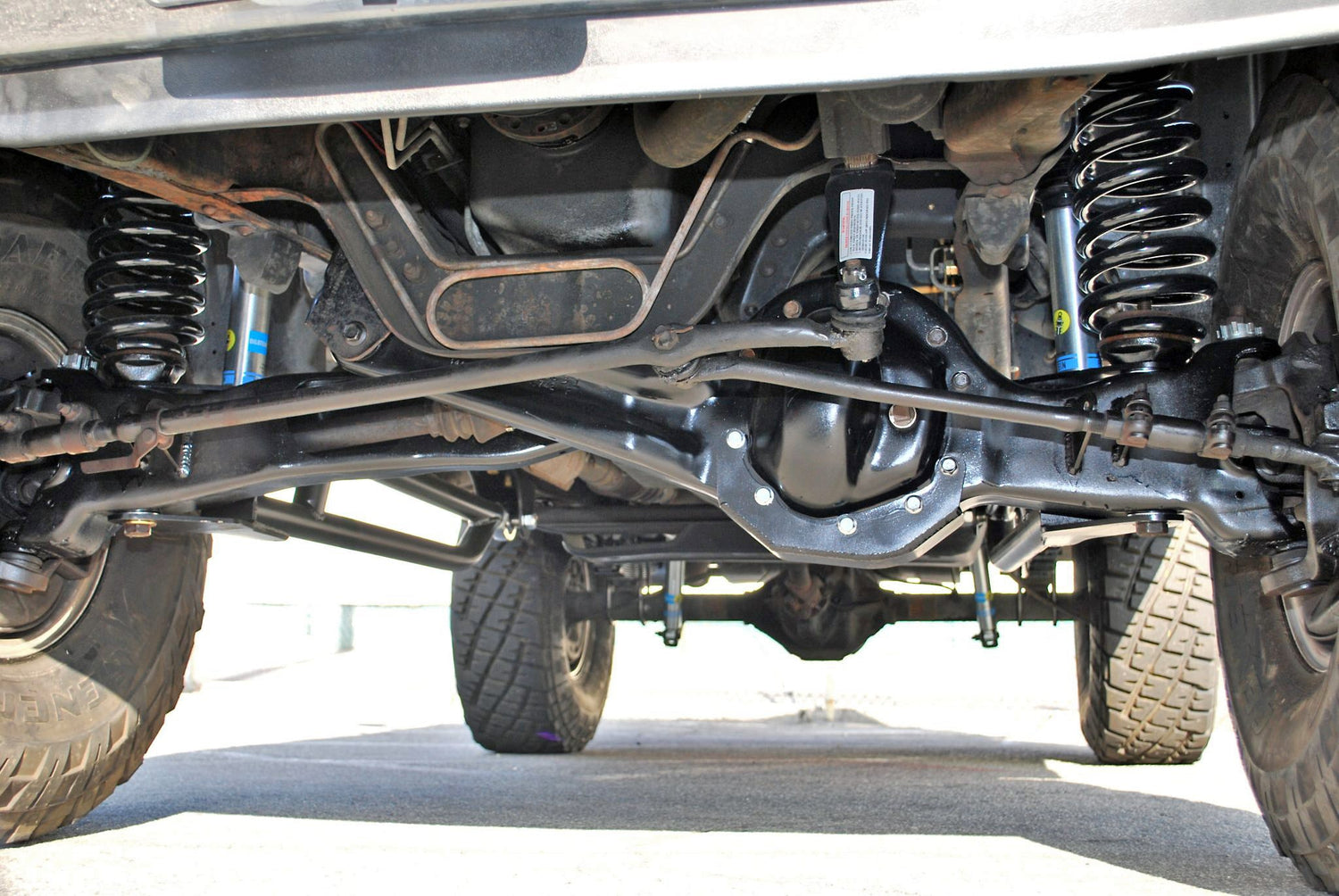

The Dana 44 TTB Beams are “Cut N’ Turned” to allow for proper camber alignment with the 4″ coils.  The 1.25” Extended Radius Arms are equipped with heim joints and bring the vehicle’s camber to the correct value.

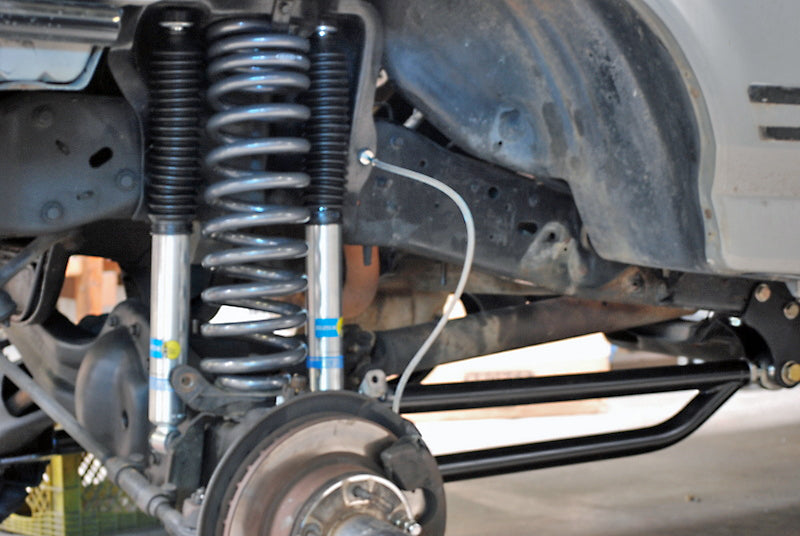

The Bronco Mid-Travel Kit will Include a set of heavy-duty extended stainless brake lines for the front and rear, and a set of Bilstein 5100 shocks specifically valved and configured for your Bronco or F-150.  A secondary shock option is also available (see pics).

Specs

• Front suspension travel approx.: 12 in
• Front suspension lift approx.: 4 in
• Recommended tire size: 35 in
• Fiberglass required: No
• Driveshaft modification required: No
• Made in the U.S.A.

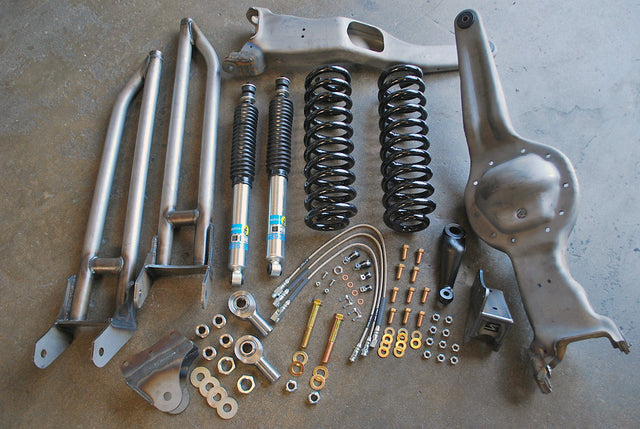

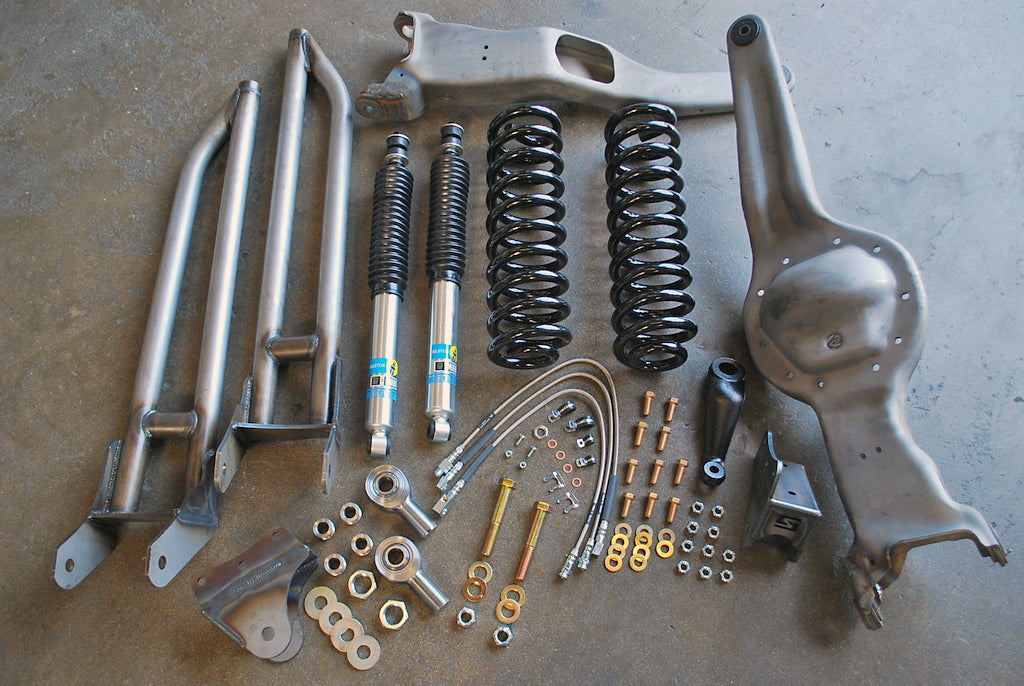

Bronco Mid-Travel Kit Includes

• Dana 44 Cut N’ Turned TTB Beam Work (core charges apply)
• 4″ Coils
• FK 1.25″ heim joints
• Extended Radius Arms
• Pivot Boxes
• 17-4 Stainless Steel Misalignment Spacers
• Grade 8 Hardware
• 3-Piece Braided Steel Extended Brake Line Kit (front and rear)
• Alignment Cams (front)
• Drop Pitman Arm
• Set of Bilstein 5100 Shocks (behind the coils) or 4 Bilstein 5100 Shocks (in front and behind the coils), depending on option.
• Includes all necessary mounting tabs and hardware.
