12MB1500FT 12" MIDBASS LOUDSPEAKER
12MB1500FT 12" MIDBASS LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
12MB1500FT 12" MIDBASS LOUDSPEAKER
12MB1500FT 12" MIDBASS LOUDSPEAKER is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The PRV 12MB1500FT has an excellent linear response, well controlled down to 75 Hz, which makes it a great option for 2-way cabinet systems that require strong BL magnet force and midbass punch. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.

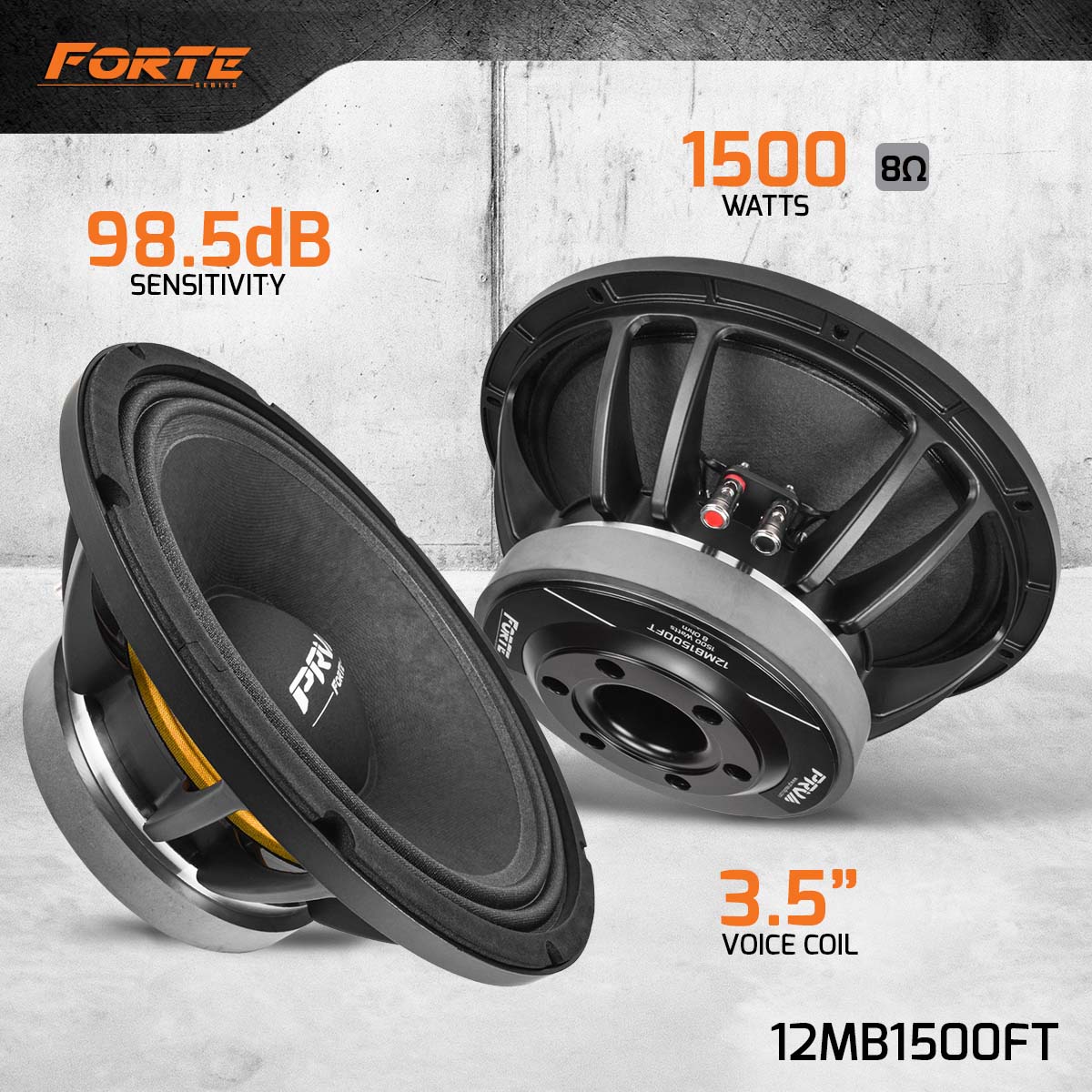

- High BL factor and Xmax for outstanding Low output
- Rated at 1500 watts RMS Continuous Program Power
- 98.5 dB sensitivity, which makes it capable of generating a lot of output!
- 3.5″ Inside/Out CCAW voice coil wound on fiberglass former for hi-temp performance, 8 Ohm
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 750 Watts |
| Continuous Program Power (RMS)** | 1500 Watts |
| Max Peak Power*** | 3000 Watts |
| Sensitivity 2.83V at 1m | 98.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
90 Hz 12db Per Octave Crossover |
| Frequency Response | 75 – 5,000 Hz |
| Voice Coil Diameter | 3.5″ (89 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 17.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 62.37 l |
| Excursion (mathematical)*** | Xmax | 6.00 mm |
| Free Air Resonance | Fs | 57.2 Hz |
| Mechanical Factor | Qms | 10.87 |
| Electrical Factor | Qes | 0.37 |
| Total Factor | Qts | 0.36 |
| Cone Area | Sd | 585 cm² |
| Mechanical Mass | Mms | 59.32 g |
| Bl Factor | Bl | 17.27 Tm |
| Dc Resistance | Re | 5.2 Ohm |
| Inductance | Le | 0.963 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 51.31 g |
| Mechanical Compliance | Cms | 0.130 mm/N |
EXTRA INFO

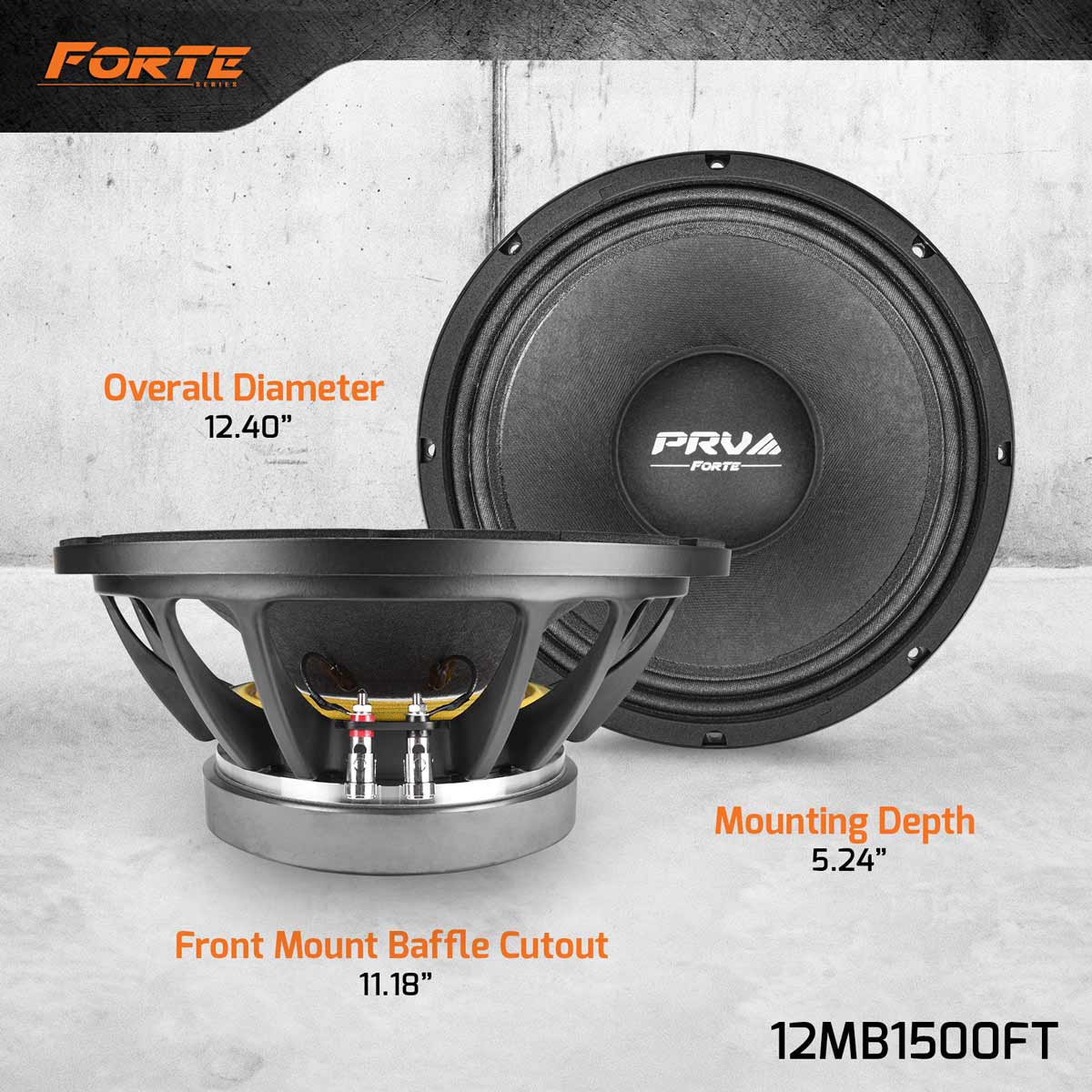

| Overall Diameter | 12.40” (315 mm) |
| Front Mount Baffle Cutout | 11.18” (284 mm) |
| Mounting Depth | 5.24”(133 mm) |
| Overall Depth | 5.87”(149 mm) |
| Net Weight | 16.32 Lbs (7.4 kg) |
| Shipping Weight | 17.55 Lbs (8 kg) |
| Carton Dimensions W x L x H | 13.50”x 13.50” x 7” (343 x 343 x 178 mm) |
