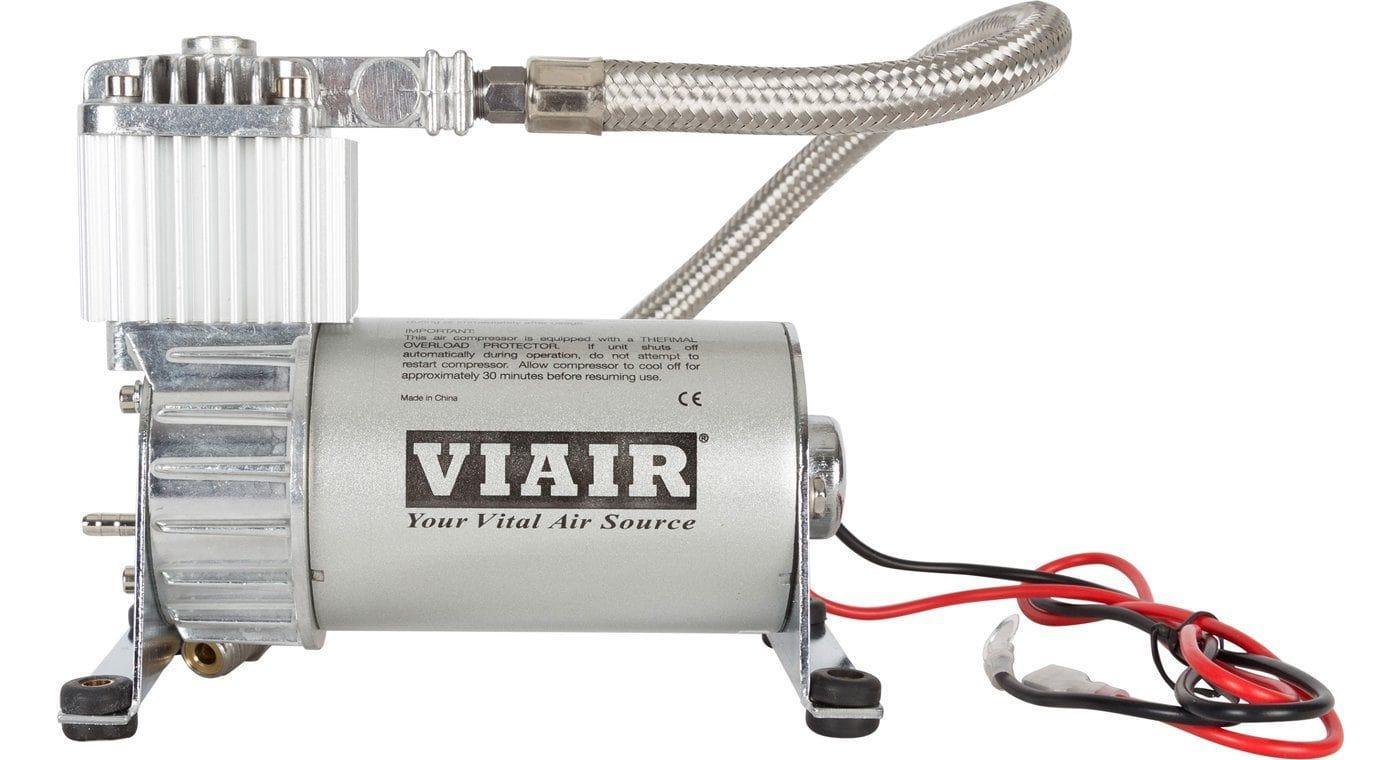

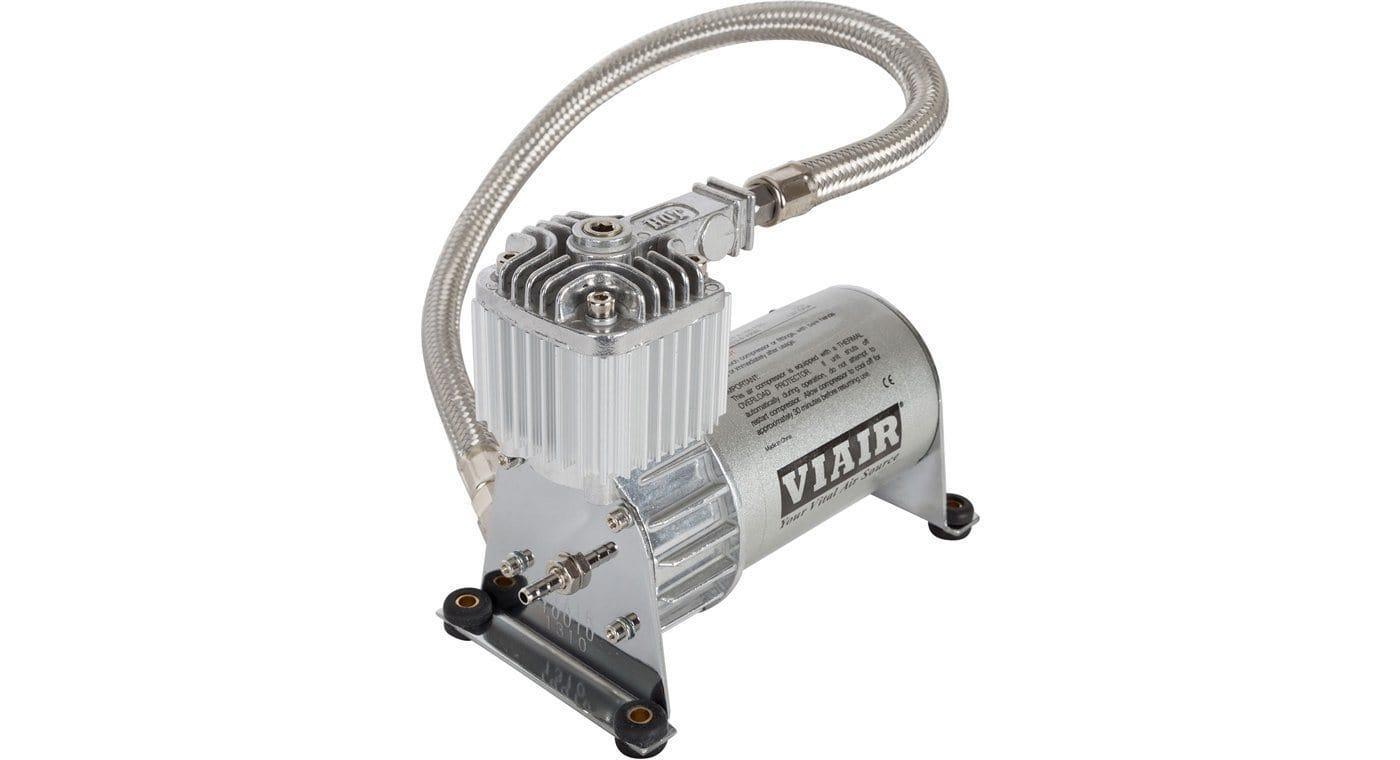

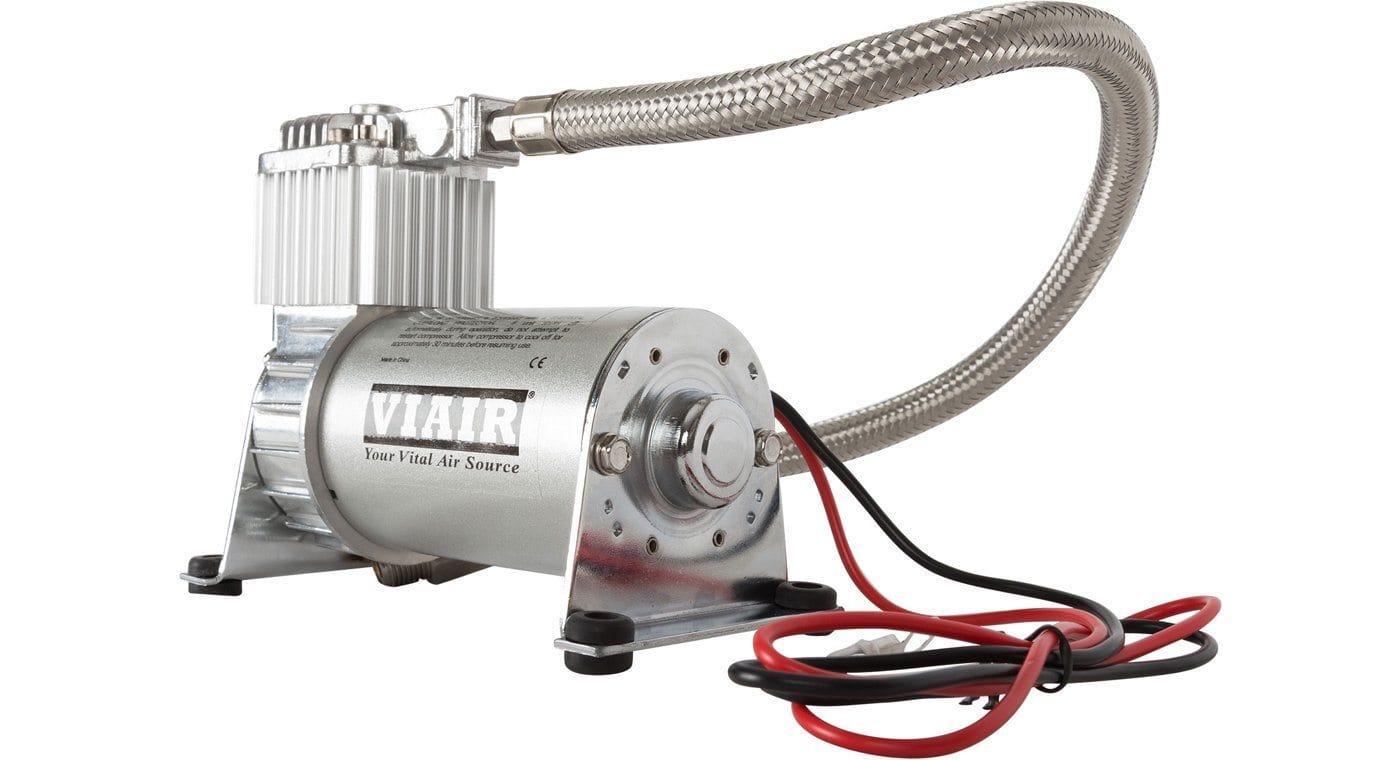

Viair 100C Silver Air Compressor
Viair 100C Silver Air Compressor is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Viair 100C Silver Air Compressor
Viair 100C Silver Air Compressor is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
A SILVER BULLET OF AIR.
Looking for a pint-sized powerhouse that delivers big-time air compression? Meet the Viair 100C Silver Air Compressor! With a lightning-fast recharge time of only 35 seconds, this baby can fill up your 1-gallon tank quicker than you can say "compressed air." Plus, it comes with a one-and-a-half-foot-long metal-braided leader hose and rubber-isolated mounting feet that make installation a breeze. So go ahead and give your ride the air it deserves with the Viair 100C!
**To ensure the longevity and proper function of the air compressor, it is recommended to install it in a sheltered area, away from exposure to weather conditions and the elements.**
- Non-Weather Resistant
- Permanent Magnetic Motor
- Oil-Less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Stainless Steel 1/4" Braided Leader Hose
- Remote Mountable Intake Filter Assembly
- Insulated Wiring with Connectors
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.27 | 9 | 0 | 36.0 | 9 |
| 10 | 0.90 | 10 | 1.0 | 25.0 | 10 |
| 20 | 0.85 | 11 | 2.0 | 22.5 | 11 |
| 30 | 0.79 | 11 | 3.0 | 21.0 | 12 |
| 40 | 0.76 | 12 | 4.0 | 20.0 | 13 |
| 50 | 0.72 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.71 | 13 | 6.0 | 17.0 | 12 |
| 70 | 0.67 | 13 | 7.0 | 15.0 | 12 |
| 80 | 0.64 | 12 | 8.0 | 13.7 | 12 |
| 90 | 0.59 | 12 | 9.0 | 12.3 | 12 |
| 100 | 0.55 | 12 | |||
| 110 | 0.52 | 12 | |||
| 120 | 0.48 | 12 | |||
| 130 | 0.45 | 12 |
* Supply Voltage: 13.8 Volts
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 50 sec. (± 05 sec.) |
| 85 to 105 PSI | 10 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 00 sec. (± 05 sec.) |
| 90 to 120 PSI | 17 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 25 sec. (± 05 sec.) |
| 0 to 120 PSI | 2 min. 00 sec. (± 10 sec.) |
| 90 to 120 PSI | 35 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts

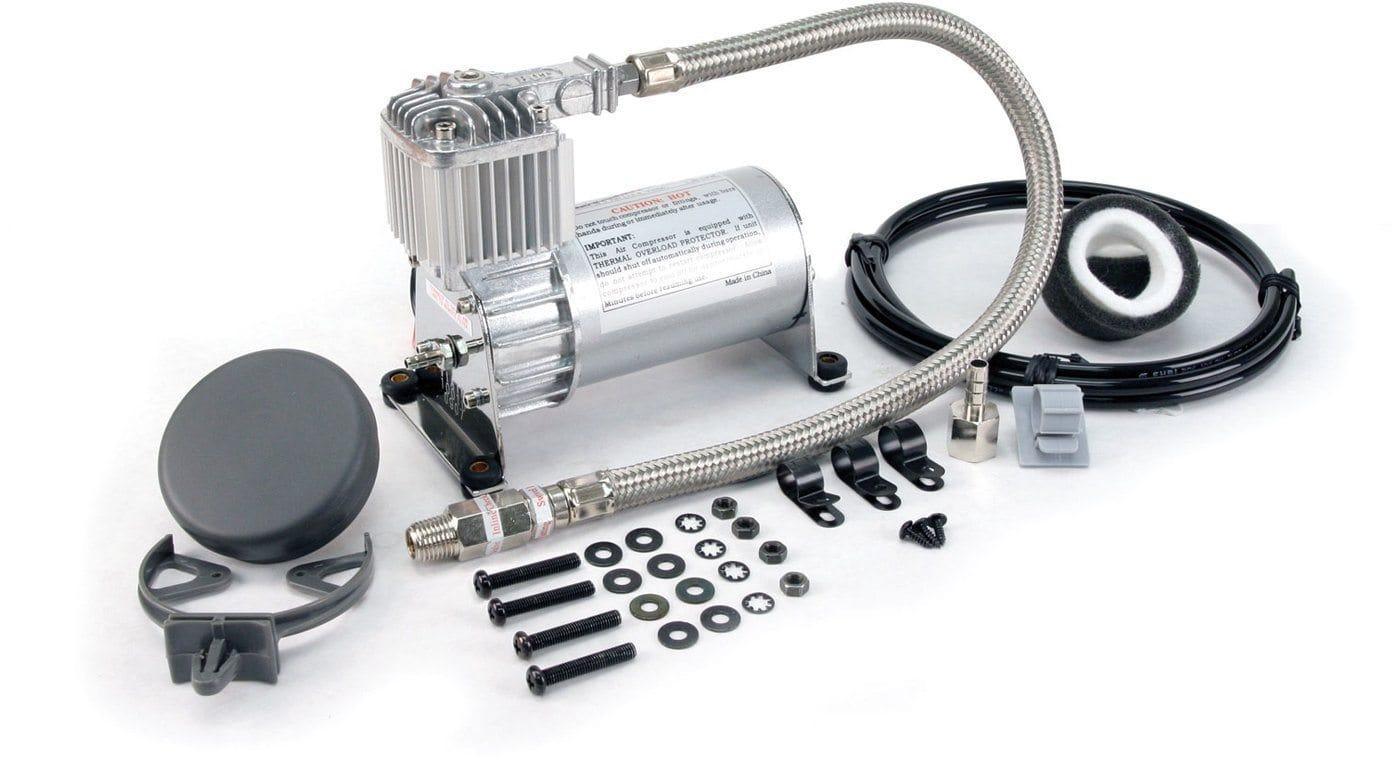

- Viair 100c 12 Volt Air Compressor
- 1/4" NPT Braided Leader Hose & Check Valve
- Remote Mountable Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year Manufacturer's Defect Warranty
- Mounting Hardware
| SPECIFICATIONS | |
|---|---|
| Part Number | AC-100 |
| Manufacturers Part Number | 10010 |
| Voltage | 12 Volts DC |
| Max Amperage | 14 Amps |
| Maximum Duty Cycle | 15% @ 100 PSI |
| Maximum Pressure | 130 PSI |
| Max Tank Size | 1 Gallon |
| CFM | 1.27 CFM |
| Length | 6.35″ (161.3 mm) |
| Width | 3.3″ (83.4 mm) |
| Height | 4.9″ (125.7 mm) |
| Weight | 3.50 lb (1.59 Kg) |
-
