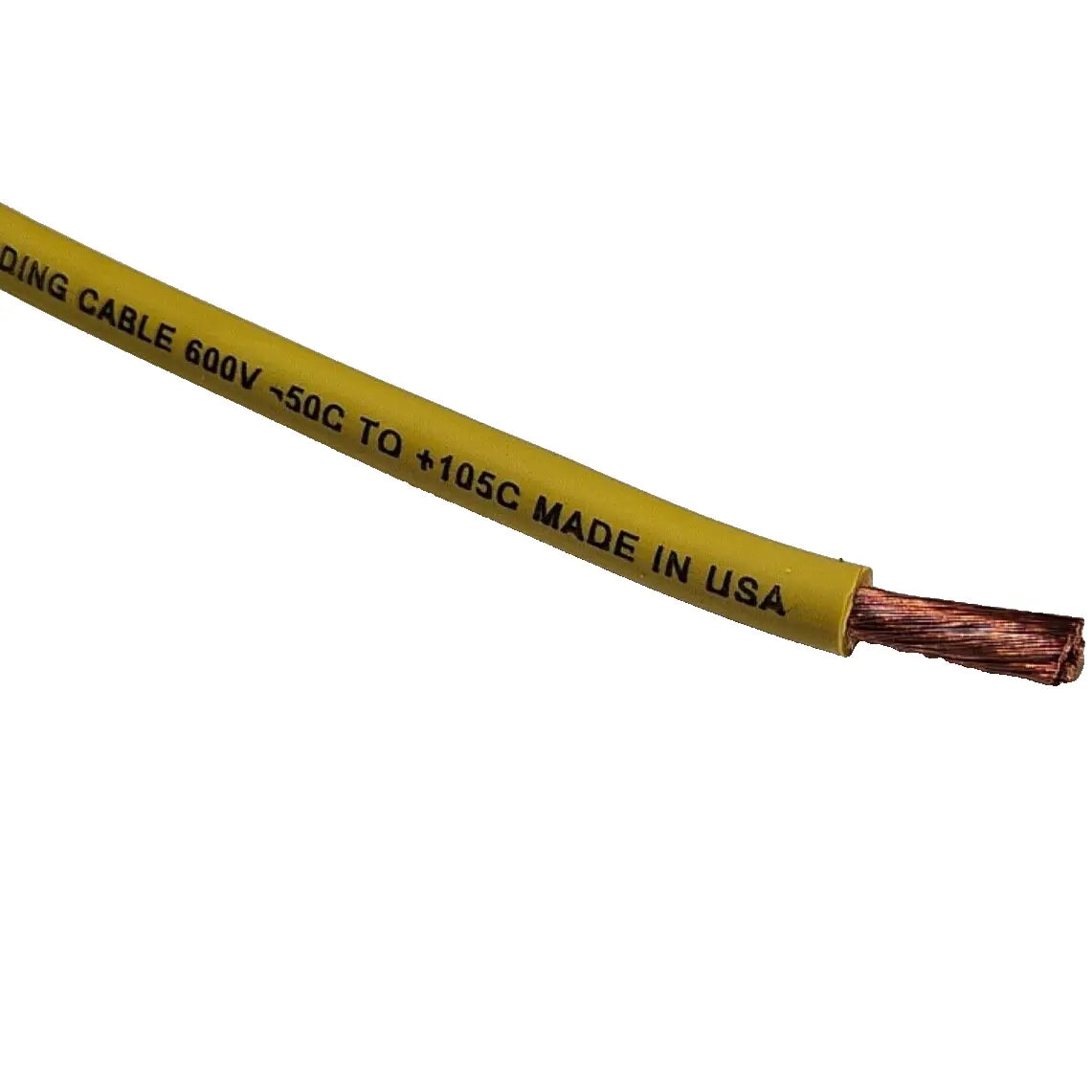

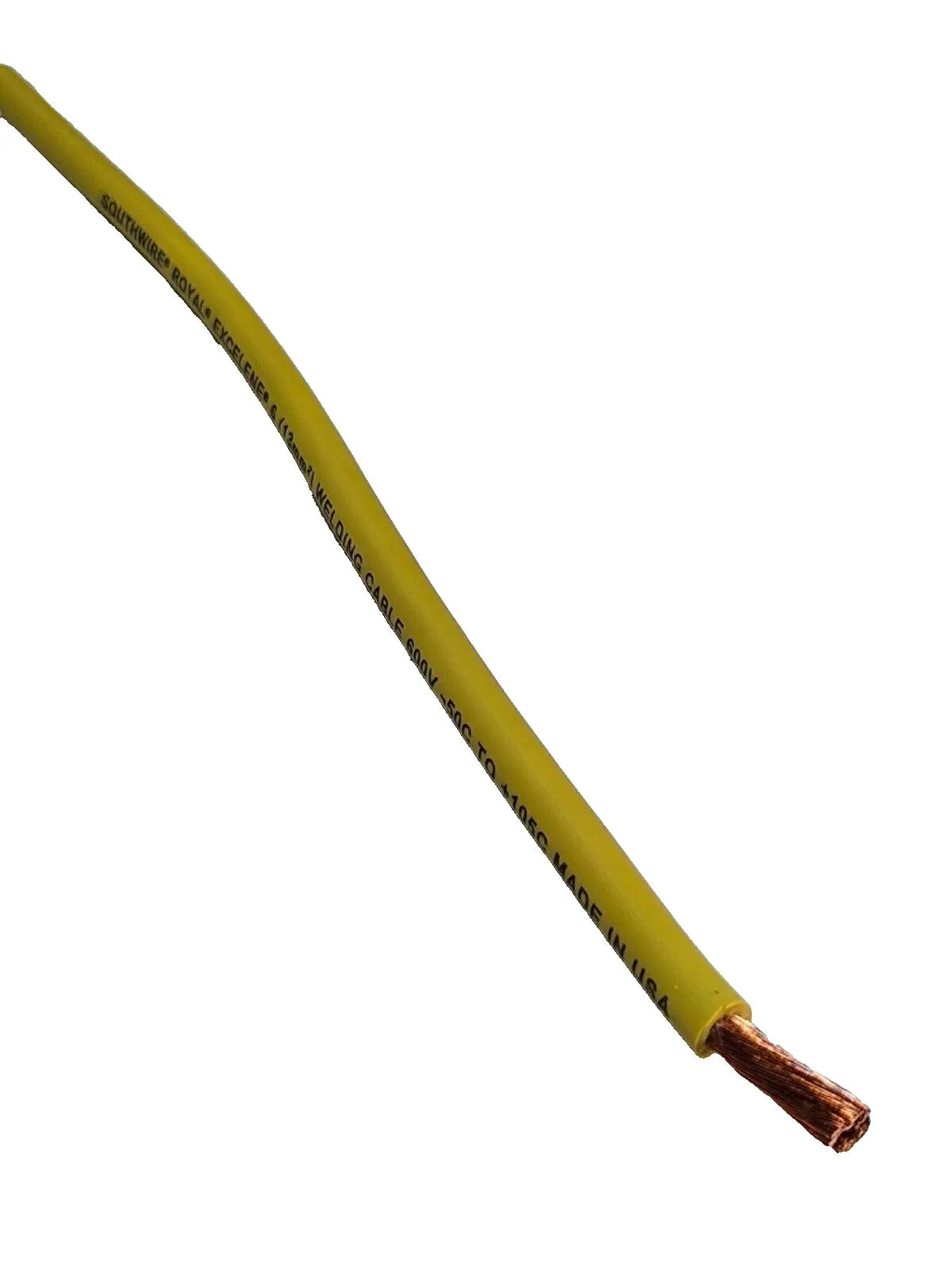

10 FT 6 gauge AWG EXCELENE 105c COPPER BATTERY WELDING CABLE YELLOW MADE IN USA
10 FT 6 gauge AWG EXCELENE 105c COPPER BATTERY WELDING CABLE YELLOW MADE IN USA is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
10 FT 6 gauge AWG EXCELENE 105c COPPER BATTERY WELDING CABLE YELLOW...
10 FT 6 gauge AWG EXCELENE 105c COPPER BATTERY WELDING CABLE YELLOW MADE IN USA is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
CONSTRUCTION: This cable consists of one bare copper
conductor with integral insulation and jacket.
APPLICATION: Welding Cable Applications
Construction Parameters:
Conductor #6 Bare Copper
Stranding 7x37/0.0098 (13mm2)
Insulation Material EPDM
Separator/Wrap Tape Separator
Insulation Thickness 0.065'' Nom.
Insulated Conductor Diameter 0.305" Nom.
Number of Conductors 1
Electrical Properties:
Temperature Rating -50OC to 105OC
Operating Voltage 600V Max
DC Resistance per Conductor @ 20OC 0.440 Ohms/1M
Features:
Temperature Rating -50° C to 105° C
Ethylene Propylene Rubber (EPR)
Annealed stranded bare copper per ASTM B-172
Foot marked for easy length identification
Ozone, sun, weather, and chemical resistant
Applications:
May used in accordance with National Electric Code Article
630 Electric Welders.
Designed for use as welding leads from the secondary side of
the power source - typical of arc welders and welding
generators
Additional uses may include flexible lead cable; electrode
to welder unit, battery cables, and temporary and permanent
lead cables
Industry Approvals:
ROHS Compliant
