07-18 GM 1500 2WD Bolt-on Suspension Kit by LSK
07-18 GM 1500 2WD Bolt-on Suspension Kit by LSK - none / raw is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
LSK Is Proud To Introduce The 2007-2018 GM 1500 2wd Bolt On Kit. Our Bolt On Kit Uses A Set Of Custom Upper & Lower Control Arms, Fully Fabricated Spindle, Complete Heimed Steering From Rack Out, Fabricated Coil Bucket Adapters & Weld On Cam Lockouts To Vastly Improve The On & Off Road Ride Quality. This Kit Is Best Suited For Those Who Use Their Vehicle As An Occasional Off Road Rig Or One That Sees Majority Street Use.
PERFORMANCE SPECS
- Wheel Travel – Averages 17” Of Useable Wheel Travel ( Depending On Limit Strap / Bump Stop / Shock Configuration)
- Wheel Base: Extended 1.25″ Forward
- Track Width: Extended 4.5″ On Each Side
- Recommended Tire Size: 37″
- Recommended Wheel: 17 x 9″ w/4.5″ Backspacing (0mm Offset)

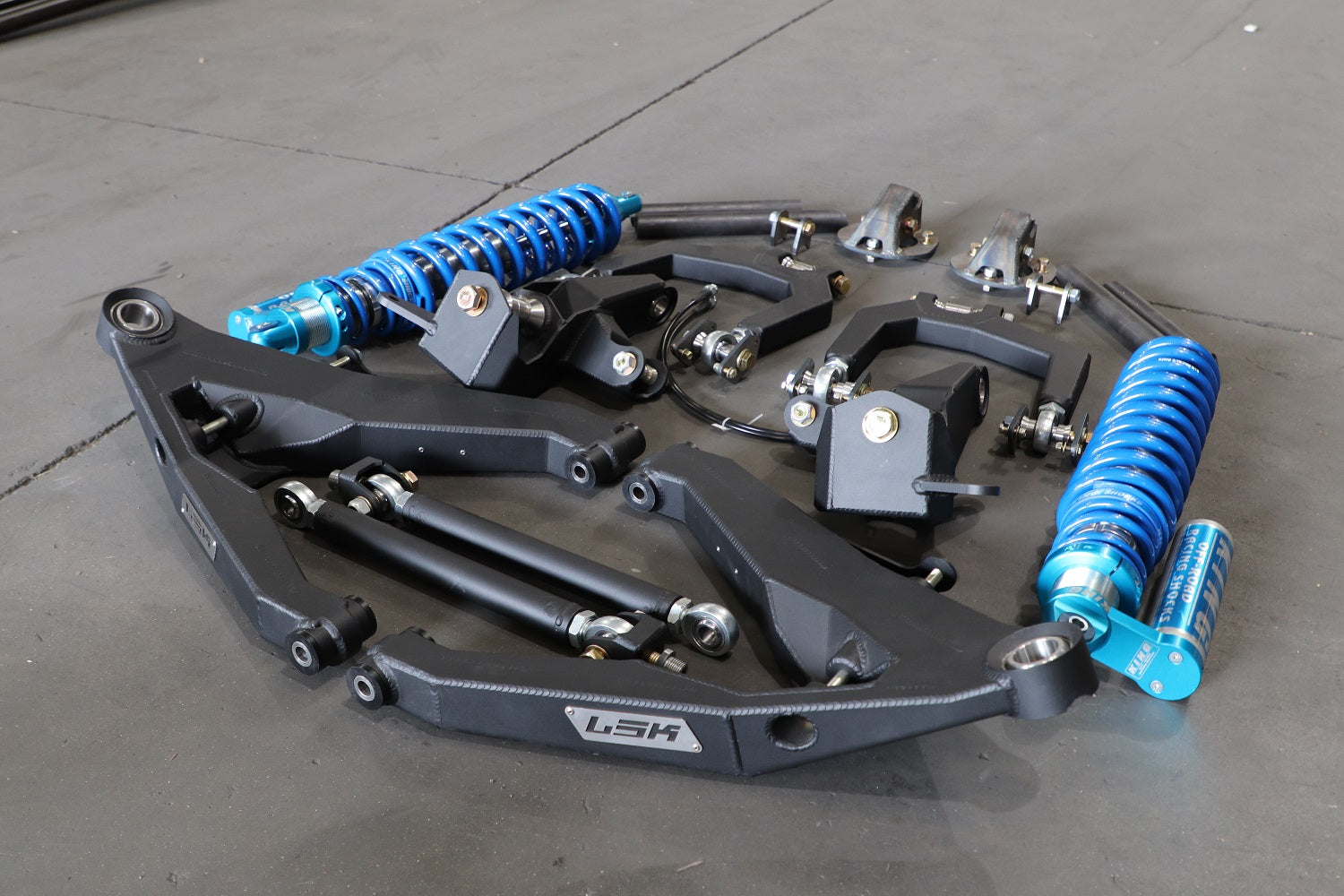

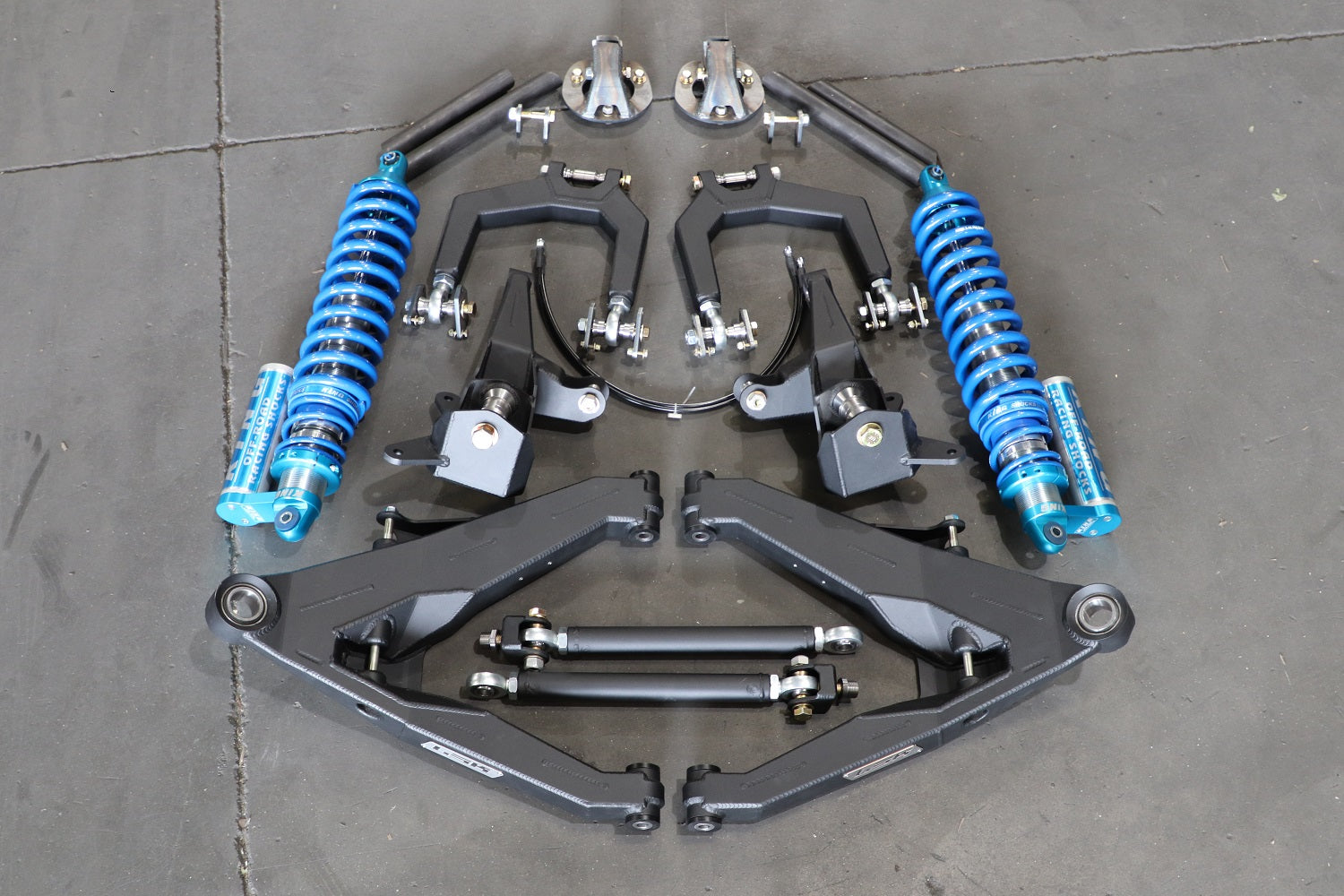

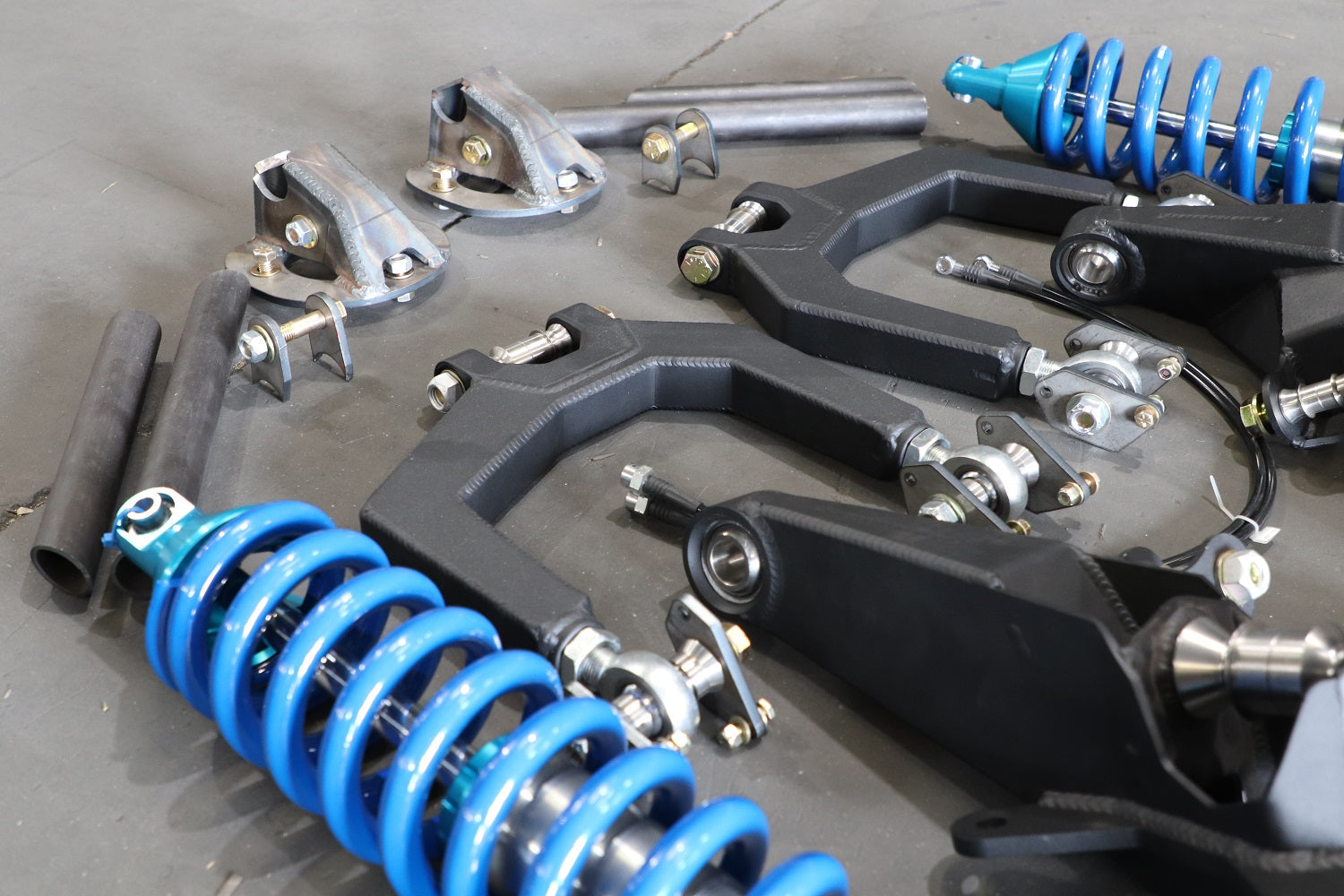

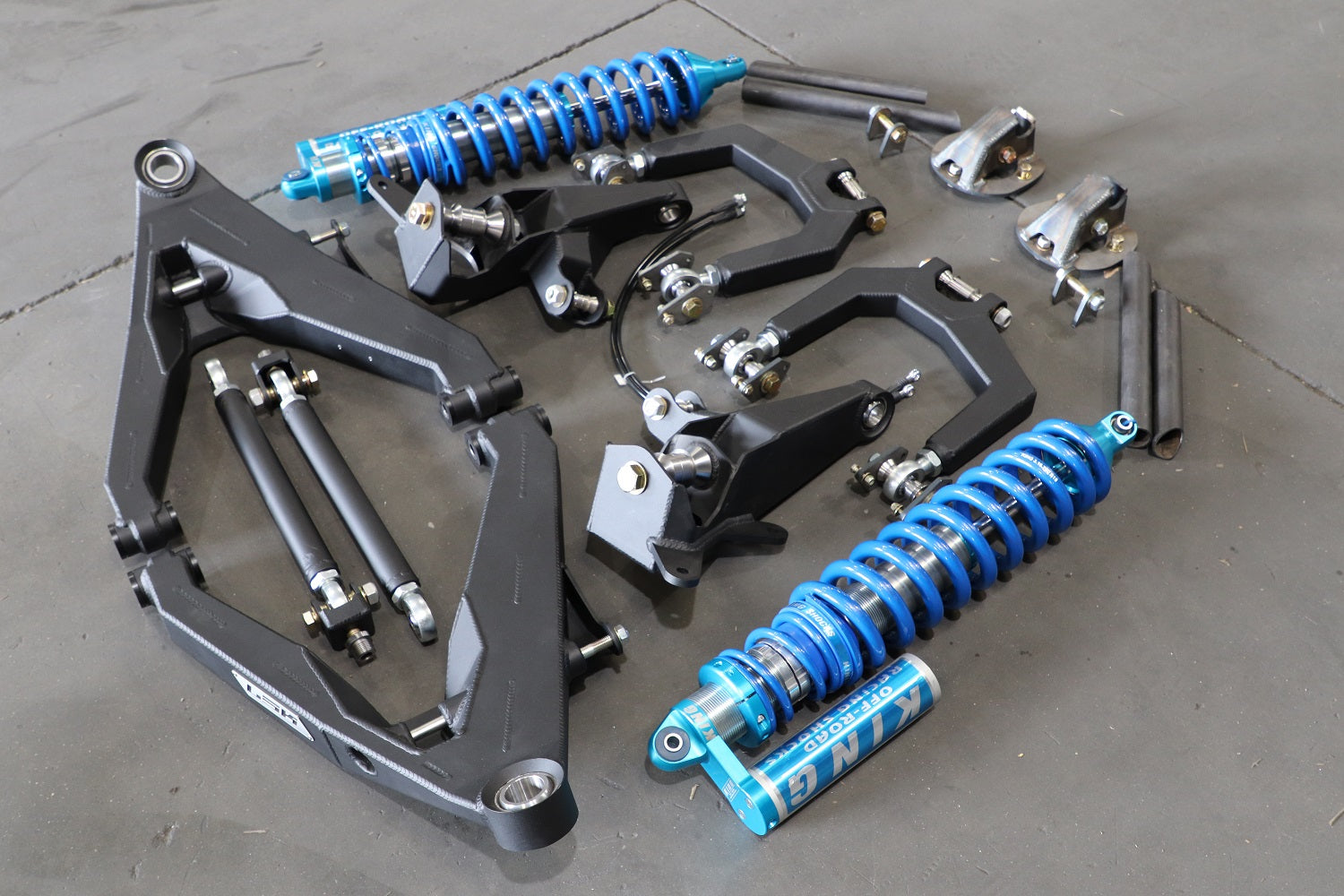

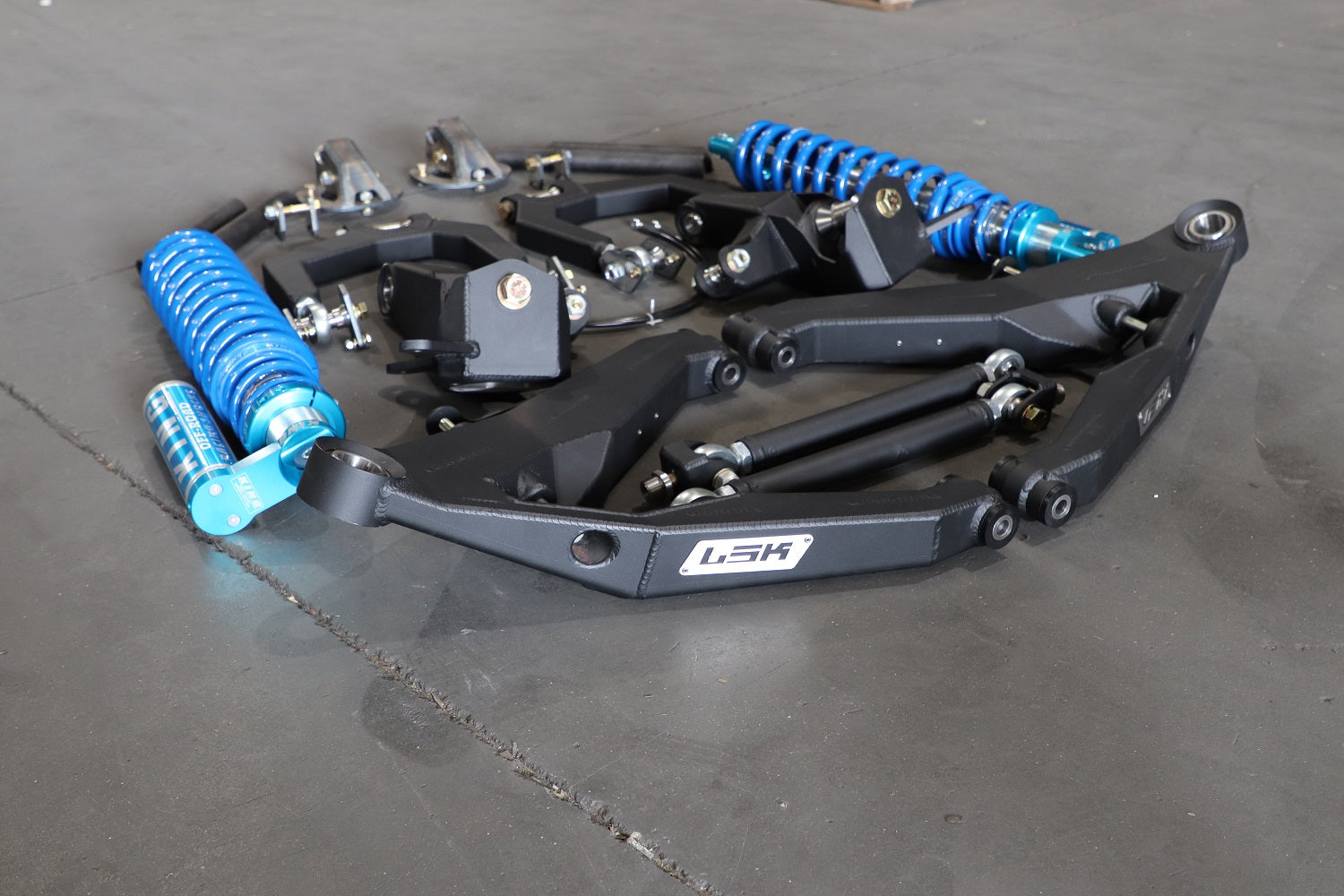

INCLUDES
- Upper Arms
- Lower Arms
- Spindles
- Heimed Tierods w/ Clevis Adapters
- Fabricated Coilover Adapters
- Cam Lockout Plates
- Grade 8 Hardware
REQUIRES

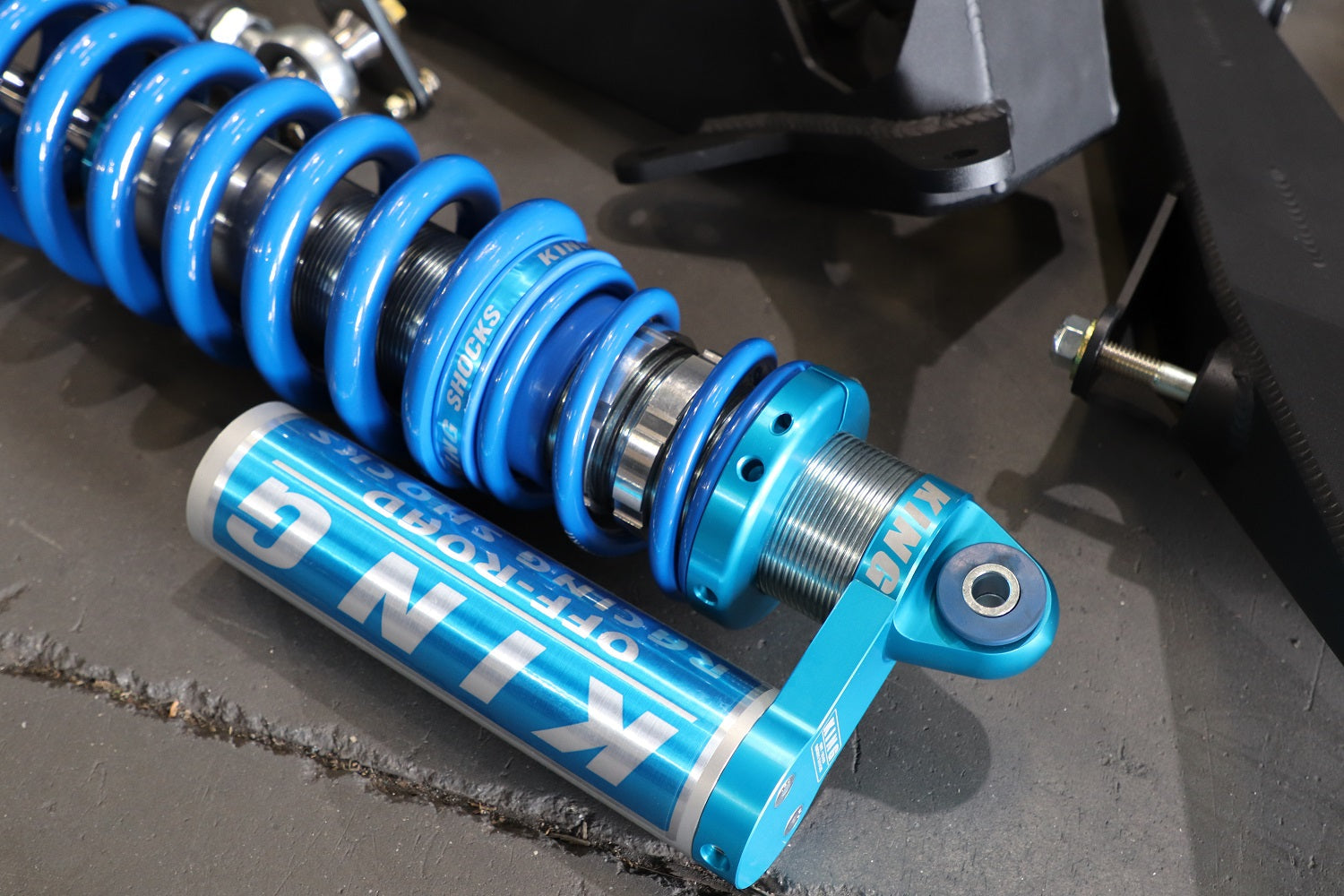

- 10″ 2.5″ Piggyback Coilovers – These Are NOT Included In The Kit Above
- Welding Is NOT Required – This Is A Bolt On System, However If You Wish To Add Bypasses, Bypass Hoops Must Be Welded Onto The Coilover Adapter And Frame For Installation
- Extended Brake Lines (Minimum 33″ Line End To End)
- Possible Extension Of Factory ABS Sensor Line (Depends On Wire Routing)
- Limit Straps – Recommend 8″ Limit Strap With Adjustable Clevis Kit (Can be Purchased In The Builders Components Section of Our Store)
OPTIONAL UPGRADES
- Extended Brake Lines – Stainless Steel Braided Brake Lines With Black Covers Specifically Engineered For This Application
- Bypass Hoops – Our Pre-coped Bypass Hoops Orient Off Of The Coilbucket Adapter And Weld To A Lower Portion Of The Frame -Shock Tabs Come Uninstalled To Aid Installers Of Positioning The Bypasses For Clearancing – Includes All Hardware
- Powdercoat Finish – Black Powdercoat Or Raw Finish (Note: Raw Kits Ship Unassembled)
IMPORTANT NOTES
- WHILE WEBSTORE MAY DISPLAY AN IN STOCK STATUS, WEBSTORE DOES NOT TRACK KIT INVENTORY IN REAL TIME – PLEASE CONTACT OUR SALES TEAM FOR CURRENT LEAD TIME ON KIT COMPONENTS
- Coilovers And Bypasses Are Custom Ordered And Not Always Stocked Per Application. Please Email Our Sales Team For Current Lead Time On Shock Packages
- Powdercoat Finish – Black Powdercoat Or Raw Finish (Note: Raw Kits Ship Unassembled)
- Upper Control Arm: Use 7/8″-14 Rod Ends – Replacement Rod Ends Can Be Purchased Through Our Online Store Under Builders Components
- Spindles: Use A 1.00″ FK Uniball (PN: WSSX16T) And Replacements Can Be Purchased Through Our Online Store Under Builders Components
- Lower Control Arms: Use A 1.50″ FK Uniball (PN: COMH24T) & LSK 1.75″ Delrin Bushings. Replacements Can Be Purchased Through Our Online Store Under Builders Components
- Permanent Frame Modification – Cam Lockout Plates Are Welded Into The Factory Cam Tab Location
