03-current Ram FFS Brand Heavy Duty Traction Bar Kit

   These parts are to add a hardcore, heavy duty, no rattle and good looking traction bar set for your 03-current leaf spring Ram truck. (Built to match our radius long arm for the 03-13 and also (our 4 link long arm).
   We’ve seen all kinds of weak and undersized parts and ugly brackets, this is not that kit. Tubing available in 4’, 5’ or 6’ for cut to length perfect fit.  5 feet covers most installs. Pre made link (custom length requests ok) options available below.

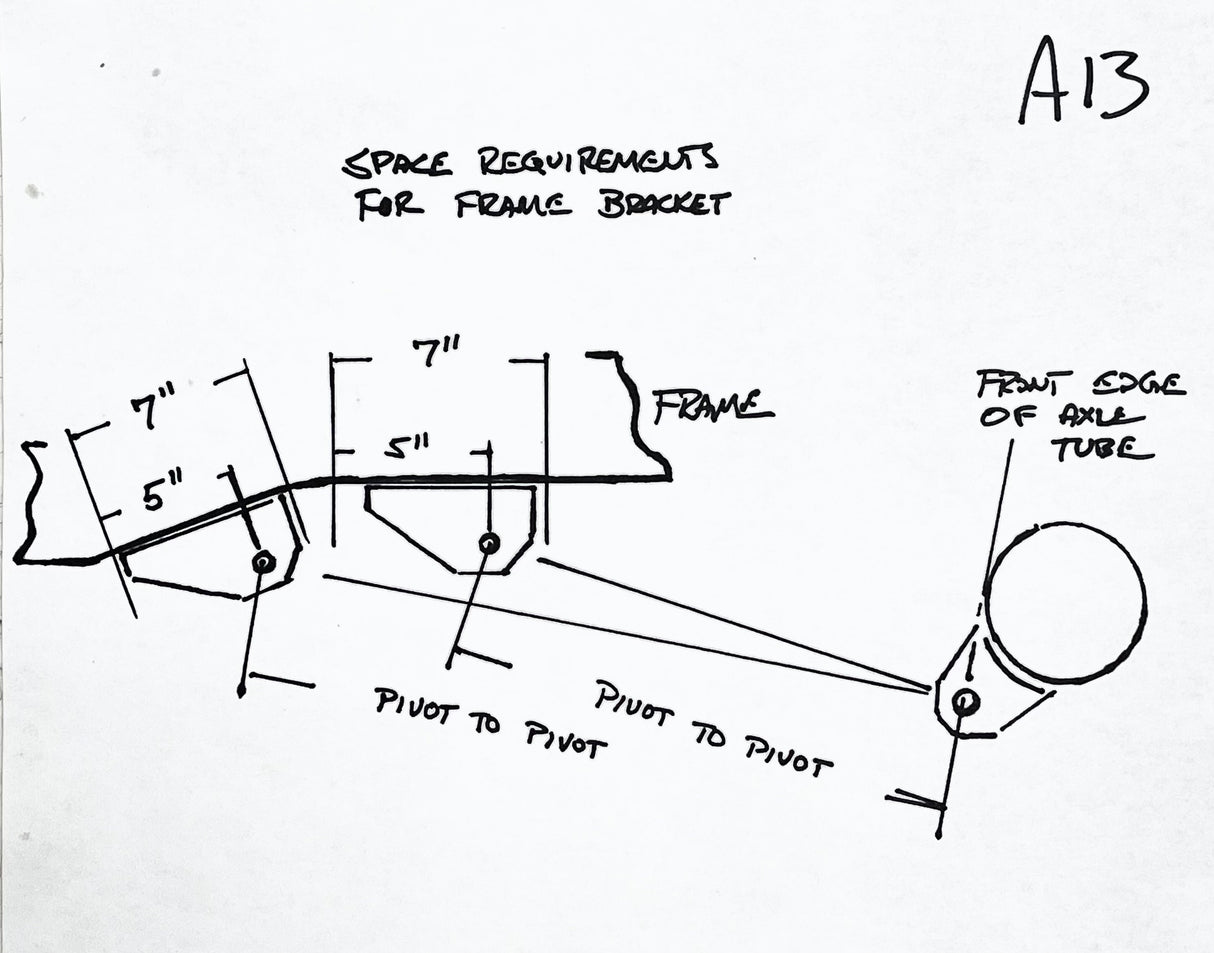

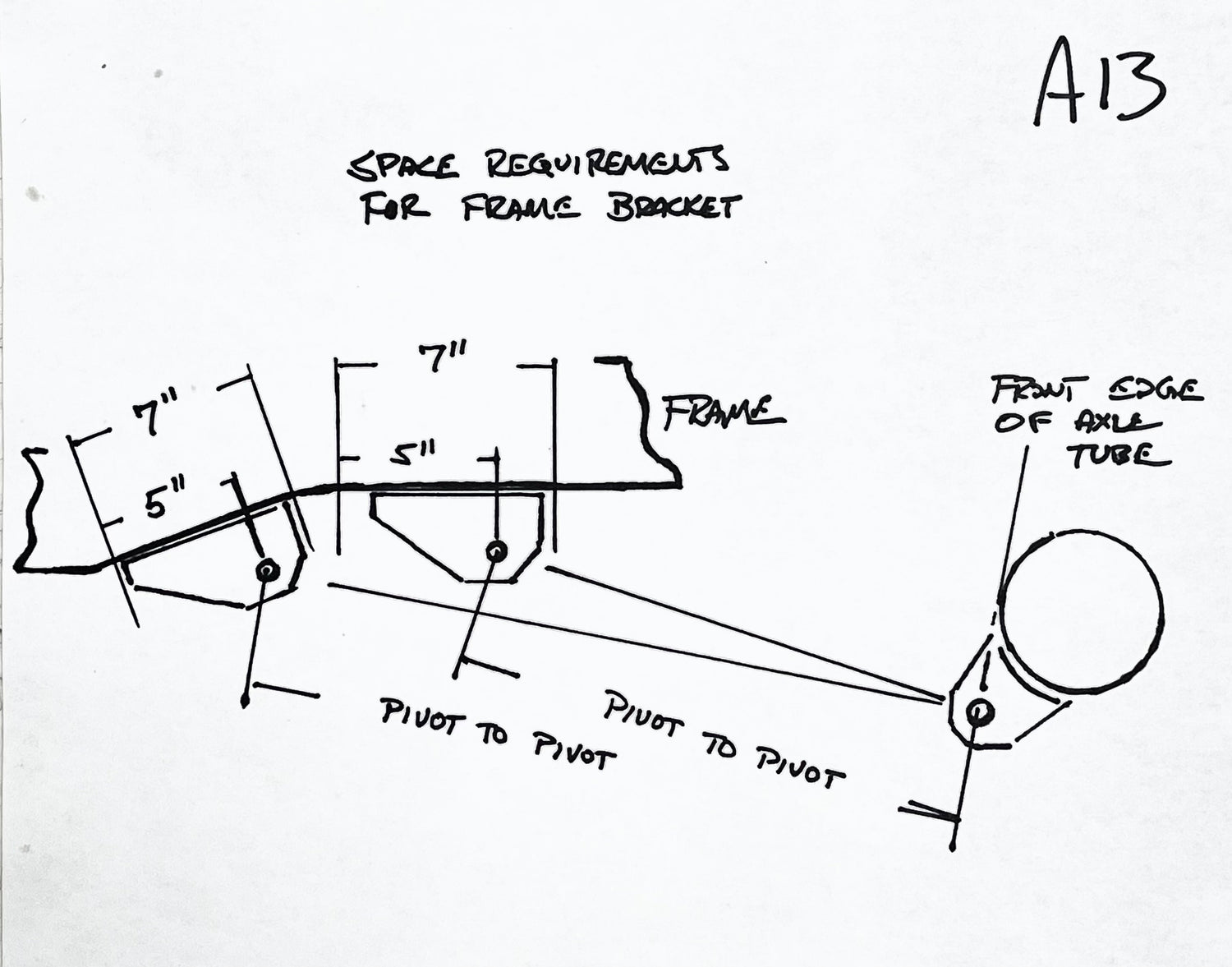

The various tubing lengths available are not indicative of fitness for a particular application. Some preliminary measuring from the axle tube; to a suitable mounting point on the frame IS HIGHLY RECOMMEDED.

Pre welded/powdered link lengths have been tested on nothing. See above. We will build to suit. We assume no responsibility for fitment.

If you have had problems with the rear axle wandering and wheel hopping under the heavy torque, be it in the sand, dirt, or putting down a thick smokey burnout on pavement, this kit is a solution for you. It features a pair of arms that firmly locate your axle, and help you keep your tires firmly planted. This will let you put all the traction you have to the ground without giving up any suspension travel or ground clearance.
   Even without traction problems, these with firmly locate you rear axle and prevent rear wander due to road imperfections, not something you likely thought about but would notice if you later remove your bars. Remarkable difference.
   These work great in conjunction with a rear lift block, increasing the traction bars leverage against axle wrap, making a strong triangle between them, your lift block and the leaf spring acting as an upper arm.

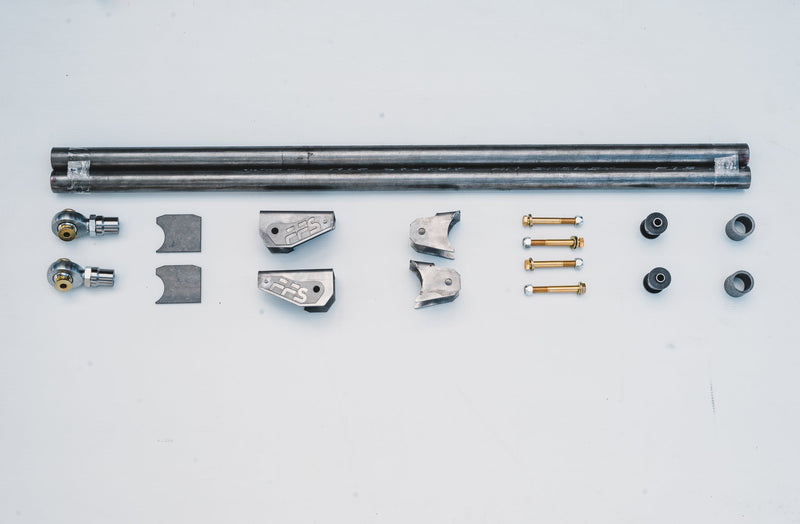

KIT INCLUDES: (click for separate availability)

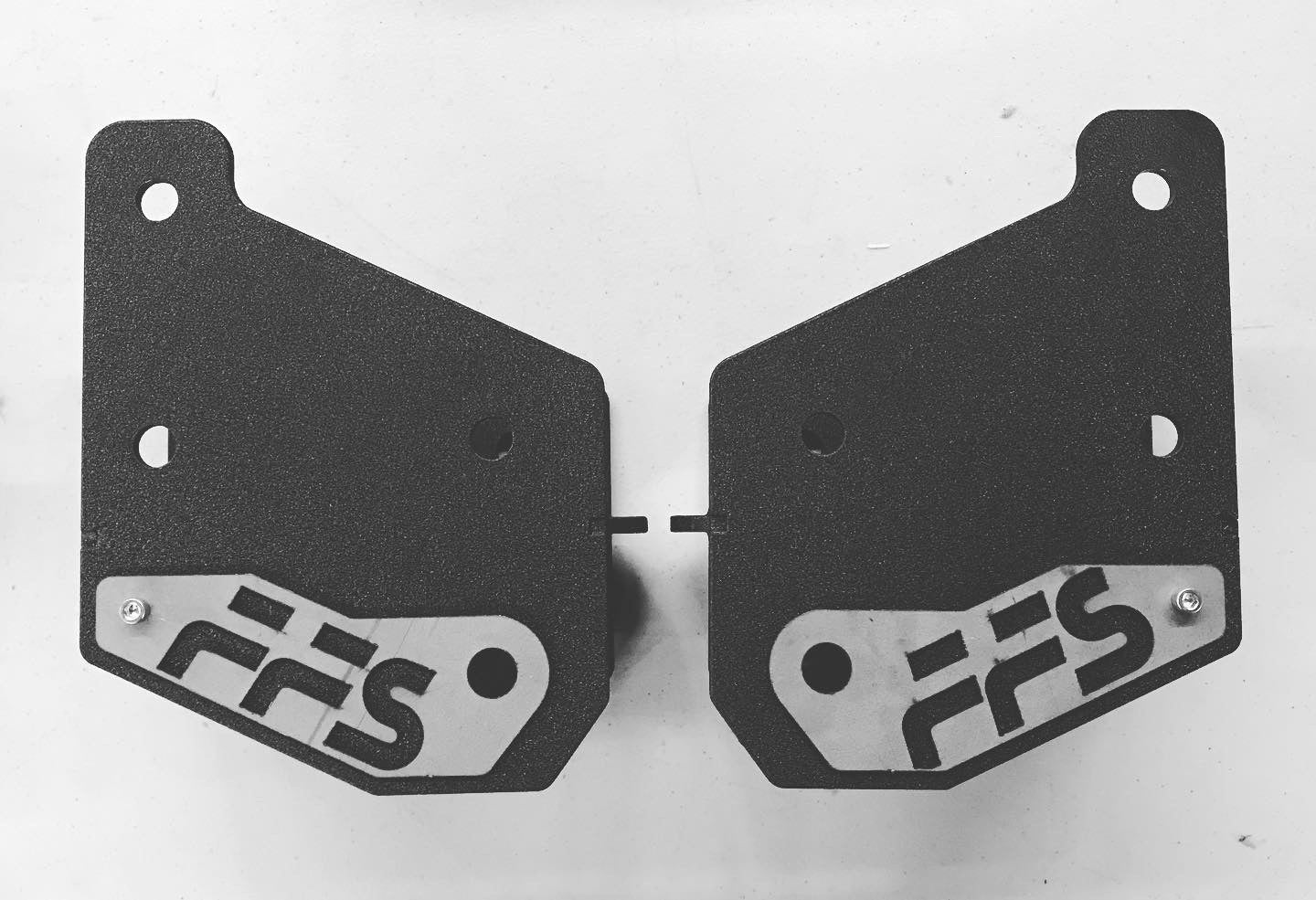

(1) Pair of our bolt on FFS overlay badge frame brackets

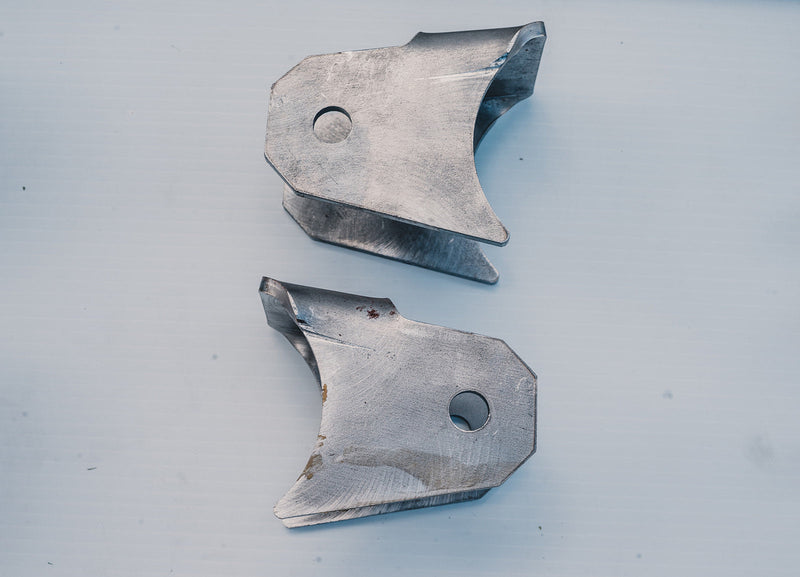

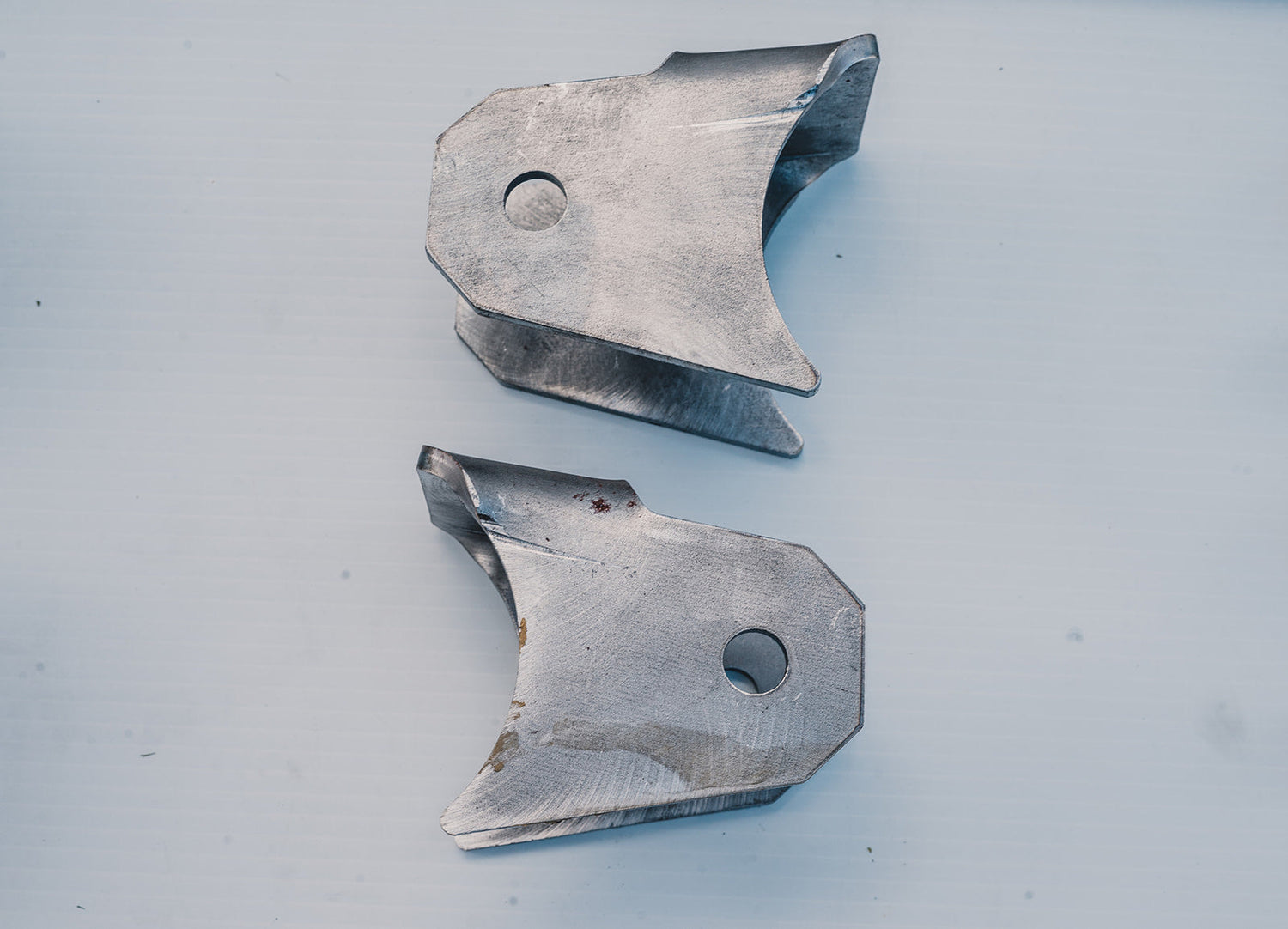

(1) Pair of our FFS 4” diameter weld on axle mount brackets

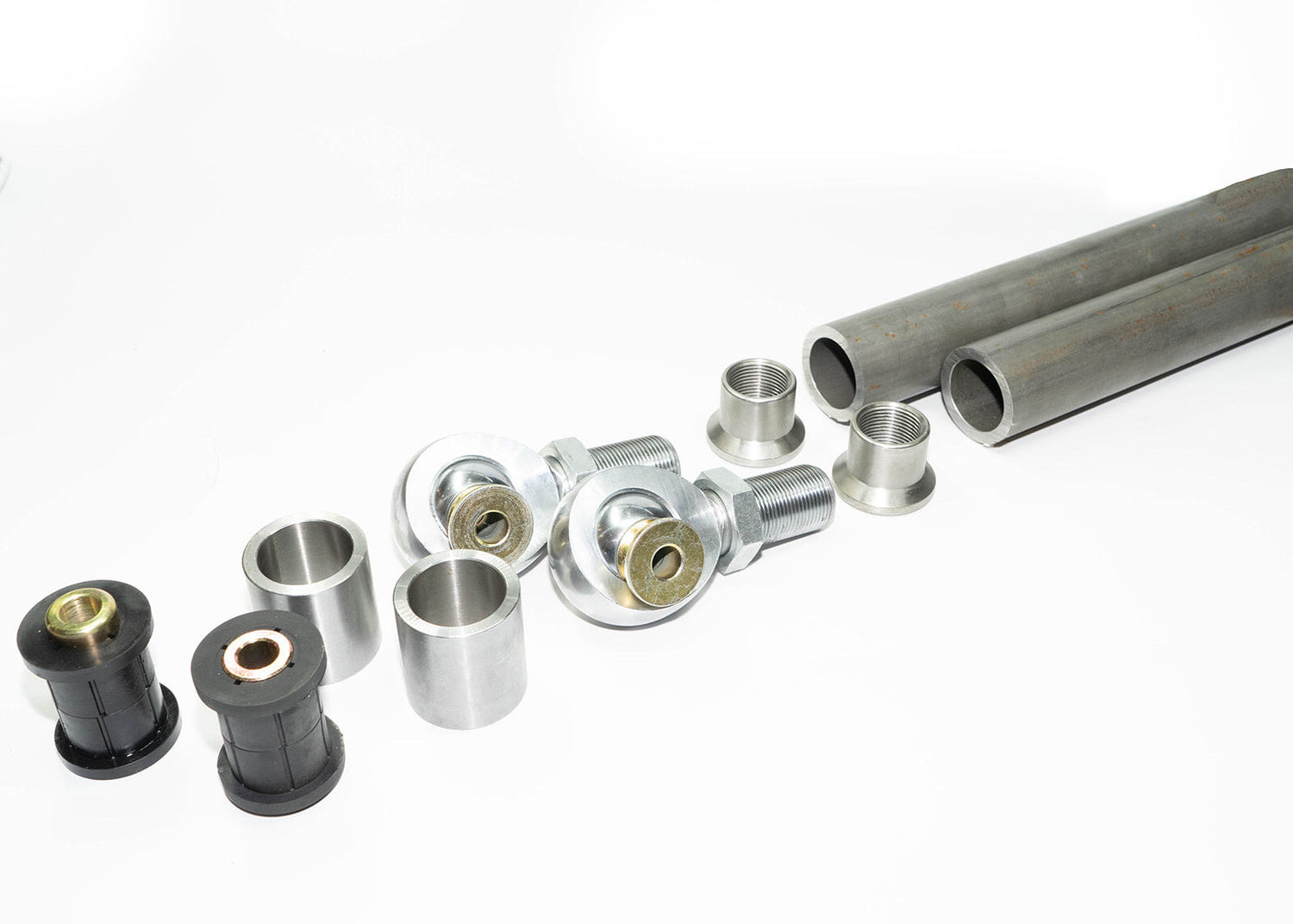

(2) Bushed DOM sleeves 2-5/8" wide for 9/16" bolt
(2) 1.25" Heat/Cryo treated Heim joints with misalignment spacers for 9/16" bolts
(4) 9/16" x 4.5" Grade 8 fine thread bolt sets
(2) sticks of 2”  tube in chosen length.

These are also available in pre welded finished links. The axle brackets will still need to be welded to the rear axle.

We can provide a standard black wrinkle powder or custom color (color option link attached) upon request.

If you are local or not we can complete the install here at the shop. Call for Shop Labor Quote 740.939.0073

If you need further instructions on installation check out our Youtube INSTRUCTIONAL VIDEO

Installation partially assisted by Tap Flex Structural Fastener Thread Forming Bolt.

*Meets Grade 5 ASTM A449 strength and ductility standards.

*Drill Size 15/32

*Seating Torque 75 ft/lbs

In 1/8” Steel;

Shear strength  4773 lbs

Thread pull-out strength 3668 lbs (doubles with another 1/16” of material thickness)

Ford Chevy Dodge Cummins Powerstroke Duramax
